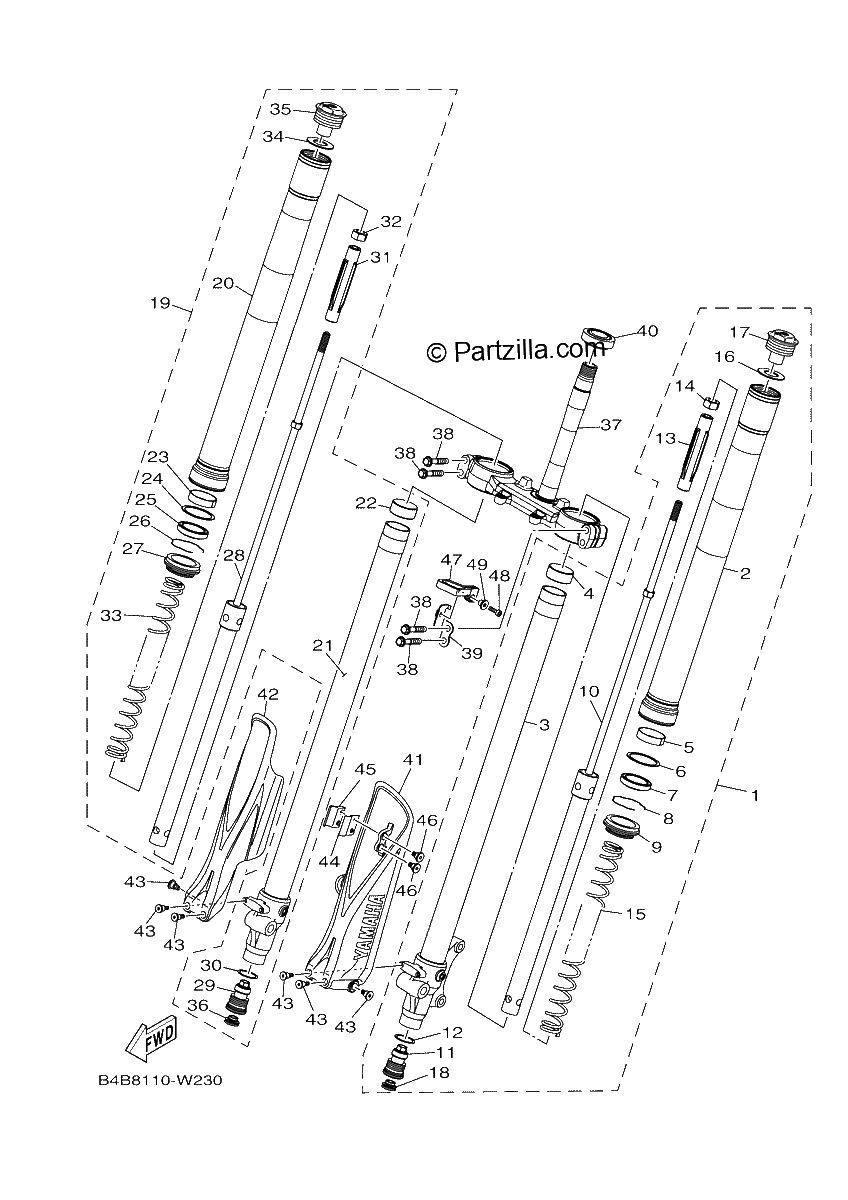

FRONT FORK
⚠️ Verificar CantidadesRevisa el diagrama cuidadosamente. Si tu ensamble requiere múltiples unidades de un mismo número (ej: 6 tornillos idénticos), asegúrate de ajustar la cantidad de piezas manualmente antes de añadirlas al carrito.
Repuestos
#1
FRONT FORK ASSY (L.H)
$804.99¢402 494
#2
TUBE, OUTER 2
$554.94¢277 472
#3
INNER TUBE COMP.2
$277.46¢138 730
#4
PISTON, FRONT FORK
$29.57¢14 783
#5
METAL, SLIDE 1
$13.90¢6 952
#6
WASHER, SPRING UPPER
$8.39¢4 198
#7
OIL SEAL
$20.35¢10 177
#8
RING, SNAP
$5.21¢2 605
#9
SEAL, DUST
$21.38¢10 689
#10
CYLINDER COMP, FRONT FORK
$277.46¢138 730
#11
VALVE COMP
$198.18¢99 090
#12
GASKET
$10.43¢5 215
#13
SEAT, SPRING UPPER
$32.53¢16 267
#14
NUT
$0.83¢414
#15
SPRING, FRONT FORK (K=2.8N/
$54.31¢27 157
#16
WASHER, SPRING UPPER
$5.40¢2 702
#17
BOLT, CAP
$180.22¢90 108
#18
PLUG, HOLE
$4.54¢2 271
#19
FRONT FORK ASSY (R.H)
$804.99¢402 494
#20
TUBE, OUTER 2
$554.94¢277 472
#21
INNER TUBE COMP.1
$277.46¢138 730
#22
PISTON, FRONT FORK
$29.57¢14 783
#23
METAL, SLIDE 1
$13.90¢6 952
#24
WASHER, SPRING UPPER
$8.39¢4 198
#25
OIL SEAL
$20.35¢10 177
#26
RING, SNAP
$5.21¢2 605
#27
SEAL, DUST
$21.38¢10 689
#28
CYLINDER COMP, FRONT FORK
$277.46¢138 730
#29
VALVE COMP
$198.18¢99 090
#30
GASKET
$10.43¢5 215
#31
SEAT, SPRING UPPER
$32.53¢16 267
#32
NUT
$0.83¢414
#33
SPRING, FRONT FORK (K=2.8N/
$54.31¢27 157
#34
WASHER, SPRING UPPER
$5.40¢2 702
#35
BOLT, CAP
$180.22¢90 108
#36
PLUG, HOLE
$4.54¢2 271
#37
UNDER BRACKET COMP.
$742.89¢371 444
#38
BOLT 1
$5.91¢2 956
#39
GUIDE, CABLE
$23.67¢11 833
#40
BEARING TAPRD
$69.70¢34 851
#41
PROTECTOR 1
$20.47¢10 235
#42
PROTECTOR 2
$20.47¢10 235
#43
BOLT
$3.61¢1 805
#44
CLAMP
$18.14¢9 068
#45
CLAMP
$24.83¢12 414
#46
BOLT
$3.61¢1 805
#47
GUIDE, CABLE
$10.76¢5 382
#48
BOLT, HEXAGON SOCKET HEAD
$2.71¢1 357
#49
Collar
$2.91¢1 455
