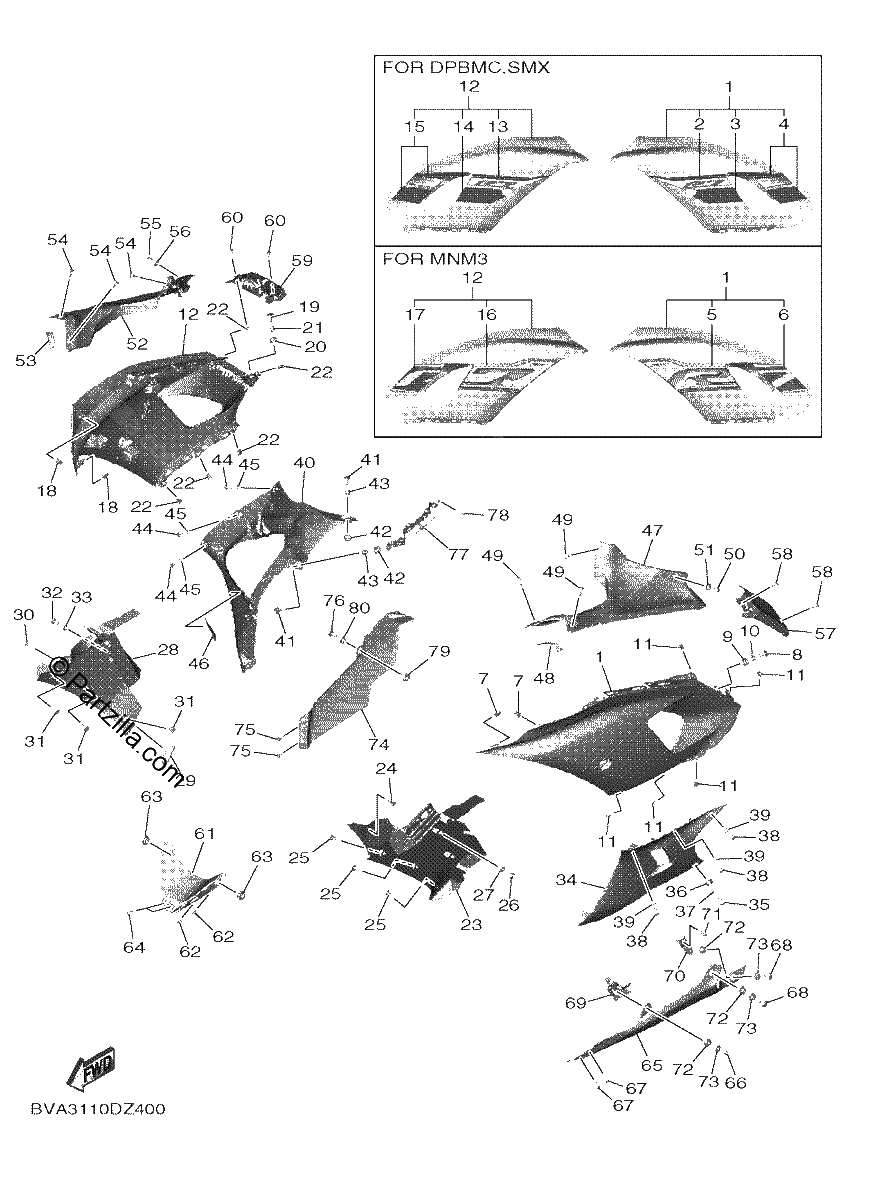

COWLING 2
⚠️ Verificar CantidadesRevisa el diagrama cuidadosamente. Si tu ensamble requiere múltiples unidades de un mismo número (ej: 6 tornillos idénticos), asegúrate de ajustar la cantidad de piezas manualmente antes de añadirlas al carrito.
Repuestos
#1
PANEL ASSY 1 (DEEP PURPLISH BLUE METALLIC C) *{UR FOR DPBMC}*
$203.41¢101 706
#2
GRAPHIC 1 (DEEP PURPLISH BLUE METALLIC C) *{UR FOR DPBMC}*
$47.29¢23 644
#3
GRAPHIC 3 (DEEP PURPLISH BLUE METALLIC C) *{UR FOR DPBMC}*
$28.27¢14 133
#4
GRAPHIC 5 (DEEP PURPLISH BLUE METALLIC C) *{UR FOR DPBMC}*
$34.26¢17 129
#7
Clamp
$0.67¢333
#8
bolt
$3.68¢1 840
#9
GROMMET
$6.83¢3 415
#10
COLLAR
$6.83¢3 415
#11
NUT, SPRING
$1.15¢575
#12
PANEL ASSY 2 (DEEP PURPLISH BLUE METALLIC C) *{UR FOR DPBMC}*
$203.41¢101 706
#13
GRAPHIC 2 (DEEP PURPLISH BLUE METALLIC C) *{UR FOR DPBMC}*
$47.29¢23 644
#14
GRAPHIC 4 (DEEP PURPLISH BLUE METALLIC C) *{UR FOR DPBMC}*
$28.27¢14 133
#15
GRAPHIC 6 (DEEP PURPLISH BLUE METALLIC C) *{UR FOR DPBMC}*
$34.26¢17 129
#18
Clamp
$0.67¢333
#19
bolt
$3.68¢1 840
#20
GROMMET
$6.83¢3 415
#21
COLLAR
$6.83¢3 415
#22
NUT, SPRING
$1.15¢575
#23
PANEL, INNER 1
$34.55¢17 273
#24
RIVET
$8.10¢4 048
#25
RIVET
$2.13¢1 064
#26
BOLT, HEX. SOCKET BUTTON
$6.27¢3 134
#27
Collar
$7.93¢3 968
#28
PANEL, INNER 2
$25.20¢12 598
#29
DAMPER 2
$4.17¢2 087
#30
RIVET
$8.10¢4 048
#31
RIVET
$2.13¢1 064
#32
BOLT, HEX. SOCKET BUTTON
$6.27¢3 134
#33
Collar
$7.93¢3 968
#34
PANEL 3 (DEEP PURPLISH BLUE METALLIC C) *{UR FOR DPBMC}*
$163.56¢81 782
#35
bolt
$3.68¢1 840
#36
GROMMET
$6.83¢3 415
#37
COLLAR
$6.83¢3 415
#38
SCREW, TAPPING
$1.94¢972
#39
WASHER, PLATE
$6.70¢3 352
#40
PANEL 4 (DEEP PURPLISH BLUE METALLIC C) *{UR FOR DPBMC}*
$166.17¢83 087
#41
bolt
$3.68¢1 840
#42
GROMMET
$6.83¢3 415
#43
COLLAR
$6.83¢3 415
#44
SCREW, TAPPING
$1.94¢972
#45
WASHER, PLATE
$6.70¢3 352
#46
SEAT 1
$4.37¢2 185
#47
PANEL, CONSOLE 1 (DEEP PURPLISH BLUE METALLIC C) *{UR FOR DPBMC}*
$111.58¢55 792
#48
DAMPER, MUFFLER 2
$3.22¢1 610
#49
RIVET
$5.93¢2 967
#50
SCREW, TAPPING
$1.94¢972
#51
WASHER, PLATE
$6.70¢3 352
#52
PANEL, CONSOLE 2 (DEEP PURPLISH BLUE METALLIC C) *{UR FOR DPBMC}*
$98.31¢49 157
#53
DAMPER, MUFFLER 2
$3.22¢1 610
#54
RIVET
$5.93¢2 967
#55
SCREW, TAPPING
$1.94¢972
#56
WASHER, PLATE
$6.70¢3 352
#57
COVER 1
$8.87¢4 433
#58
SCREW, TAPPING
$2.08¢1 041
#59
COVER 2
$8.87¢4 433
#60
SCREW, TAPPING
$2.08¢1 041
#61
PANEL, INNER 3
$22.23¢11 115
#62
NUT, SPRING
$1.15¢575
#63
Grommet
$5.27¢2 633
#64
RIVET
$2.13¢1 064
#65
PROTECTOR 1 (DEEP PURPLISH BLUE METALLIC C) *{UR FOR DPBMC}*
$325.38¢162 691
#66
NUT, FLANGE
$0.86¢431
#67
SCREW, TRUSS HEAD TAPPING
$1.58¢788
#68
bolt
$3.68¢1 840
#69
BRACKET 1
$18.66¢9 332
#70
BRACKET 2
$8.31¢4 157
#71
Bolt, Flange
$6.88¢3 439
#72
GROMMET
$3.53¢1 765
#73
Collar
$5.16¢2 582
#74
PROTECTOR 2 (DEEP PURPLISH BLUE METALLIC C) *{UR FOR DPBMC}*
$325.38¢162 691
#75
SCREW, TRUSS HEAD TAPPING
$1.58¢788
#76
bolt
$3.68¢1 840
#77
BRACKET 3
$58.71¢29 354
#78
CLAMP
$1.10¢552
#79
GROMMET
$3.53¢1 765
#80
Collar
$5.16¢2 582
