FUEL TANK

⚠️ Verificar CantidadesRevisa el diagrama cuidadosamente. Si tu ensamble requiere múltiples unidades de un mismo número (ej: 6 tornillos idénticos), asegúrate de ajustar la cantidad de piezas manualmente antes de añadirlas al carrito.

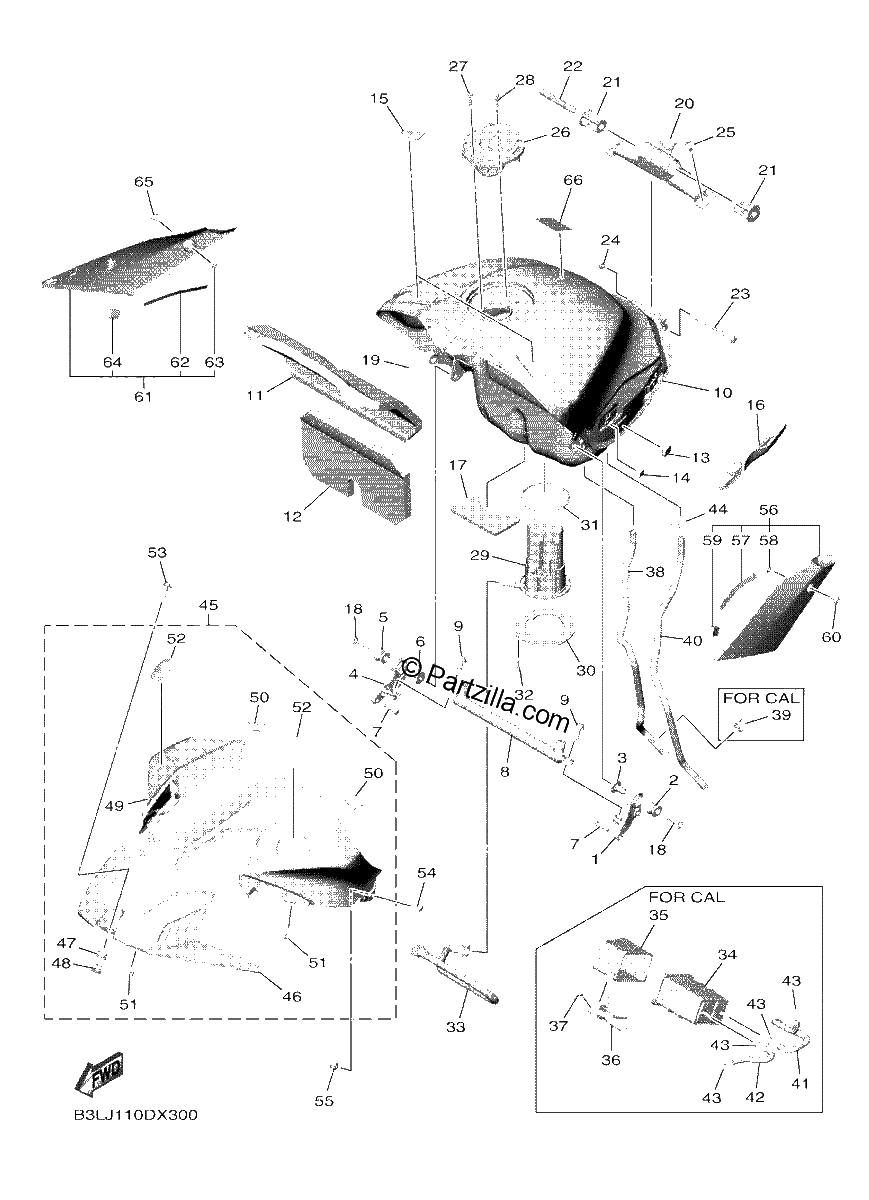

Diagrama de FUEL TANK

Repuestos

#1
2CR-24191-00-00
BRACKET, FUEL TANK 1
$25.63¢12 817
1
#2
90480-18008-00
GROMMET
$3.48¢1 742
1
#3
90387-06091-00
COLLAR
$6.82¢3 410
1
#4
2CR-24192-00-00
BRACKET, FUEL TANK 2
$22.56¢11 282
1
#5
90480-18008-00
GROMMET
$3.48¢1 742
1
#6
90387-06091-00
COLLAR
$6.82¢3 410
1
#7
91312-06025-00
BOLT, HEXAGON SOCKET HEAD
$2.24¢1 121
1
#8
B3L-2142V-00-00
CROSS BAR
$238.60¢119 301
1
#9
90110-08097-00
BOLT, HEXAGON SOCKET HEAD
$6.75¢3 375
1
#10
2CR-YK241-10-P2
FUEL TANK COMP. (replaces 2CR-YK241-00-P2)
$2199.94¢1 099 969
1
#11
2CR-2414H-00-00
DAMPER, PLATE 1
$8.66¢4 330
1
#12
2CR-2414J-00-00
DAMPER, PLATE 2
$5.01¢2 507
1
#13
4D9-24741-00-00
PAD, SEAT
$2.82¢1 409
1
#14
5PW-2411J-01-00
DAMPER, SIDE COVER
$7.04¢3 519
1
#15
2PP-2411G-00-00
HOOK, SIDE COVER 1
$7.38¢3 691
1
#16
B3L-24141-00-00
PROTECTOR, FUEL TANK
$4.94¢2 472
1
#17
B3L-2414G-00-00
SEAL
$6.90¢3 450
1
#18
90110-06346-00
BOLT, HEXAGON SOCKET HEAD
$6.87¢3 433
1
#19
90183-05M02-00
NUT, SPRING
$0.46¢230
1
#20
B3L-2413Y-00-00
BRACKET, TANK FITTING
$39.03¢19 515
1
#21
5SL-24183-00-00
DAMPER, LOCATING 3
$7.04¢3 519
1
#22
90387-06055-00
COLLAR
$4.77¢2 386
1
#23
95812-06090-00
BOLT, FLANGE
$3.13¢1 564
1
#24
95702-06500-00
NUT, FLANGE
$2.24¢1 121
1
#25
90111-06071-00
BOLT, HEX. SOCKET BUTTON
$3.78¢1 892
1
#26
2CR-24602-01-00
CAP ASSY
$254.97¢127 483
1
#27
90110-05112-00
BOLT, HEXAGON SOCKET HEAD
$8.20¢4 100
1
#28
91312-05010-00
BOLT
$5.39¢2 697
1
#29
2CR-13907-01-00
FUEL PUMP COMP. (replaces 2CR-13907-00-00)
$453.93¢226 964
1
#30
2CR-24491-00-00
BRACKET, FUEL PUMP
$22.59¢11 293
1
#31
1RC-24486-00-00
O-RING
$26.89¢13 443
1
#32
90119-05015-00
BOLT, WITH WASHER (replaces 90119-05016-00)
$6.75¢3 375
1
#33
B3L-13971-01-00
PIPE, FUEL 1
$51.81¢25 904
1
#34
2CR-24170-00-00
CANISTER ASSY | FOR CALIFORNIA
$346.86¢173 432
1
#35
2CR-24182-00-00
DAMPER, LOCATING 2 | FOR CALIFORNIA
$32.46¢16 232
1
#36
2CR-2419F-00-00
BRACKET, CANISTOR | FOR CALIFORNIA
$32.50¢16 250
1
#37
90149-06084-00
SCREW | FOR CALIFORNIA
$7.04¢3 519
1
#38
2CR-24312-00-00
PIPE 2
$17.79¢8 895
1
#39
90480-14032-00
GROMMET | FOR CALIFORNIA
$1.36¢678
1
#41
B3L-24314-00-00
PIPE 4
$21.52¢10 758
1
#42
B3L-24315-00-00
PIPE 5
$9.98¢4 991
1
#43
90467-090A2-00
Clip
$2.74¢1 368
1
#45
B3L-2170F-10-1X
COVER, TOP
$607.17¢303 583
1
#46
B3L-2171A-00-P0
COVER, TOP
$184.44¢92 218
1
#47
90480-12023-00
GROMMET
$6.83¢3 415
1
#48
90387-06203-00
COLLAR
$7.64¢3 818
1
#49
B3L-241B1-00-P1
COVER, TANK
$262.46¢131 232
1
#50
5XT-2411G-00-00
HOOK, SIDE COVER 1
$10.70¢5 348
1
#51
90464-04005-00
Clamp
$3.51¢1 754
1
#52
1RC-2413B-01-00
EMBLEM (replaces 1RC-2413B-00-00)
$21.98¢10 988
1
#53
90110-06233-00
BOLT, HEXAGON SOCKET HEAD
$6.83¢3 415
1
#54
98902-05014-00
SCREW, BIND
$1.32¢661
1
#55
90179-05523-00
NUT
$6.23¢3 117
1
#56
B3L-24106-00-P1
TANK SIDE COVER ASSY 1
$101.48¢50 738
1
#57
90520-03016-00
DAMPER, PLATE
$1.20¢598
1
#58
90387-05035-00
COLLAR
$5.51¢2 754
1
#59
4D9-24741-00-00
PAD, SEAT
$2.82¢1 409
1
#60
90111-05057-00
BOLT,HEX. SOCKET BUTTON
$1.23¢615
1
#61
B3L-24108-00-P1
TANK SIDE COVER ASSY 2
$101.48¢50 738
1
#62
90520-03016-00
DAMPER, PLATE
$1.20¢598
1
#63
90387-05035-00
COLLAR
$5.51¢2 754
1
#64
4D9-24741-00-00
PAD, SEAT
$2.82¢1 409
1
#65
90111-05057-00
BOLT,HEX. SOCKET BUTTON
$1.23¢615
1
#66
29P-2816R-01-00
LABEL, WARNING GENERAL INFO.
$3.40¢1 702
