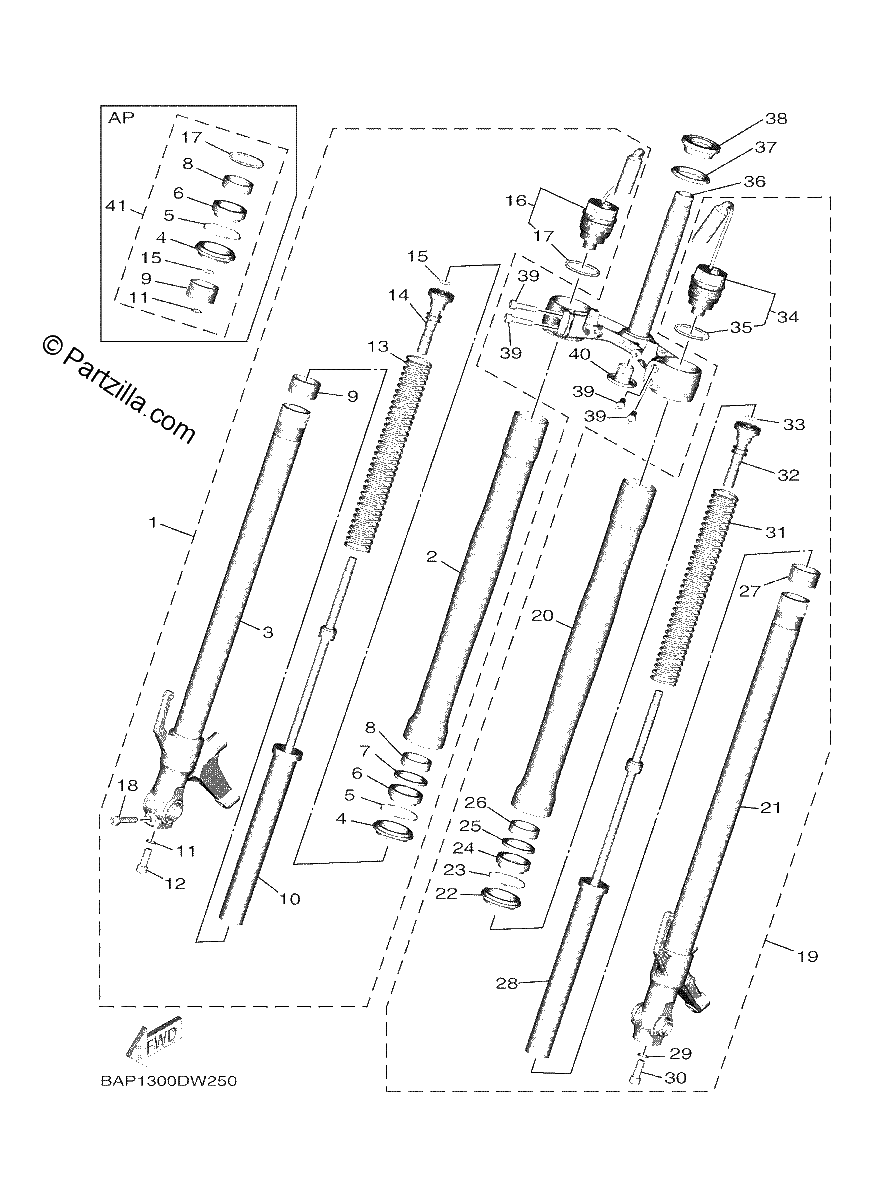

FRONT FORK
⚠️ Verificar CantidadesRevisa el diagrama cuidadosamente. Si tu ensamble requiere múltiples unidades de un mismo número (ej: 6 tornillos idénticos), asegúrate de ajustar la cantidad de piezas manualmente antes de añadirlas al carrito.
Repuestos
#1
DAMPER ASSY. (R)
$2171.24¢1 085 619
#2
. TUBE, OUTER (LH)
$441.31¢220 656
#3
INNER TUBE COMP2
$419.66¢209 831
#4
SEAL, DUST
$23.21¢11 606
#5
RING, SNAP
$7.88¢3 938
#6
OIL SEAL
$28.90¢14 450
#7
WASHER, OIL SEAL
$26.29¢13 144
#8
METAL, SLIDE 1
$14.75¢7 375
#9
METAL, SLIDE
$24.28¢12 138
#10
. CYLINDER COMP, FRONT FORK
$1292.49¢646 244
#11
GASKET | (KYB)
$17.09¢8 544
#12
BOLT, HEXAGON SOCKET HEAD
$9.10¢4 550
#13
. SPRING, FRONT FORK
$82.65¢41 325
#14
. GUIDE, SPRING
$10.96¢5 481
#15
. O-RING
$2.05¢1 025
#16
BOLT, CAP
$515.96¢257 981
#17
O-RING
$8.21¢4 106
#18
BOLT (3JP)
$6.25¢3 125
#19
DAMPER ASSY. (L)
$1936.24¢968 119
#20
. TUBE, OUTER (LH)
$441.31¢220 656
#21
INNER TUBE COMP1
$416.08¢208 038
#22
SEAL, DUST
$23.21¢11 606
#23
RING, SNAP
$7.88¢3 938
#24
OIL SEAL
$28.90¢14 450
#25
WASHER, OIL SEAL
$26.29¢13 144
#26
METAL, SLIDE 1
$14.75¢7 375
#27
METAL, SLIDE
$24.28¢12 138
#28
. CYLINDER COMP, FRONT FORK
$1292.49¢646 244
#29
GASKET | (KYB)
$17.09¢8 544
#30
BOLT, HEXAGON SOCKET HEAD
$9.10¢4 550
#31
. SPRING, FRONT FORK
$82.65¢41 325
#32
. GUIDE, SPRING
$10.96¢5 481
#33
. O-RING
$2.05¢1 025
#34
BOLT, CAP
$515.96¢257 981
#35
O-RING
$8.21¢4 106
#36
UNDER BRACKET COMP.
$528.16¢264 081
#37
SEAL, STEERING
$25.53¢12 763
#38
BEARING
$72.81¢36 406
#39
BOLT, HEXAGON SOCKET HEAD
$2.73¢1 363
#40
COVER, UNDER 1
$14.65¢7 325
#41
FORK SEALS KIT
$57.84¢28 919
