FENDER

⚠️ Verificar CantidadesRevisa el diagrama cuidadosamente. Si tu ensamble requiere múltiples unidades de un mismo número (ej: 6 tornillos idénticos), asegúrate de ajustar la cantidad de piezas manualmente antes de añadirlas al carrito.

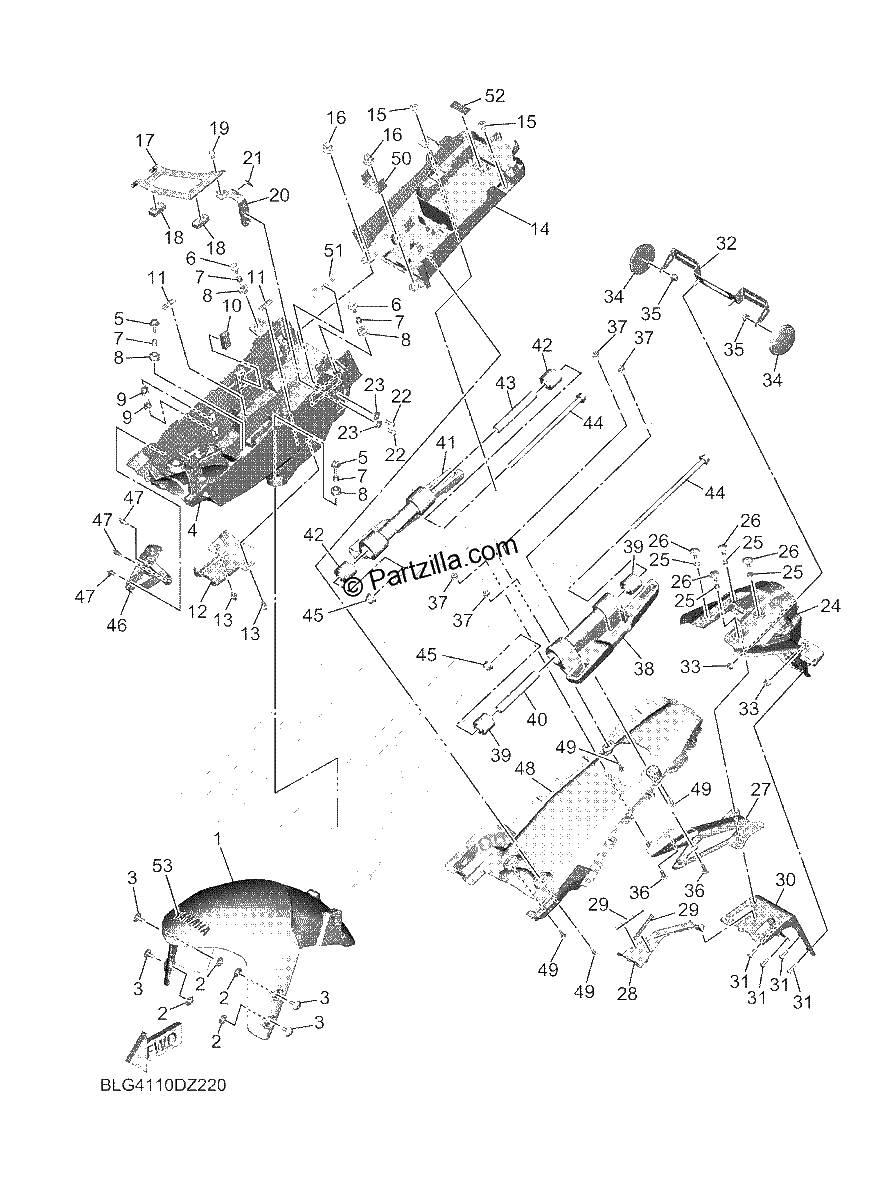

Diagrama de FENDER

Repuestos

#1
B7N-21511-00-3E
FENDER, FRONT (PASTEL DARK GRAY) *{UR FOR PGD}*
$113.96¢56 982
1
#2
90387-07717-00
COLLAR
$6.75¢3 375
1
#3
90111-06191-00
BOLT,HEX. SOCKET BUTTON
$0.99¢494
1
#4
BLG-8212B-00-00
BOX, BATTERY 1
$57.33¢28 664
1
#5
90119-06313-00
BOLT, WITH WASHER
$1.08¢541
1
#6
90119-06138-00
BOLT, WITH WASHER
$5.98¢2 990
1
#7
90387-060A7-00
COLLAR
$11.52¢5 761
1
#8
90480-14035-00
GROMMET
$1.49¢747
1
#9
90183-06069-00
NUT, SPRING
$6.68¢3 341
1
#10
90520-10047-00
DAMPER, PLATE
$1.55¢776
1
#11
B7N-21649-00-00
DAMPER
$2.27¢1 133
1
#12
BLG-2160F-00-00
LID
$11.60¢5 802
1
#13
90269-06018-00
RIVET
$2.05¢1 023
1
#14
B5U-2160E-01-00
BOX
$13.06¢6 532
1
#15
90269-07007-00
RIVET
$3.68¢1 840
1
#16
90269-07076-00
RIVET,SPEC'L SHAPE
$6.55¢3 278
1
#17
BLG-82137-00-00
BAND, BATTERY
$23.07¢11 534
1
#18
90520-10047-00
DAMPER, PLATE
$1.55¢776
1
#19
92012-06012-00
BOLT, BUTTON HEAD
$2.74¢1 368
1
#20
BLG-21688-00-00
BRACKET, REAR STAY
$23.07¢11 534
1
#21
90520-01007-00
DAMPER, PLATE
$1.28¢638
1
#22
92017-06016-00
BLT,BTTN HD (replaces 90111-06007-00)
$6.75¢3 375
1
#23
90387-06048-00
Collar
$6.65¢3 323
1
#24
B7N-21629-00-00
GUARD, MUD
$20.18¢10 091
1
#25
90387-06372-00
COLLAR
$5.93¢2 967
1
#26
90111-06190-00
BOLT,HEX. SOCKET BUTTON
$1.66¢828
1
#27
B5U-2164F-00-00
STAY 1
$61.36¢30 682
1
#28
2PP-2163E-01-00
COVER, REAR FENDER 2
$7.67¢3 835
1
#29
90520-04020-00
DAMPER, PLATE
$0.67¢333
1
#30
B7N-21682-00-00
STAY, PLATE
$40.19¢20 096
1
#31
90160-05012-00
SCREW, ROUND TAPPING
$6.87¢3 433
1
#32
1RC-84751-00-00
BRACKET, LICENSE
$32.10¢16 048
1
#33
95607-06100-00
NUT, U
$2.63¢1 317
1
#34
449-85131-02-00
REFLECTOR, REAR 1
$28.22¢14 110
1
#35
95707-05500-00
NUT, FLANGE
$6.76¢3 381
1
#36
90111-06046-00
BOLT, HEX. SOCKET BUTTON | FOR CALIFORNIA
$5.96¢2 978
1
#37
95602-06200-00
NUT, SELF-LOCKING
$2.58¢1 288
1
#38
BAP-2164H-00-00
STAY 3
$203.39¢101 695
1
#39
90388-10005-00
DAMPER
$26.73¢13 363
1
#40
90387-10124-00
COLLAR
$18.27¢9 137
1
#41
BAP-2164J-00-00
STAY 4
$203.39¢101 695
1
#42
90388-10005-00
DAMPER
$26.73¢13 363
1
#43
90387-10124-00
COLLAR
$18.27¢9 137
1
#44
90105-10493-00
BOLT, FLANGE
$14.74¢7 371
1
#45
95607-10200-00
NUT,SELF-LOCKING
$3.65¢1 823
1
#46
B7N-2163A-00-00
COVER, REAR FENDER 1
$7.10¢3 548
1
#47
90269-06001-00
RIVET
$5.93¢2 967
1
#48
B5U-21651-01-00
COVER, REAR FENDER
No Disponible
1
#49
90269-06001-00
RIVET
$5.93¢2 967
1
#50
BLG-2161F-00-00
BRACKET 5
$9.34¢4 669
1
#51
3JJ-28446-A2-00
LABEL, CAUTION
$4.54¢2 271
1
#52
3TB-24877-A1-00
LABEL, CAUTION
$4.90¢2 449
1
#53
99244-00080-00
EMBLEM, YAMAHA
$14.98¢7 492
1
