TAILLIGHT

⚠️ Verificar CantidadesRevisa el diagrama cuidadosamente. Si tu ensamble requiere múltiples unidades de un mismo número (ej: 6 tornillos idénticos), asegúrate de ajustar la cantidad de piezas manualmente antes de añadirlas al carrito.

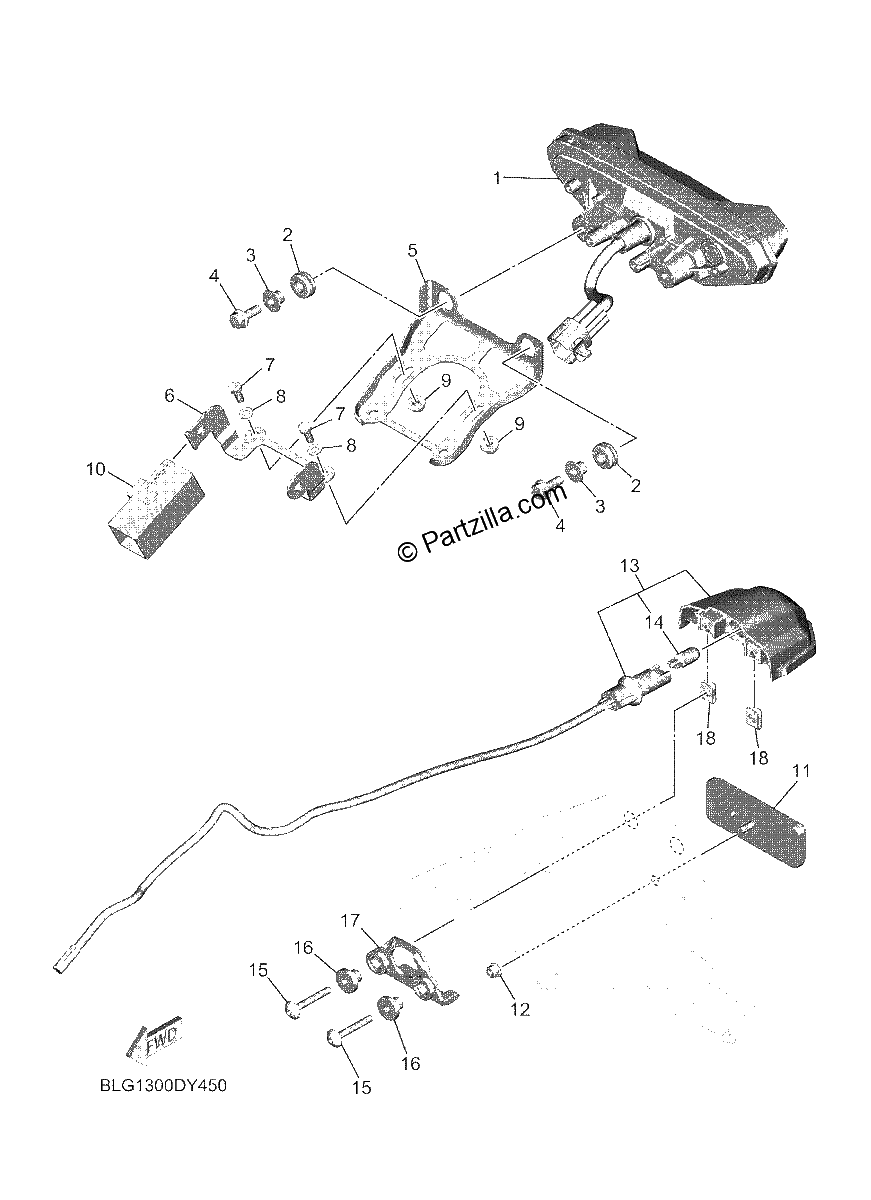

Diagrama de TAILLIGHT

Repuestos

#1
BLG-84700-00-00
TAILLIGHT ASSY
$201.35¢100 677
1
#2
90480-13163-00
GROMMET | FOR CALIFORNIA
$6.51¢3 254
1
#3
90560-06201-00
SPACER
$13.36¢6 681
1
#4
95D32-06016-00
BOLT, FLANGE DEEP RECESS
$0.44¢218
1
#5
B5U-2117E-00-00
BRACKET, TAILLIGHT
$22.74¢11 368
1
#6
BLG-21689-00-00
BRACKET, REAR STAY 2
$16.34¢8 171
1
#7
97027-05012-00
BOLT, HEXAGON
$6.75¢3 375
1
#8
92907-05600-00
WASHER, PLATE
$0.89¢443
1
#9
95707-05500-00
NUT, FLANGE
$6.76¢3 381
1
#10
BLG-21646-00-00
BAND
$18.70¢9 350
1
#11
3Y6-85130-02-00
Rear Reflector
$24.91¢12 455
1
#12
95602-05200-00
NUT, SELF-LOCKING
$7.51¢3 755
1
#13
B5U-84745-00-00
LICENCE LIGHT UNIT ASSY
$53.27¢26 634
1
#14
2DP-H4347-00-00
. BULB (12V-5W)
$7.28¢3 640
1
#15
90111-05026-00
BOLT, HEX. SOCKET BUTTON
$7.44¢3 720
1
#16
90387-05044-00
COLLAR
$13.47¢6 733
1
#17
B5U-21649-00-00
DAMPER
$10.86¢5 428
1
#18
90183-05076-00
NUT, SPRING
$2.60¢1 299
1
