REAR MASTER CYLINDER

⚠️ Verificar CantidadesRevisa el diagrama cuidadosamente. Si tu ensamble requiere múltiples unidades de un mismo número (ej: 6 tornillos idénticos), asegúrate de ajustar la cantidad de piezas manualmente antes de añadirlas al carrito.

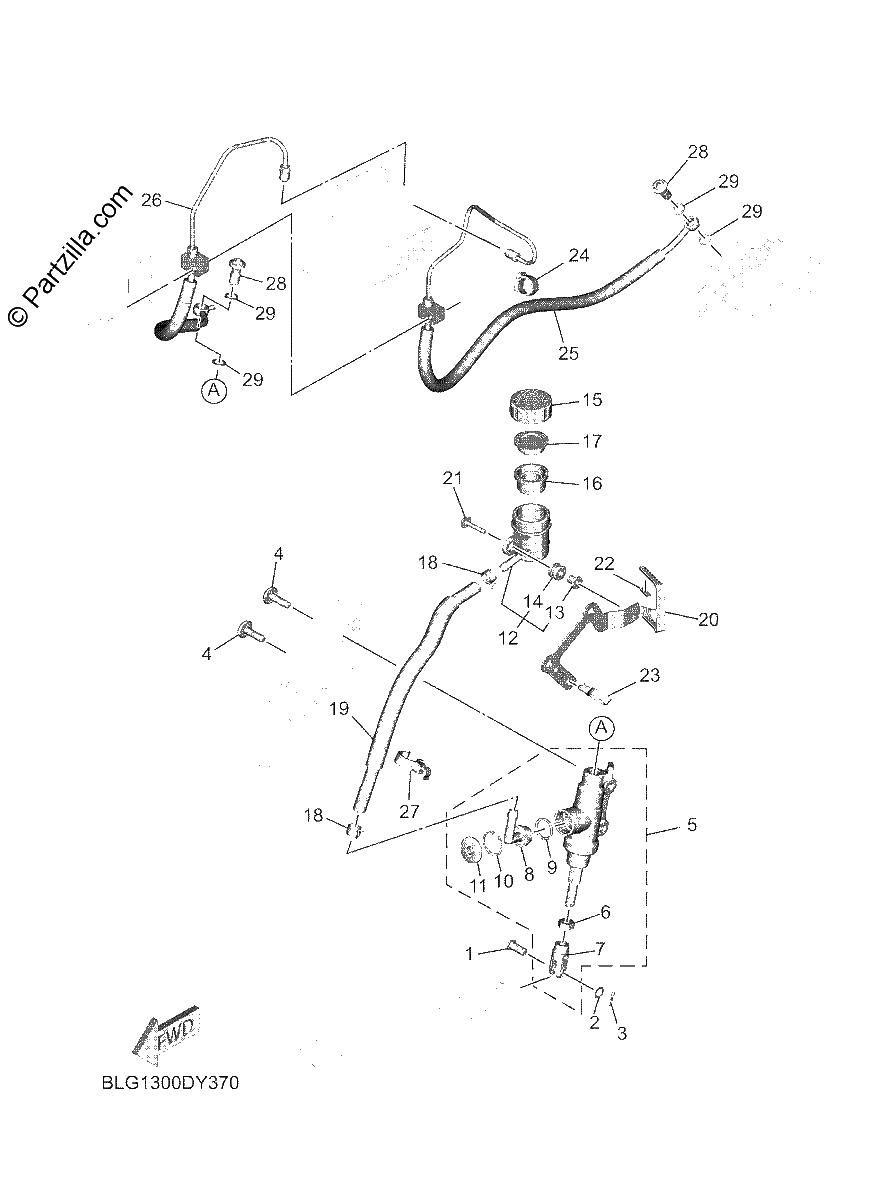

Diagrama de REAR MASTER CYLINDER

Repuestos

#1
91702-06018-00
Pin, Clevis
$5.34¢2 669
1
#2
92907-06200-00
WASHER
$7.35¢3 675
1
#3
91402-16012-00
PIN, COTTER
$7.33¢3 663
1
#4
90111-06140-00
BOLT, HEX. SOCKET BUTTON
$2.11¢1 056
1
#5
BLG-2583V-00-00
RR. MASTER CYLINDER ASSY.
$204.64¢102 319
1
#6
95307-08700-00
. Nut
$8.39¢4 194
1
#7
4XV-27222-01-00
JOINT
$46.41¢23 206
1
#8
4ML-2582A-50-00
JOINT
$14.55¢7 275
1
#9
93210-15620-00
. O-Ring
$6.88¢3 438
1
#10
2VN-25866-00-00
CIRCLIP
$7.08¢3 538
1
#11
3FV-2589A-00-00
COVER, DUST
$21.02¢10 513
1
#12
BAM-25894-50-00
TANK, RESERVOIR
$69.23¢34 613
1
#13
90387-05028-00
COLLAR
$6.95¢3 475
1
#14
2C0-26326-00-00
GROMMET
$6.42¢3 213
1
#15
2C0-25852-00-00
CAP, RESERVOIR
$6.84¢3 419
1
#16
2VN-25854-00-00
DIAPHRAGM, RESERVOIR
$23.38¢11 688
1
#17
2VN-25855-00-00
BUSH,DIAPHRAGM
$11.34¢5 669
1
#18
90467-12085-00
CLIP
$8.69¢4 344
1
#19
B5U-25895-50-00
HOSE, RESERVOIR
$11.27¢5 637
1
#20
B5U-2582E-00-00
HOLDER, RESERVE TANK
$16.21¢8 106
1
#21
90111-05014-00
BOLT, HEX. SOCKET BUTTON
$1.80¢900
1
#22
90520-01006-00
DAMPER, PLATE
$1.29¢644
1
#23
90464-21003-00
Clamp
$2.65¢1 325
1
#24
90464-16003-00
CLAMP
$7.46¢3 731
1
#25
BLG-2581K-00-00
HOSE, BRAKE 5
$118.83¢59 413
1
#26
BLG-2581J-00-00
HOSE, BRAKE 4
$106.33¢53 163
1
#27
90464-18013-00
CLAMP
$3.41¢1 706
1
#28
90401-10172-00
BOLT, UNION
$4.41¢2 206
1
#29
90430-10005-00
GASKET
$8.39¢4 194
1
