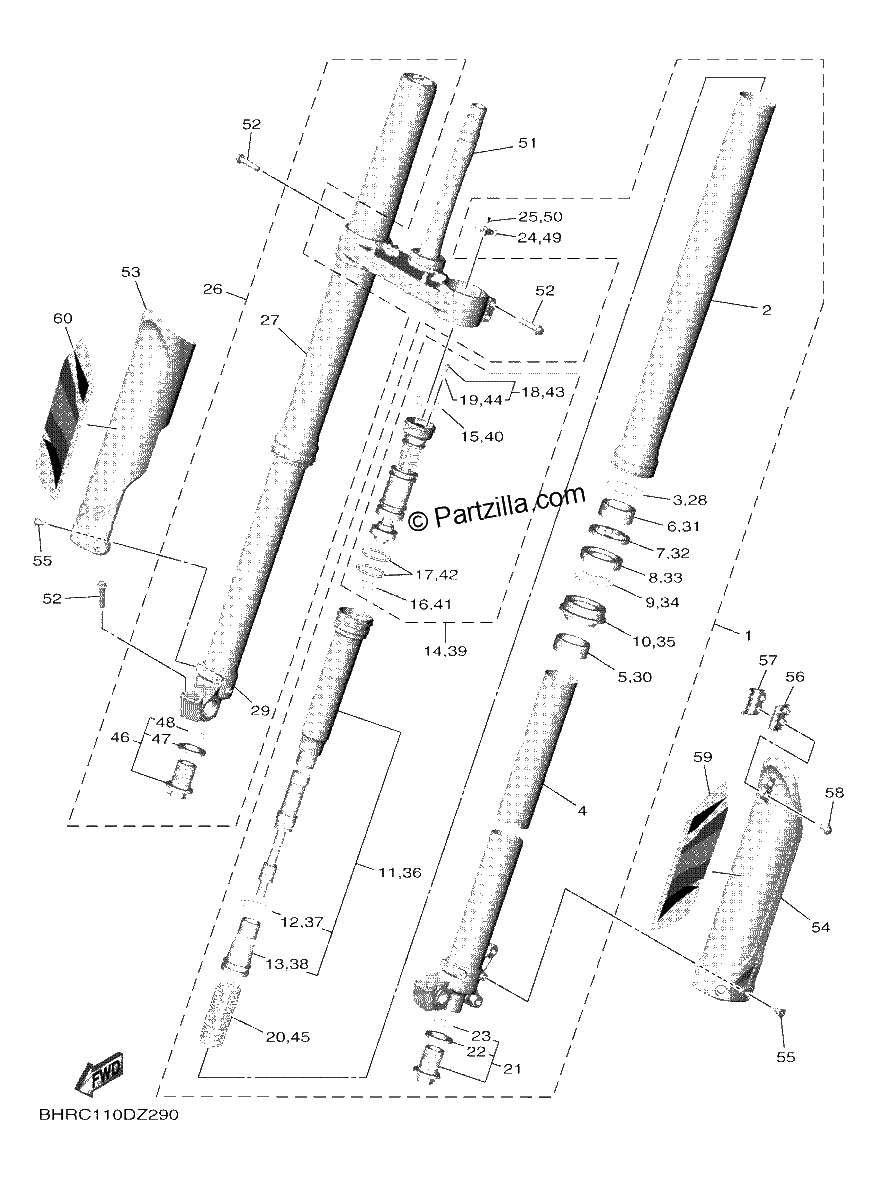

FRONT FORK
⚠️ Verificar CantidadesRevisa el diagrama cuidadosamente. Si tu ensamble requiere múltiples unidades de un mismo número (ej: 6 tornillos idénticos), asegúrate de ajustar la cantidad de piezas manualmente antes de añadirlas al carrito.
Repuestos
#1
FRONT FORK ASSY (L.H)
$1231.24¢615 619
#2
TUBE, OUTER
$893.74¢446 869
#3
RING, SNAP
$4.97¢2 488
#4
INNER TUBE COMP2
$473.94¢236 969
#5
PISTON, FRONT FORK
$24.64¢12 319
#6
METAL, SLIDE 1
$25.02¢12 513
#7
WASHER, OIL SEAL
$14.55¢7 275
#8
Oil Seal
$23.64¢11 819
#9
RING, SNAP
$7.65¢3 825
#10
SEAL, DUST
$23.77¢11 888
#11
. CYLINDER COMP, FRONT FORK
$806.24¢403 119
#12
O-RING
$3.81¢1 906
#13
SEAT, SPRING UPPER
$60.51¢30 256
#14
. VALVE COMP
$457.65¢228 825
#15
O-RING
$8.28¢4 138
#16
O-RING
$7.08¢3 538
#17
O-RING
$5.21¢2 606
#18
AIR VALVE COMP
$23.89¢11 944
#19
O-RING
$3.26¢1 631
#20
SPRING, FRONT FORK (K=5.0)
$148.74¢74 369
#21
BOLT, CAP
$82.40¢41 200
#22
GASKET
$11.34¢5 669
#23
GASKET
$4.00¢2 000
#24
CAP
$10.86¢5 431
#25
SCREW
$1.59¢794
#26
FRONT FORK ASSY (R.H)
$1349.99¢674 994
#27
TUBE, OUTER
$893.74¢446 869
#28
RING, SNAP
$4.97¢2 488
#29
INNER TUBE COMP1
$473.94¢236 969
#30
PISTON, FRONT FORK
$24.64¢12 319
#31
METAL, SLIDE 1
$25.02¢12 513
#32
WASHER, OIL SEAL
$14.55¢7 275
#33
Oil Seal
$23.64¢11 819
#34
RING, SNAP
$7.65¢3 825
#35
SEAL, DUST
$23.77¢11 888
#36
. CYLINDER COMP, FRONT FORK
$806.24¢403 119
#37
O-RING
$3.81¢1 906
#38
SEAT, SPRING UPPER
$60.51¢30 256
#39
. VALVE COMP
$457.65¢228 825
#40
O-RING
$8.28¢4 138
#41
O-RING
$7.08¢3 538
#42
O-RING
$5.21¢2 606
#43
AIR VALVE COMP
$23.89¢11 944
#44
O-RING
$3.26¢1 631
#45
SPRING, FRONT FORK (K=5.0)
$148.74¢74 369
#46
BOLT, CAP
$82.40¢41 200
#47
GASKET
$11.34¢5 669
#48
GASKET
$4.00¢2 000
#49
CAP
$10.86¢5 431
#50
SCREW
$1.59¢794
#51
UNDER BRACKET COMP.
$738.01¢369 006
#52
BOLT, FLANGE DEEP RECESS
$2.94¢1 469
#53
PROTECTOR 2
$20.55¢10 275
#54
PROTECTOR 1
$20.55¢10 275
#55
BOLT
$3.93¢1 963
#56
CLAMP
$11.00¢5 500
#57
CLAMP
$19.20¢9 600
#58
BOLT, FLANGE
$5.05¢2 525
#59
GRAPHIC 1
$27.40¢13 700
#60
GRAPHIC 2
$27.40¢13 700
