FUEL TANK

⚠️ Verificar CantidadesRevisa el diagrama cuidadosamente. Si tu ensamble requiere múltiples unidades de un mismo número (ej: 6 tornillos idénticos), asegúrate de ajustar la cantidad de piezas manualmente antes de añadirlas al carrito.

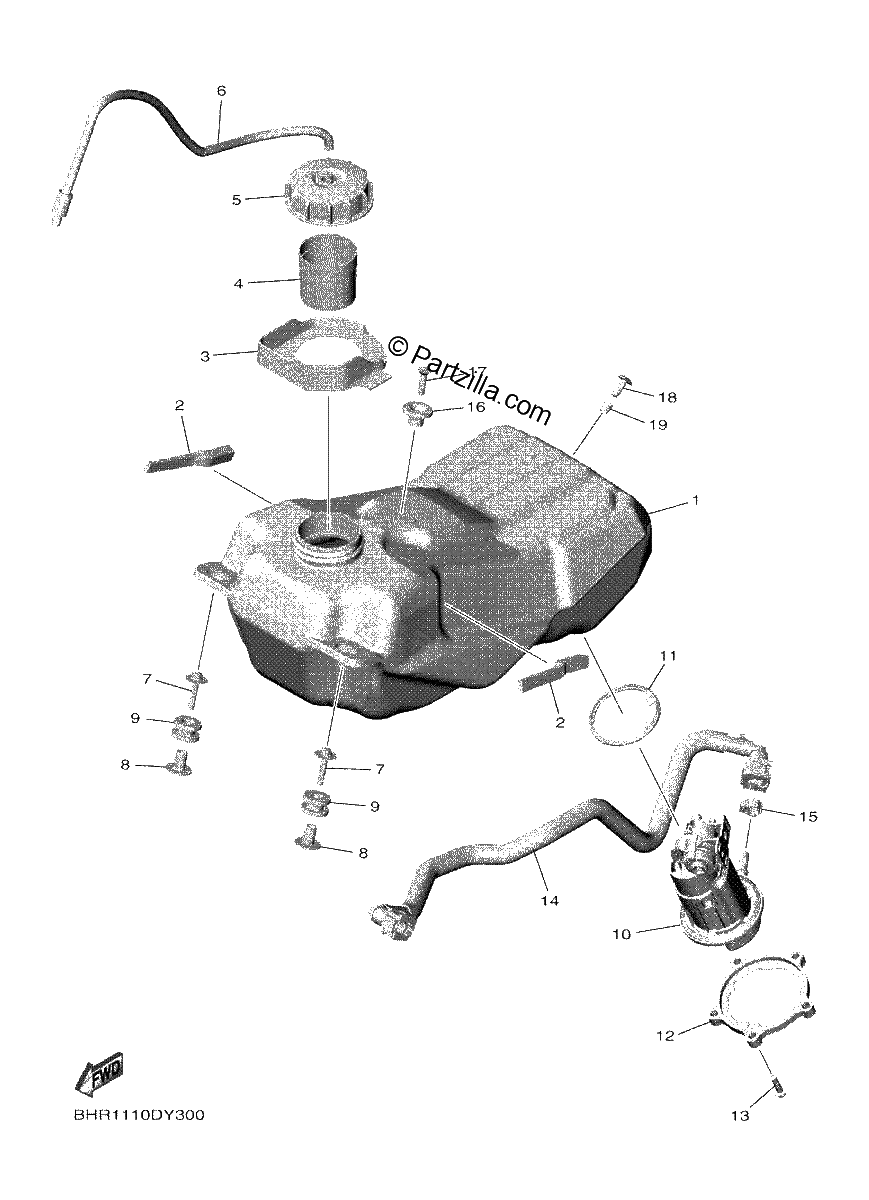

Diagrama de FUEL TANK

Repuestos

#1
BHR-24110-00-00
FUEL TANK COMP
$372.59¢186 294
1
#2
90520-10045-00
DAMPER, PLATE
$2.68¢1 340
1
#3
BHR-24188-00-00
MOLD, FUEL TANK
$45.09¢22 546
1
#4
BHR-24114-00-00
TUBE, FILLER
$16.84¢8 418
1
#5
BR9-24610-00-00
CAP ASSY
$70.83¢35 414
1
#6
90445-08050-00
HOSE
$8.14¢4 071
1
#7
90119-06262-00
BOLT, WITH WASHER
$6.88¢3 439
1
#8
90387-06065-00
COLLAR
$10.48¢5 238
1
#9
90480-14037-00
GROMMET
$16.43¢8 217
1
#10
BHR-13907-00-00
FUEL PUMP COMP
$482.52¢241 258
1
#11
B3J-2414G-00-00
SEAL
$17.08¢8 539
1
#12
BHR-24491-00-00
BRACKET, FUEL PUMP
$59.73¢29 865
1
#13
90110-05058-00
BOLT, HEXAGON SOCKET HEAD
$6.75¢3 375
1
#14
BHR-13971-00-00
PIPE, FUEL 1
$112.19¢56 097
1
#15
33D-24135-00-00
CLAMP 1
$9.56¢4 778
1
#16
4EW-2412F-00-00
BRACKET,SEAT (replaces 1B2-F412F-00-00)
$13.91¢6 958
1
#17
90151-06005-00
)SCREW, CROSSRECESS (8G6)
$7.87¢3 933
1
#18
90149-06021-00
SCREW
$6.83¢3 415
1
#19
90387-06284-00
Collar
$5.58¢2 789
1
