REAR ARM SUSPENSION

⚠️ Verificar CantidadesRevisa el diagrama cuidadosamente. Si tu ensamble requiere múltiples unidades de un mismo número (ej: 6 tornillos idénticos), asegúrate de ajustar la cantidad de piezas manualmente antes de añadirlas al carrito.

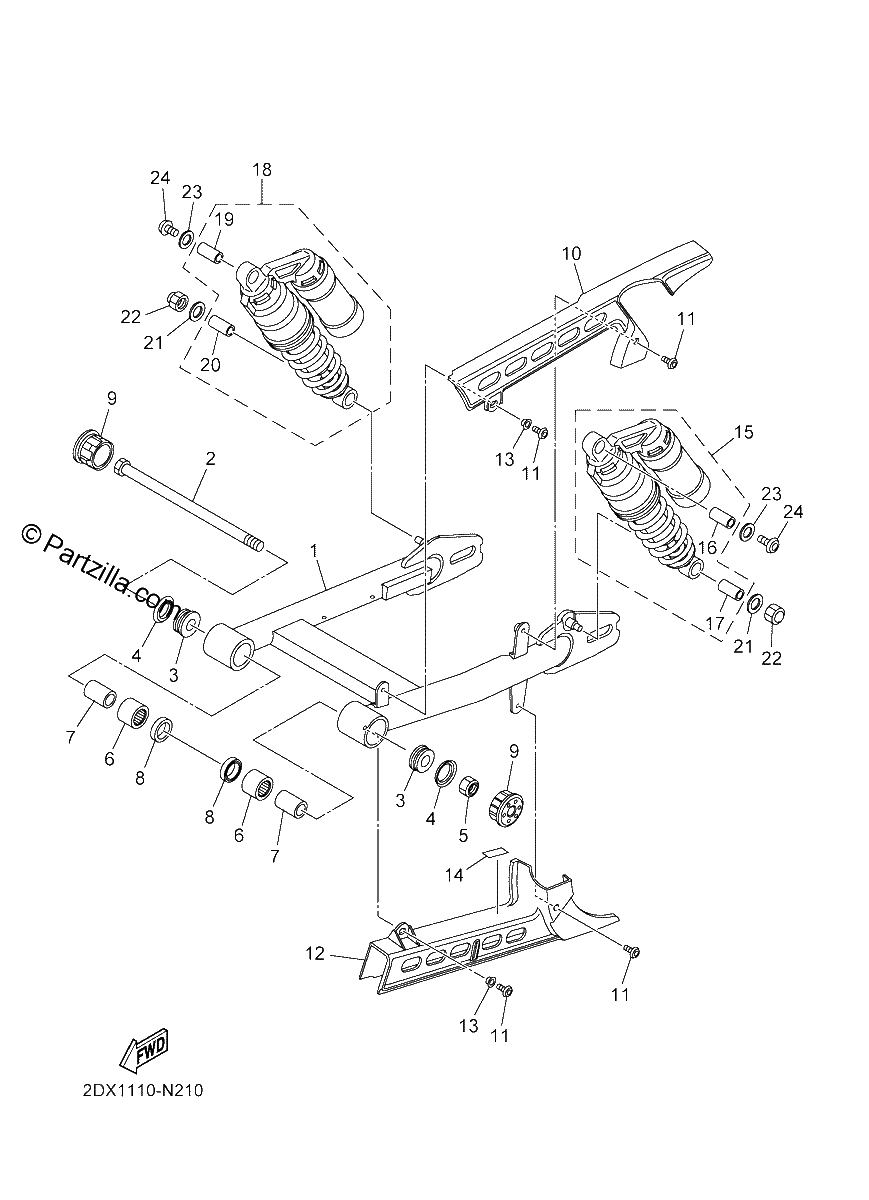

Diagrama de REAR ARM SUSPENSION

Repuestos

#1
1TP-22110-00-00
REAR ARM COMP.
$826.63¢413 313
1
#2
1TP-22141-00-00
SHAFT, PIVOT
$231.94¢115 969
1
#3
90387-16030-00
COLLAR
$17.60¢8 800
1
#4
93108-44001-00
OIL SEAL
$7.10¢3 550
1
#5
95602-16100-00
NUT, U
$26.02¢13 013
1
#6
93317-52897-00
BEARING
$58.90¢29 450
1
#7
90387-16032-00
COLLAR
$27.09¢13 544
1
#8
93109-28001-00
OIL SEAL
$7.14¢3 569
1
#9
1TP-2219X-00-00
COVER
$5.29¢2 644
1
#10
1TP-22311-00-00
CASE, CHAIN
$29.79¢14 894
1
#11
90111-06127-00
BOLT, HEX. SOCKET BUTTON
$7.48¢3 738
1
#12
1TP-22312-00-00
CASE, CHAIN 2
$30.66¢15 331
1
#13
90387-06048-00
Collar
$7.23¢3 613
1
#14
1TP-21668-01-00
LABEL, TIRE
$2.10¢1 050
1
#15
2DX-22210-02-00
SHOCK ABSORBER ASSY, (replaces 2DX-22210-01-00)
$1048.74¢524 369
1
#16
447-22217-21-00
BUSH, REAR SHOCK ABSORBER
$6.95¢3 475
1
#17
447-22216-20-00
BUSH, REAR SHOCK ABSORBER
$7.48¢3 738
1
#18
2DX-22220-02-00
SHOCK ABSORBER ASSY, REAR
$972.49¢486 244
1
#19
447-22217-21-00
BUSH, REAR SHOCK ABSORBER
$6.95¢3 475
1
#20
447-22216-20-00
BUSH, REAR SHOCK ABSORBER
$7.48¢3 738
1
#21
90201-10074-00
WASHER, PLATE
$3.33¢1 663
1
#22
90176-10073-00
NUT, CROWN
$8.16¢4 081
1
#23
90201-08119-00
WASHER, PLATE
$2.30¢1 150
1
#24
90149-08054-00
SCREW
$3.79¢1 894
1
