FUEL TANK

⚠️ Verificar CantidadesRevisa el diagrama cuidadosamente. Si tu ensamble requiere múltiples unidades de un mismo número (ej: 6 tornillos idénticos), asegúrate de ajustar la cantidad de piezas manualmente antes de añadirlas al carrito.

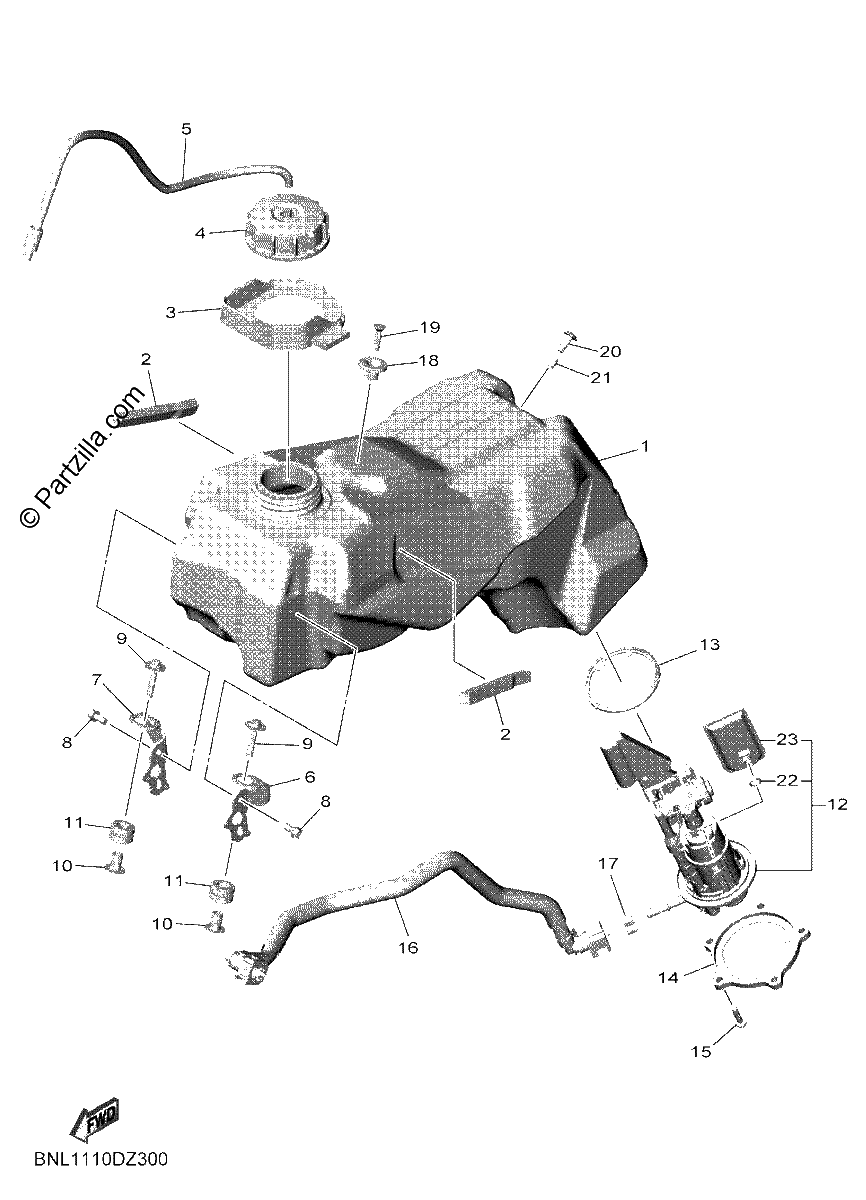

Diagrama de FUEL TANK

Repuestos

#1
BNK-24110-10-00
FUEL TANK COMP
$1364.99¢682 494
1
#2
90520-10045-00
DAMPER, PLATE
$2.91¢1 456
1
#3
BNK-24188-00-00
MOLD, FUEL TANK
$60.96¢30 481
1
#4
BR9-24610-00-00
CAP ASSY
$76.99¢38 494
1
#5
90445-08050-00
HOSE
$8.85¢4 425
1
#6
BNK-24115-00-00
STAY, FUEL TANK 1
$17.56¢8 781
1
#7
BNK-24116-00-00
STAY, FUEL TANK 2
$18.15¢9 075
1
#8
95E32-06012-00
BOLT, FLANGE DEEP RECESS
$1.07¢538
1
#9
90119-06262-00
BOLT, WITH WASHER
$7.48¢3 738
1
#10
90387-06136-00
COLLAR
$6.76¢3 381
1
#11
90480-14038-00
GROMMET
$16.76¢8 381
1
#12
BNK-13907-00-00
FUEL PUMP COMP
$703.74¢351 869
1
#13
B3J-2414G-00-00
SEAL
$18.56¢9 281
1
#14
B3J-24491-00-00
Bracket, Fuel Pump
$72.81¢36 406
1
#15
90110-05058-00
BOLT, HEXAGON SOCKET HEAD
$7.34¢3 669
1
#16
BNK-13971-00-00
PIPE, FUEL 1
$116.61¢58 306
1
#17
33D-24135-00-00
CLAMP 1
$10.39¢5 194
1
#18
4EW-2412F-00-00
BRACKET,SEAT (replaces 1B2-F412F-00-00)
$15.13¢7 563
1
#19
90151-06005-00
)SCREW, CROSSRECESS (8G6)
$8.55¢4 275
1
#20
90149-06021-00
SCREW
$7.43¢3 713
1
#21
90387-06284-00
Collar
$6.06¢3 031
1
#22
3C1-24512-00-00
Gasket
$28.75¢14 375
1
#23
B3J-13915-00-00
FILTER
$30.25¢15 125
1
