TRANSMISSION

⚠️ Verificar CantidadesRevisa el diagrama cuidadosamente. Si tu ensamble requiere múltiples unidades de un mismo número (ej: 6 tornillos idénticos), asegúrate de ajustar la cantidad de piezas manualmente antes de añadirlas al carrito.

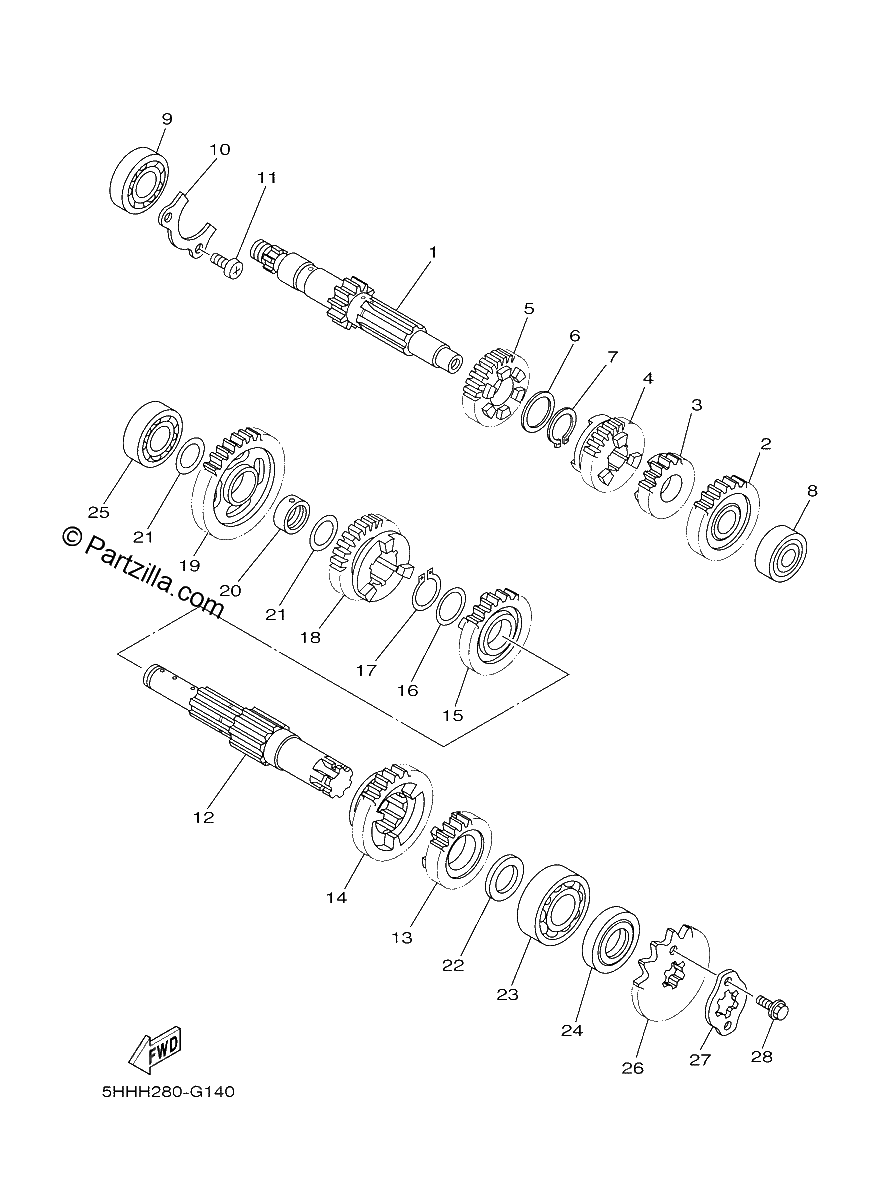

Diagrama de TRANSMISSION

Repuestos

#1
5HH-E7411-10-00
Axle, Main
$220.41¢110 206
1
#2
5HH-E7151-20-00
GEAR,5TH PINION
$57.05¢28 525
1
#3
5HH-E7121-20-00
GEAR, 2ND PINION (18T)
$119.20¢59 600
1
#4
5AP-E7131-00-00
GEAR,3RD PINION
$64.45¢32 225
1
#5
5HH-E7141-20-00
GEAR,4TH PINION
$148.56¢74 281
1
#6
90201-20266-00
WASHER, PLATE (T=1.0)
$9.78¢4 888
1
#7
93410-20809-00
CIRCLIP
$3.11¢1 556
1
#8
93306-201X3-00
BEARING
$19.23¢9 613
1
#9
93306-203YG-00
BEARING
$37.79¢18 894
1
#10
5HH-E7471-00-00
PLATE, COVER
$1.10¢550
1
#11
9851M-06014-00
SCREW, PAN HEAD
$0.56¢281
1
#12
5HH-E7402-30-00
DRIVE AXLE ASSY
$171.90¢85 950
1
#13
5HH-E7251-20-00
GEAR, 5TH WHEEL (21T)
$66.00¢33 000
1
#14
5HH-E7221-20-00
GEAR, 2ND WHEEL (32T)
$76.59¢38 294
1
#15
5LX-E7231-10-00
GEAR,3RD WHEEL
$114.81¢57 406
1
#16
90214-19002-00
Washer, Claw
$2.61¢1 306
1
#17
93410-22039-00
CIRCLIP,S-TYPE
$7.34¢3 669
1
#18
5HH-E7241-00-00
GEAR, 4TH WHELL (23T)
$74.64¢37 319
1
#19
5HH-E7211-20-00
GEAR, 1ST WHEEL (37T)
$180.21¢90 106
1
#20
5LX-E7258-00-00
Collar 1
$18.10¢9 050
1
#21
90201-177G4-00
WASHER,PLATE
$8.09¢4 044
1
#22
90201-20272-00
WASHER,PLATE
$7.24¢3 619
1
#23
93306-204X8-00
BEARING
$16.54¢8 269
1
#24
93102-20143-00
OIL SEAL,SD-TYPE
$11.53¢5 763
1
#25
93306-203XD-00
BEARING
$39.21¢19 606
1
#26
93822-13213-00
SPROCKET, DRIVE
$23.41¢11 706
1
#27
1B2-E7456-00-00
HOLDER, SPROCKET
$1.93¢963
1
#28
9131M-05010-00
bolt
$1.23¢613
1
