ELECTRICAL 3

⚠️ Verificar CantidadesRevisa el diagrama cuidadosamente. Si tu ensamble requiere múltiples unidades de un mismo número (ej: 6 tornillos idénticos), asegúrate de ajustar la cantidad de piezas manualmente antes de añadirlas al carrito.

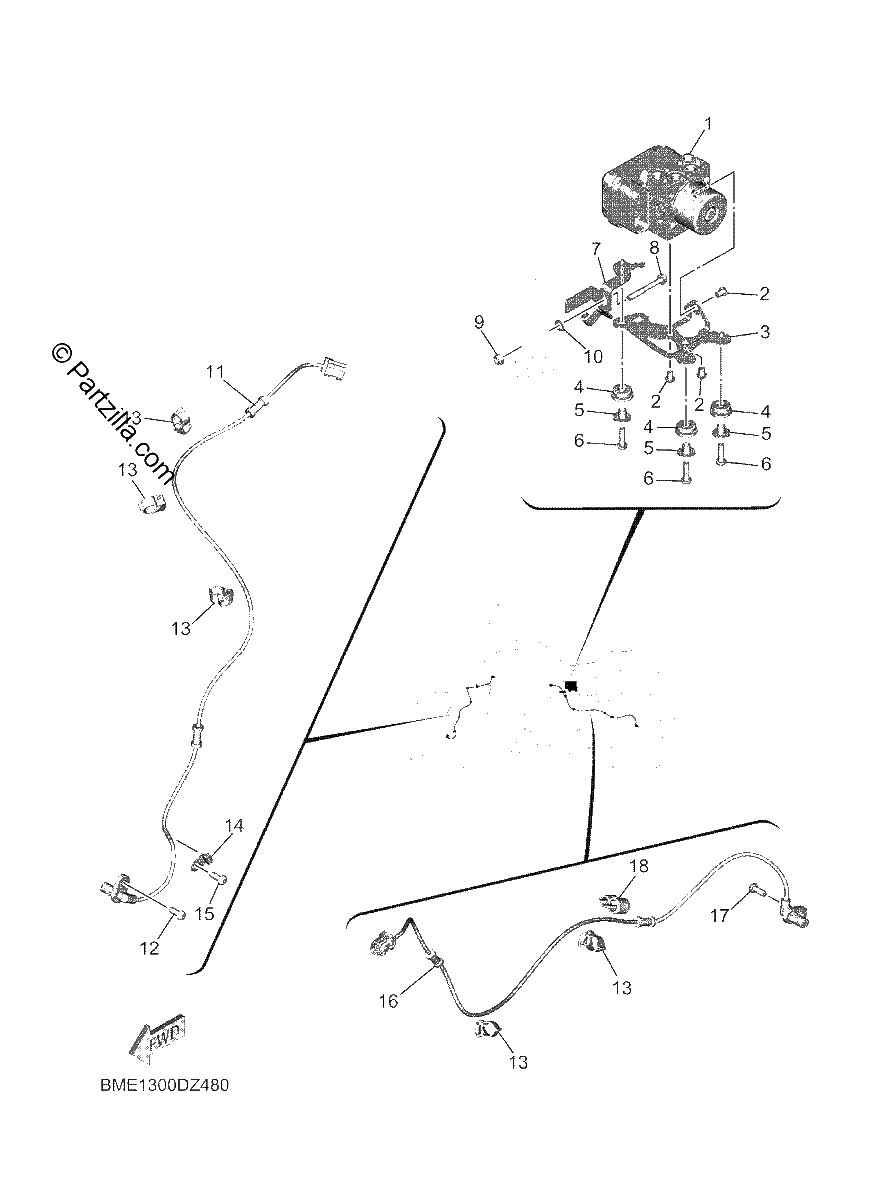

Diagrama de ELECTRICAL 3

Repuestos

#1
BME-85930-09-00
HYDRAULIC UNIT ASSY
$1175.29¢587 644
1
#2
90111-06204-00
BOLT, HEXAGON SOCKET BUTTON
$1.49¢747
1
#3
BME-85991-00-00
BRACKET, UNIT
$20.18¢10 091
1
#4
90480-13567-00
GROMMET
$4.25¢2 128
1
#5
90387-06160-00
COLLAR
$4.15¢2 076
1
#6
92012-06020-00
BOLT, BUTTON HEAD
$6.88¢3 439
1
#7
BME-85542-00-00
BRACKET
$19.04¢9 522
1
#8
95027-06045-00
BOLT, SMALL FLANGE
$2.71¢1 357
1
#9
95607-06100-00
NUT, U
$2.63¢1 317
1
#10
90201-06034-00
WASHER, PLATE
$7.13¢3 565
1
#11
BME-85970-00-00
WHEEL SENSOR ASSY, FRONT
$113.08¢56 540
1
#12
92017-06014-00
BOLT, BUTTON HEAD
$3.06¢1 529
1
#13
90464-14010-00
CLAMP
$3.52¢1 759
1
#14
2CR-23317-00-00
HOLDER, CABLE
$9.88¢4 939
1
#15
92017-06014-00
BOLT, BUTTON HEAD
$3.06¢1 529
1
#16
BME-85980-00-00
WHEEL SENSOR ASSY, REAR
$114.25¢57 126
1
#17
92014-06014-00
BOLT, BUTTON HEAD
$2.90¢1 449
1
#18
90464-10233-00
CLAMP
$6.96¢3 479
1
