FUEL TANK

⚠️ Verificar CantidadesRevisa el diagrama cuidadosamente. Si tu ensamble requiere múltiples unidades de un mismo número (ej: 6 tornillos idénticos), asegúrate de ajustar la cantidad de piezas manualmente antes de añadirlas al carrito.

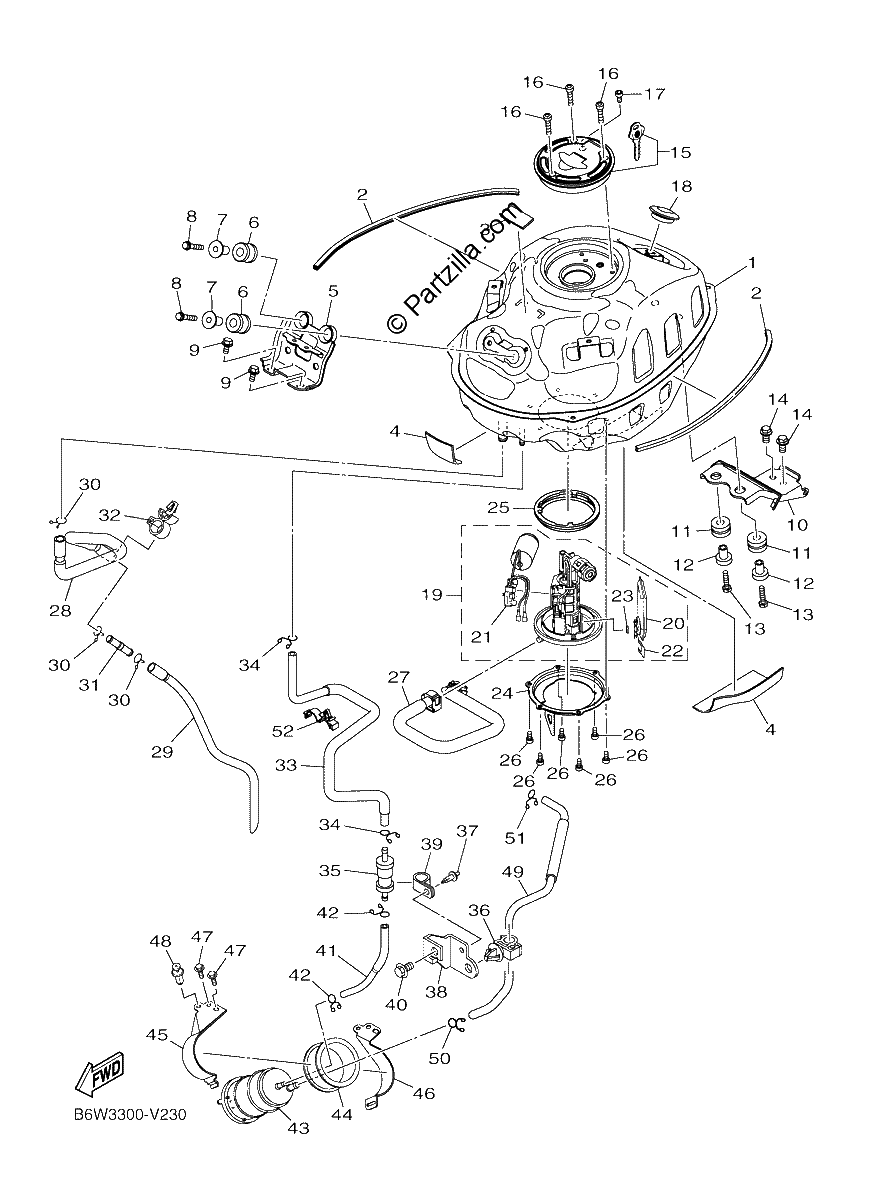

Diagrama de FUEL TANK

Repuestos

#1
BS7-F4110-00-00
FUEL TANK COMP.
$319.99¢159 994
1
#2
BS7-F4188-00-00
MOLD, FUEL TANK
$17.27¢8 638
1
#3
5D9-H2126-00-00
PAD, BATTERY (5D91)
$0.74¢369
1
#4
90520-02843-00
DAMPER, PLATE
$2.09¢1 044
1
#5
B9T-F412Y-00-00
BRACKET, TANK FITT
$25.45¢12 725
1
#6
90480-18813-00
Grommet
$1.29¢644
1
#7
90387-068M3-00
Collar
$3.67¢1 838
1
#8
97022-06030-00
BOLT, HEXAGON
$3.57¢1 787
1
#9
95817-06012-00
BOLT, FLANGE (replaces 95827-06012-00)
$1.79¢894
1
#10
BS7-F4191-01-00
BRACKET, FUEL TANK
$24.44¢12 219
1
#11
90480-15807-00
GROMMET
$1.36¢681
1
#12
90387-068S8-00
Collar
$1.36¢681
1
#13
97022-06030-00
BOLT, HEXAGON
$3.57¢1 787
1
#14
95022-08014-00
BOLT, FLANGE
$7.43¢3 713
1
#15
BS7-WF461-00-00
CAP ASSY
$118.90¢59 450
1
#16
90110-05806-00
BOLT, HEXAGON SOCKET HEAD
$8.91¢4 456
1
#17
91312-05010-00
BOLT
$5.86¢2 931
1
#18
90480-01806-00
Grommet
$1.98¢988
1
#19
BS7-E3907-01-00
FUEL PUMP COMP.
$232.79¢116 394
1
#20
3C1-E3915-00-00
FILTER
$18.43¢9 213
1
#21
BS7-H5752-00-00
SENDER UNIT ASSY, FUEL METER
$129.45¢64 725
1
#22
3C1-F4519-00-00
CLIP
$5.07¢2 537
1
#23
3C1-24512-00-00
Gasket
$28.75¢14 375
1
#24
BS7-F4491-00-00
Bracket, Fuel Pump
$11.14¢5 569
1
#25
3C1-F4486-00-00
O-RING
$44.56¢22 281
1
#26
91312-05010-00
BOLT
$5.86¢2 931
1
#27
1WD-E3971-02-00
PIPE, FUEL 1
$73.64¢36 819
1
#28
1WD-F4312-01-00
PIPE 2
$18.68¢9 338
1
#29
B9T-F4314-00-00
PIPE 4
$14.04¢7 019
1
#30
90467-15012-00
CLIP,SCISSOR
$5.61¢2 806
1
#31
1WD-F4376-00-00
PIPE, JOINT 1
$16.65¢8 325
1
#32
90464-16012-00
Clamp
$6.45¢3 225
1
#33
2MS-F4314-01-00
PIPE 4
$32.24¢16 119
1
#34
90467-09006-00
CLIP, SCISSOR | FOR CAL
$2.97¢1 487
1
#35
1DW-F4180-02-00
ROLL OVER VALVE ASSY
$89.56¢44 781
1
#36
90464-10008-00
CLAMP
$3.15¢1 575
1
#37
90269-05008-00
RIVET
$3.02¢1 513
1
#38
2MS-F419F-00-00
BRACKET, CANISTOR
No Disponible
1
#39
90464-15014-00
Clamp
$2.35¢1 175
1
#40
95027-08012-00
BOLT, SMALL FLANGE (replaces 9502M-08012-00)
$8.21¢4 106
1
#41
2MS-F4315-00-00
PIPE 5
$9.59¢4 794
1
#42
90467-09006-00
CLIP, SCISSOR | FOR CAL
$2.97¢1 487
1
#43
2MS-F4170-00-00
CANISTER ASSY
$155.65¢77 825
1
#44
2MS-F483H-00-00
BAND
$3.71¢1 856
1
#45
2MS-F115R-00-00
BRACKET, CANISTER
$14.59¢7 294
1
#46
2MS-F134X-00-00
BRACKET, CANISTER
$13.67¢6 837
1
#47
95027-06016-00
Bolt, Flange
$7.48¢3 738
1
#48
90269-06816-00
RIVET
$1.71¢856
1
#49
2MS-F4316-00-00
PIPE 6
$26.66¢13 331
1
#50
90467-11009-00
CLIP
$9.00¢4 500
1
#51
90467-09006-00
CLIP, SCISSOR | FOR CAL
$2.97¢1 487
1
#52
90464-16006-00
CLAMP
$9.91¢4 956
1
