TAILLIGHT

⚠️ Verificar CantidadesRevisa el diagrama cuidadosamente. Si tu ensamble requiere múltiples unidades de un mismo número (ej: 6 tornillos idénticos), asegúrate de ajustar la cantidad de piezas manualmente antes de añadirlas al carrito.

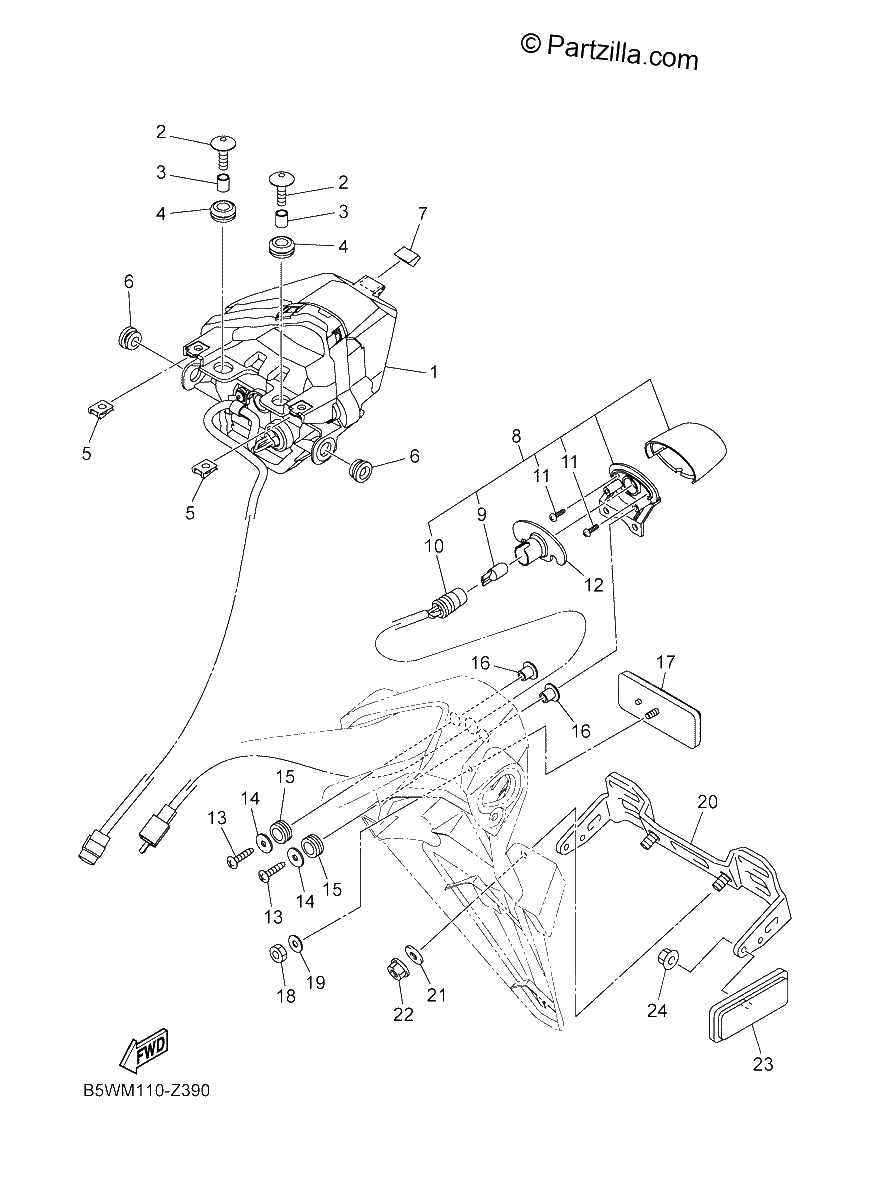

Diagrama de TAILLIGHT

Repuestos

#1
1WD-H4710-02-00
TAILLIGHT UNIT ASSY
$383.98¢191 988
1
#2
90111-06117-00
BOLT, HEX. SOCKET BUTTON
$1.75¢875
1
#3
90387-067V1-00
COLLAR
$3.50¢1 750
1
#4
90480-13001-00
GROMMET
$0.90¢450
1
#5
90183-05807-00
NUT, SPRING
$1.25¢625
1
#6
90480-10003-00
GROMMET
$7.48¢3 738
1
#7
1WD-F1732-00-00
SEAL 1
$1.21¢606
1
#8
BS7-H4740-00-00
LICENCE LIGHT ASSY
$21.74¢10 869
1
#9
1WD-H4744-00-00
BULB (12V-5W)
$15.10¢7 550
1
#10
1WD-H4547-00-00
CORD, LICENSE LIGHT
$7.35¢3 675
1
#11
1WD-H4726-00-00
SCREW
$0.53¢263
1
#12
1WD-H4753-00-00
DAMPER
$0.90¢450
1
#13
97707-40020-00
SCREW, TAPPING
$0.75¢375
1
#14
90201-04804-00
WASHER, PLATE
$3.33¢1 663
1
#15
90480-11009-00
GROMMET
$0.96¢481
1
#16
90387-05042-00
COLLAR
$5.69¢2 844
1
#17
3C1-H5130-00-00
REAR REFLECTOR ASSY
$3.79¢1 894
1
#18
95602-05100-00
Nut, U
$7.94¢3 969
1
#19
90201-05043-00
WASHER, PLATE
$6.47¢3 238
1
#20
2MS-H4751-00-00
BRACKET, LICENSE
$15.30¢7 650
1
#21
90201-06055-00
WASHER, PLATE
$3.50¢1 750
1
#22
95607-06200-00
NUT, U FLANGE
$12.61¢6 306
1
#23
3C1-H5130-00-00
REAR REFLECTOR ASSY
$3.79¢1 894
1
#24
95707-05500-00
NUT, FLANGE
$7.35¢3 675
1
