COWLING CENTER

⚠️ Verificar CantidadesRevisa el diagrama cuidadosamente. Si tu ensamble requiere múltiples unidades de un mismo número (ej: 6 tornillos idénticos), asegúrate de ajustar la cantidad de piezas manualmente antes de añadirlas al carrito.

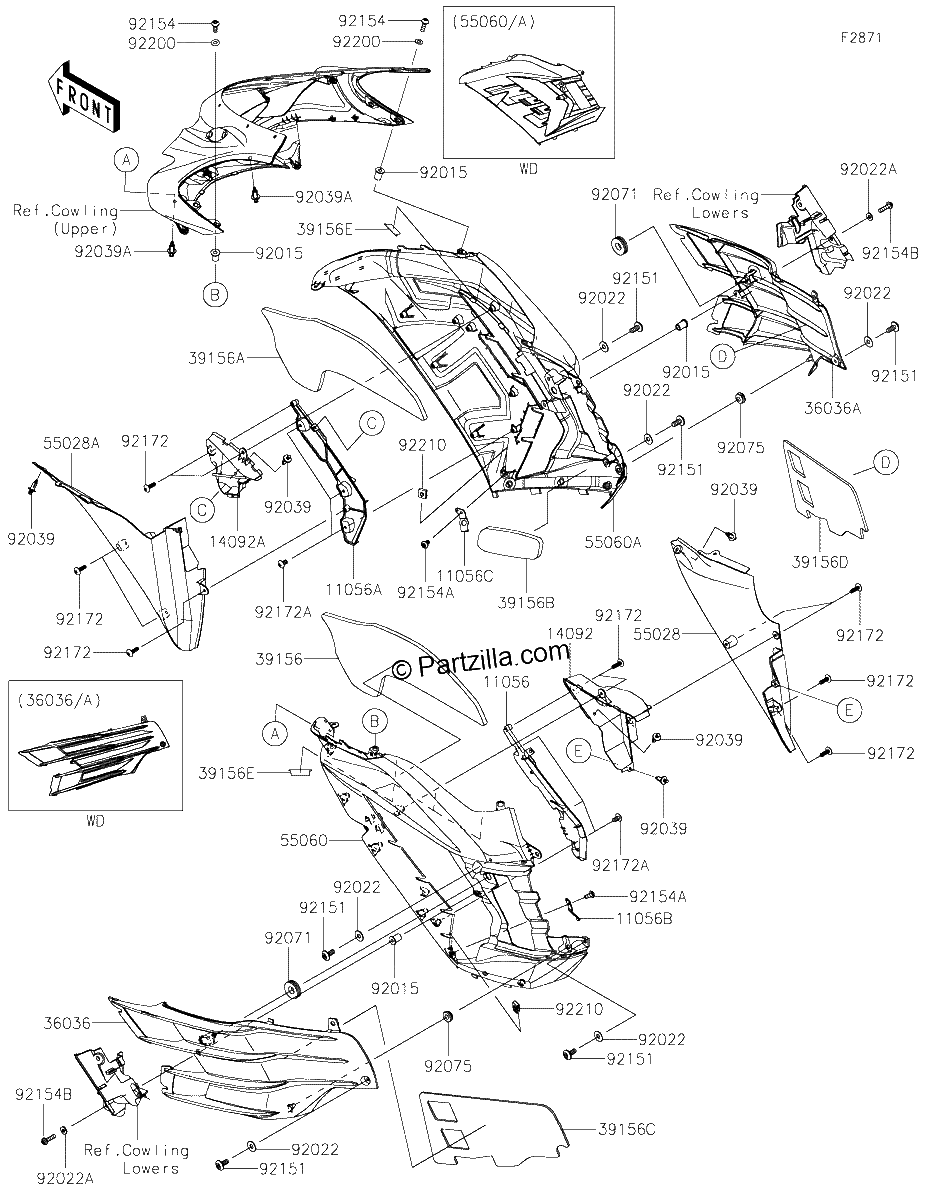

Diagrama de COWLING CENTER

Repuestos

#11056
11056-1343
BRACKET,SIDE COWLING,LH
$30.54¢15 269
1
#11056A
11056-1344
BRACKET,SIDE COWLING,RH
$30.54¢15 269
1
#11056B
11056-1366
BRACKET,LWR COWLING,LH
$5.79¢2 894
1
#11056C
11056-1367
BRACKET,Lower COWLING,Right Hand
$5.79¢2 894
1
#14092
14092-0861
COVER,SIDE COWLING,Left Hand
$50.81¢25 406
1
#14092A
14092-0986
COVER,SIDE COWLING,Right Hand
$28.00¢14 000
1
#36001
36001-0568-69Z
COVER SIDE,Left Hand,L GREEN+SIL
$347.26¢173 631
1
#36001A
36001-0569-69Z
COVER SIDE,Right Hand,L GREEN+SIL
$347.26¢173 631
1
#36036A
36036-5418-17K
COVER-SIDE,RH,M.D.BLACK
$666.29¢333 144
1
#36036
36036-5417-17K
COVER SIDE,Left Hand,M D BLACK
$666.29¢333 144
1
#36036
36036-5495-45L
COVER-SIDE,LH,F.EBONY
$665.97¢332 987
1
#36036A
36036-5496-45L
COVER SIDE,Right Hand,F EBONY
$665.97¢332 987
1
#39156
39156-0783
PAD,SIDE COWLING,Left Hand
$22.46¢11 231
1
#39156A
39156-0784
PAD,SIDE COWLING,Right Hand
$22.46¢11 231
1
#39156B
39156-0785
PAD,SIDE COWLING,RH,LWR
$8.68¢4 338
1
#39156C
39156-0877
PAD,SIDE COVER,Left Hand
$23.05¢11 525
1
#39156D
39156-0878
PAD,SIDE COVER,Right Hand
$23.05¢11 525
1
#39156E
39156-0911
PAD
$5.46¢2 731
1
#55028C
55028-0511-11C
COWLING,SIDE,Right Hand,P C WHITE+GRN
$852.28¢426 138
1
#55028B
55028-0510-11C
COWLING,SIDE,Left Hand,P C WHITE+GRN
$855.22¢427 612
1
#55028A
55028-0457
COWLING,FR,RH
$111.19¢55 594
1
#55028
55028-0383
COWLING,Front,Left Hand
$97.56¢48 781
1
#55060A
55060-5100-36S
COWLING,SIDE,RH,P.S.GRAY
$704.72¢352 362
1
#55060
55060-5351-68P
COWLING,SIDE,LH,M.M.G.GRAY
$707.75¢353 875
1
#55060A
55060-5352-68P
COWLING,SIDE,RH,M.M.G.GRAY
$707.75¢353 875
1
#55060
55060-5099-36S
COWLING,SIDE,LH,P.S.GRAY
$704.34¢352 169
1
#92015
92015-1757
NUT,WELL,5MM
$7.26¢3 631
1
#92022A
92022-1521
WASHER,NYLON,5.3X11.5X1.5
$3.90¢1 950
1
#92022
92022-1143
WASHER,6.5X16X1
$3.90¢1 950
1
#92039A
92039-0060
RIVET
$3.05¢1 525
1
#92039
92039-0051
RIVET
$4.61¢2 306
1
#92071
92071-056
GROMMET
$4.24¢2 119
1
#92075
92075-1011
DAMPER,6X16X7
$7.30¢3 650
1
#92151
92151-1654
BOLT,SOCKET,6X14
$1.63¢813
1
#92154
92154-0209
BOLT,SOCKET,5X16
$2.54¢1 269
1
#92154A
92154-0211
BOLT,SOCKET,5X10
$2.00¢1 000
1
#92154B
92154-0829
BOLT,SOCKET,5X20
$2.46¢1 231
1
#92172
92172-0238
SCREW,TAPPING,5X16
$1.09¢544
1
#92172A
92172-0262
SCREW,TAPPING,5X10
$1.35¢675
1
#92200
92200-0006
WASHER,NYLONE,5.3X11.5X0.5
$1.77¢888
1
#92210
92210-0571
NUT
$3.50¢1 750
1
