SEAT

⚠️ Verificar CantidadesRevisa el diagrama cuidadosamente. Si tu ensamble requiere múltiples unidades de un mismo número (ej: 6 tornillos idénticos), asegúrate de ajustar la cantidad de piezas manualmente antes de añadirlas al carrito.

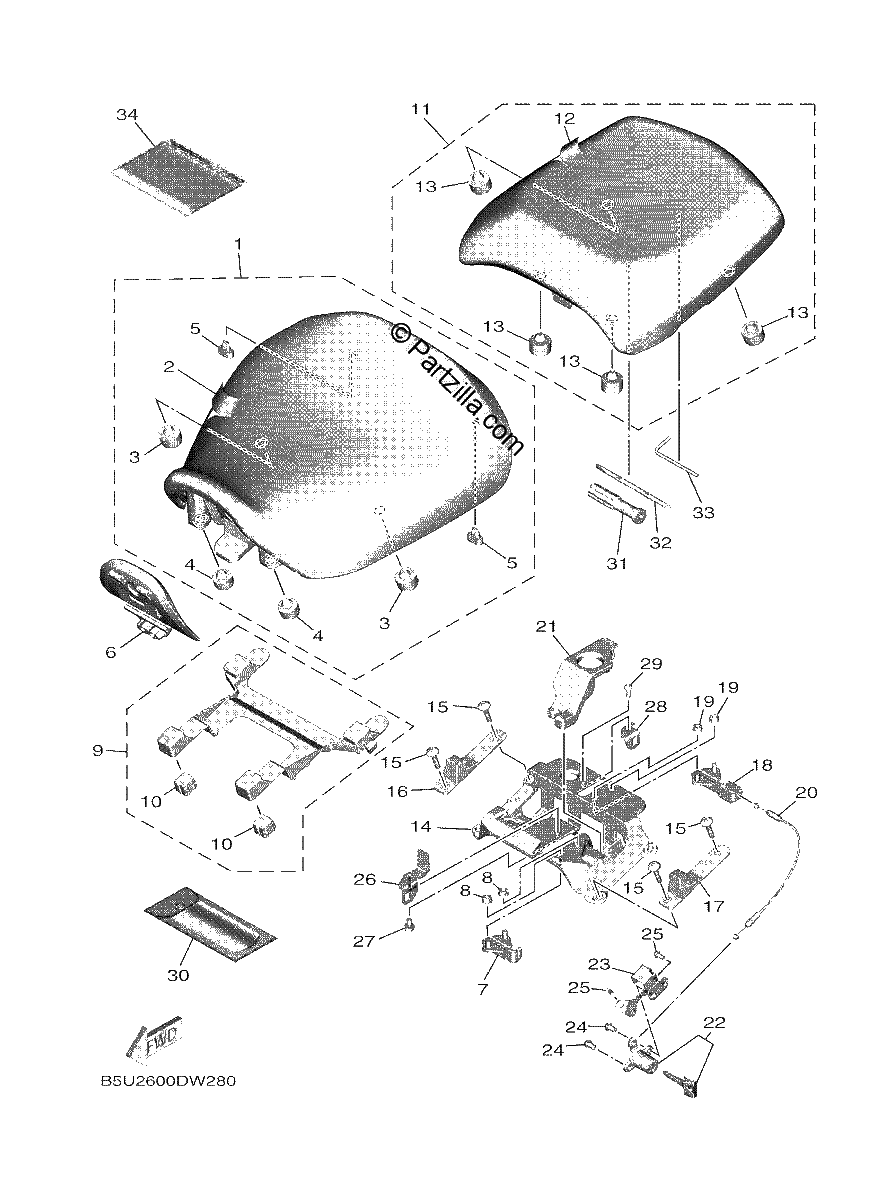

Diagrama de SEAT

Repuestos

#1
BLG-24710-10-00
SINGLE SEAT ASSY
$374.11¢187 056
1
#2
BLG-2470F-10-00
SEAT COVER COMP
$200.85¢100 425
1
#3
371-27114-00-00
STOPPER, MAIN STAND
$6.91¢3 456
1
#4
278-27114-00-00
STOPPER, MAIN STAND
$10.09¢5 044
1
#5
B5C-24741-00-00
PAD, SEAT
$3.66¢1 831
1
#6
B5U-24217-00-00
COVER
$32.75¢16 375
1
#7
3P6-24780-00-00
SEAT LOCK ASSY
$38.42¢19 213
1
#8
95702-06500-00
NUT, FLANGE
$2.44¢1 219
1
#9
B5U-24708-00-00
SEAT BRACKET ASSY
$44.44¢22 219
1
#10
2PP-24723-00-00
DAMPER, SEAT
$8.03¢4 013
1
#11
BLG-24750-10-00
TANDEM SEAT ASSY
$231.48¢115 738
1
#12
BLG-2470H-10-00
SEAT COVER COMP ,2
$126.33¢63 163
1
#13
4GL-27114-00-00
STOPPER, MAIN STAND
$17.01¢8 506
1
#14
2PP-2478X-01-00
BRACKET, SEAT LOCK
$82.95¢41 475
1
#15
90111-06053-00
BOLT,HEX. SOCKET BUTTON (replaces 90111-06052-00)
$6.54¢3 269
1
#16
B5C-24797-00-00
BRACKET, SEAT BACK
$16.21¢8 106
1
#17
B5C-2479L-00-00
BRACKET, SEAT BACK 2
$16.21¢8 106
1
#18
B5U-24780-00-00
SEAT LOCK ASSY
$25.65¢12 825
1
#19
95702-06500-00
NUT, FLANGE
$2.44¢1 219
1
#20
B5U-2479D-00-00
WIRE, SEAT LOCK 2
$9.15¢4 575
1
#21
B5U-2471P-00-00
PLATE, COVER
$16.36¢8 181
1
#22
2TV-W2470-00-00
SEAT LOCK ASSY
$88.70¢44 350
1
#23
B5U-2479K-00-00
PLATE, LOCK
$13.24¢6 619
1
#24
92012-06010-00
BOLT, BUTTON HEAD
$2.91¢1 456
1
#25
92012-05010-00
BOLT, BUTTON HEAD
$7.46¢3 731
1
#26
2PP-2475H-00-00
BRACKET, SEAT LEVER 1
$15.02¢7 512
1
#27
90105-06057-00
BOLT, FLANGE
$4.65¢2 325
1
#28
2PP-2475J-00-00
BRACKET, SEAT LEVER 2
$5.44¢2 719
1
#29
90111-06065-00
BOLT,HEX. SOCKET BUTTON
$2.97¢1 487
1
#30
BAP-28100-00-00
TOOL KIT
$17.44¢8 719
1
#31
2H7-28151-00-00
GRIP, DRIVER
$7.08¢3 538
1
#32
2GV-28152-00-00
DRIVER
$4.60¢2 300
1
#33
23P-28164-00-00
WRENCH, HEXAGON 8
$3.25¢1 625
1
#34
4KG-28186-11-00
POUCH
$8.49¢4 244
1
