TAILLIGHT

⚠️ Verificar CantidadesRevisa el diagrama cuidadosamente. Si tu ensamble requiere múltiples unidades de un mismo número (ej: 6 tornillos idénticos), asegúrate de ajustar la cantidad de piezas manualmente antes de añadirlas al carrito.

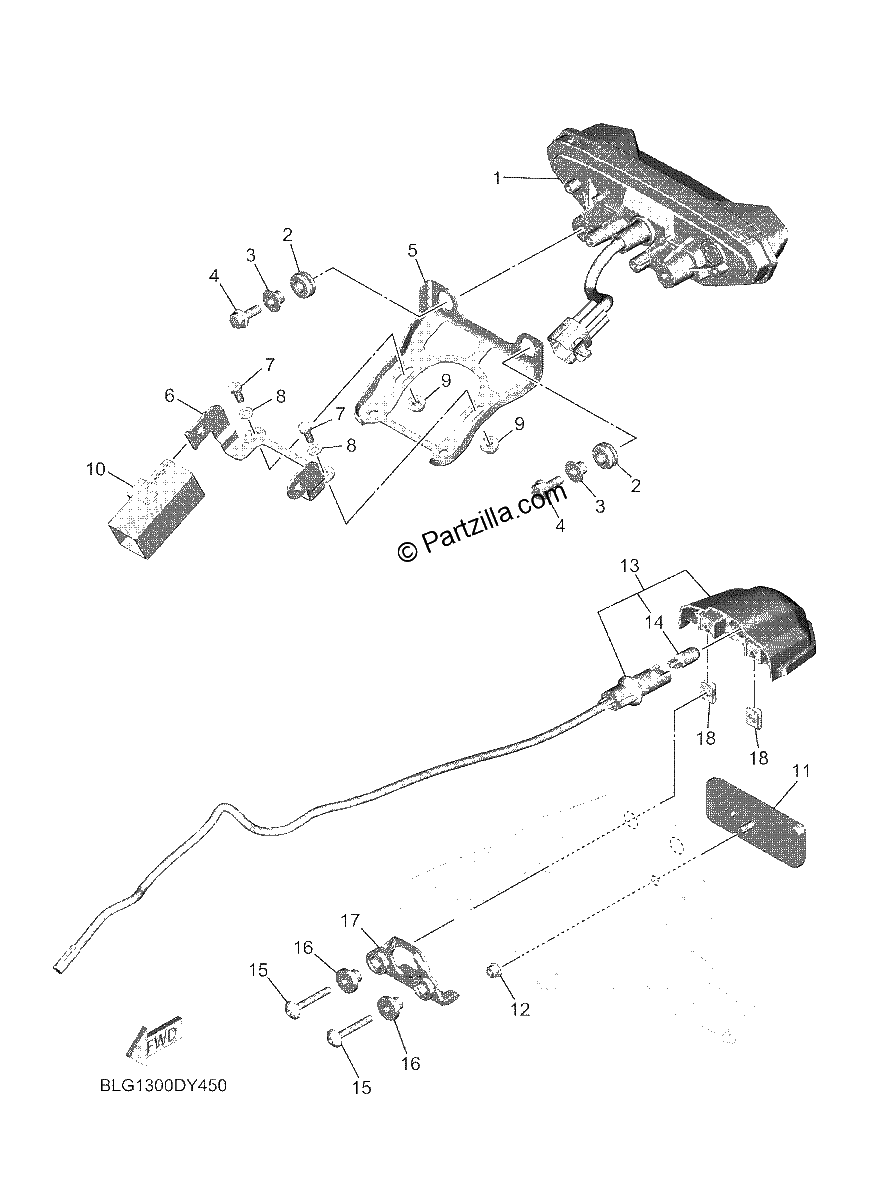

Diagrama de TAILLIGHT

Repuestos

#1
BLG-84700-00-00
TAILLIGHT ASSY
$218.86¢109 431
1
#2
90480-13163-00
GROMMET | FOR CALIFORNIA
$7.08¢3 538
1
#3
90560-06201-00
SPACER
$14.52¢7 262
1
#4
95D32-06016-00
BOLT, FLANGE DEEP RECESS
$0.47¢238
1
#5
B5U-2117E-00-00
BRACKET, TAILLIGHT
$24.71¢12 356
1
#6
BLG-21689-00-00
BRACKET, REAR STAY 2
$17.76¢8 881
1
#7
97027-05012-00
BOLT, HEXAGON
$7.34¢3 669
1
#8
92907-05600-00
WASHER, PLATE
$0.96¢481
1
#9
95707-05500-00
NUT, FLANGE
$7.35¢3 675
1
#10
BLG-21646-00-00
BAND
$20.33¢10 163
1
#11
3Y6-85130-02-00
Rear Reflector
$27.07¢13 538
1
#12
95602-05200-00
NUT, SELF-LOCKING
$8.16¢4 081
1
#13
B5U-84745-00-00
LICENCE LIGHT UNIT ASSY
$57.90¢28 950
1
#14
2DP-H4347-00-00
. BULB (12V-5W)
$7.91¢3 956
1
#15
90111-05026-00
BOLT, HEX. SOCKET BUTTON
$8.09¢4 044
1
#16
90387-05044-00
COLLAR
$14.64¢7 319
1
#17
B5U-21649-00-00
DAMPER
$11.80¢5 900
1
#18
90183-05076-00
NUT, SPRING
$2.82¢1 412
1
