ELECTRICAL 3

⚠️ Verificar CantidadesRevisa el diagrama cuidadosamente. Si tu ensamble requiere múltiples unidades de un mismo número (ej: 6 tornillos idénticos), asegúrate de ajustar la cantidad de piezas manualmente antes de añadirlas al carrito.

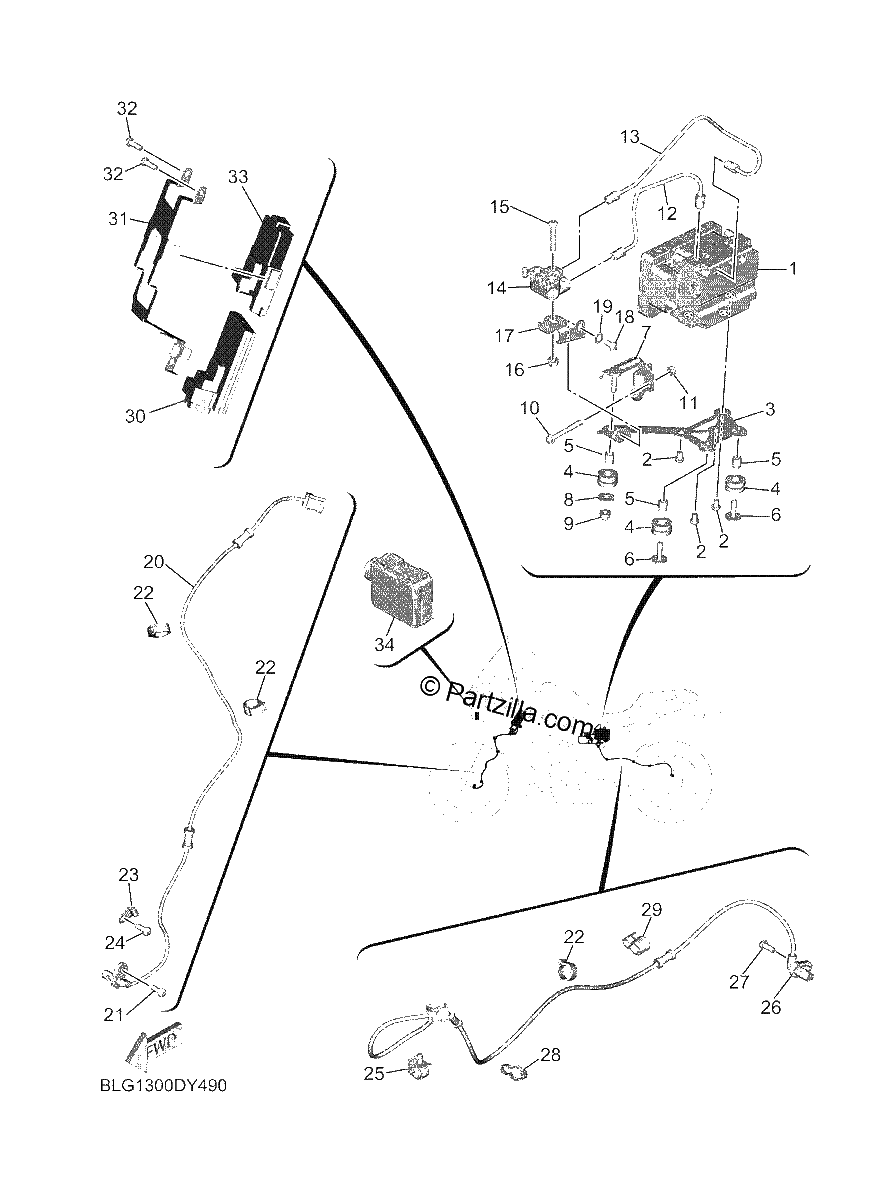

Diagrama de ELECTRICAL 3

Repuestos

#1
BLG-85930-09-00
HYDRAULIC UNIT ASSY
$1937.49¢968 744
1
#2
90111-06204-00
BOLT, HEXAGON SOCKET BUTTON
$1.63¢813
1
#3
BLG-85991-00-00
BRACKET, UNIT
$22.14¢11 069
1
#4
90480-14229-00
GROMMET
$7.34¢3 669
1
#5
90387-065L7-00
COLLAR
$8.24¢4 119
1
#6
90119-06267-00
BOLT, WITH WASHER
$7.34¢3 669
1
#7
BLG-85542-00-00
BRACKET
$58.98¢29 488
1
#8
90201-06778-00
WASHER, PLATE
$4.38¢2 188
1
#9
90176-06065-00
NUT, CROWN
$8.24¢4 119
1
#10
95027-06045-00
BOLT, SMALL FLANGE
$2.95¢1 475
1
#11
95607-06100-00
NUT, U
$2.86¢1 431
1
#12
BLG-25871-00-00
PIPE, BRAKE
$17.21¢8 606
1
#13
BLG-25882-00-00
PIPE, BRAKE 2
$18.38¢9 188
1
#14
B7N-25885-00-00
JOINT
$66.44¢33 219
1
#15
92012-06035-00
BOLT, BUTTON HEAD
$2.05¢1 025
1
#16
95702-06500-00
NUT, FLANGE
$2.44¢1 219
1
#17
BLG-85142-00-00
BRACKET, REFLECTOR 2
$12.61¢6 306
1
#18
92017-06010-00
BOLT, BUTTON HEAD
$3.65¢1 825
1
#19
92907-06200-00
WASHER
$7.35¢3 675
1
#20
B7N-85970-00-00
WHEEL SENSOR ASSY, FRONT
$143.61¢71 806
1
#21
92017-06014-00
BOLT, BUTTON HEAD
$3.33¢1 663
1
#22
90464-16003-00
CLAMP
$7.46¢3 731
1
#23
2CR-23317-00-00
HOLDER, CABLE
$10.74¢5 369
1
#24
92017-06014-00
BOLT, BUTTON HEAD
$3.33¢1 663
1
#25
90464-14013-00
CLAMP
$3.50¢1 750
1
#26
BLG-85980-00-00
WHEEL SENSOR ASSY, REAR
$123.05¢61 525
1
#27
92014-06014-00
BOLT, BUTTON HEAD
$3.15¢1 575
1
#28
90464-14810-00
CLAMP
$1.14¢569
1
#29
90464-10233-00
CLAMP
$7.56¢3 781
1
#30
BLG-85902-00-00
SUSPENSION CONTROL UNIT ASSY
$1364.99¢682 494
1
#31
BLG-2161A-00-00
BRACKET 3
$80.40¢40 200
1
#32
92017-06016-00
BLT,BTTN HD (replaces 90111-06007-00)
$7.34¢3 669
1
#33
BAP-21646-00-00
BAND
$19.68¢9 838
1
#34
BLG-8595A-00-00
MRR. UNIT ASSY
$1166.24¢583 119
1
