CRANKCASE COVER 1

⚠️ Verificar CantidadesRevisa el diagrama cuidadosamente. Si tu ensamble requiere múltiples unidades de un mismo número (ej: 6 tornillos idénticos), asegúrate de ajustar la cantidad de piezas manualmente antes de añadirlas al carrito.

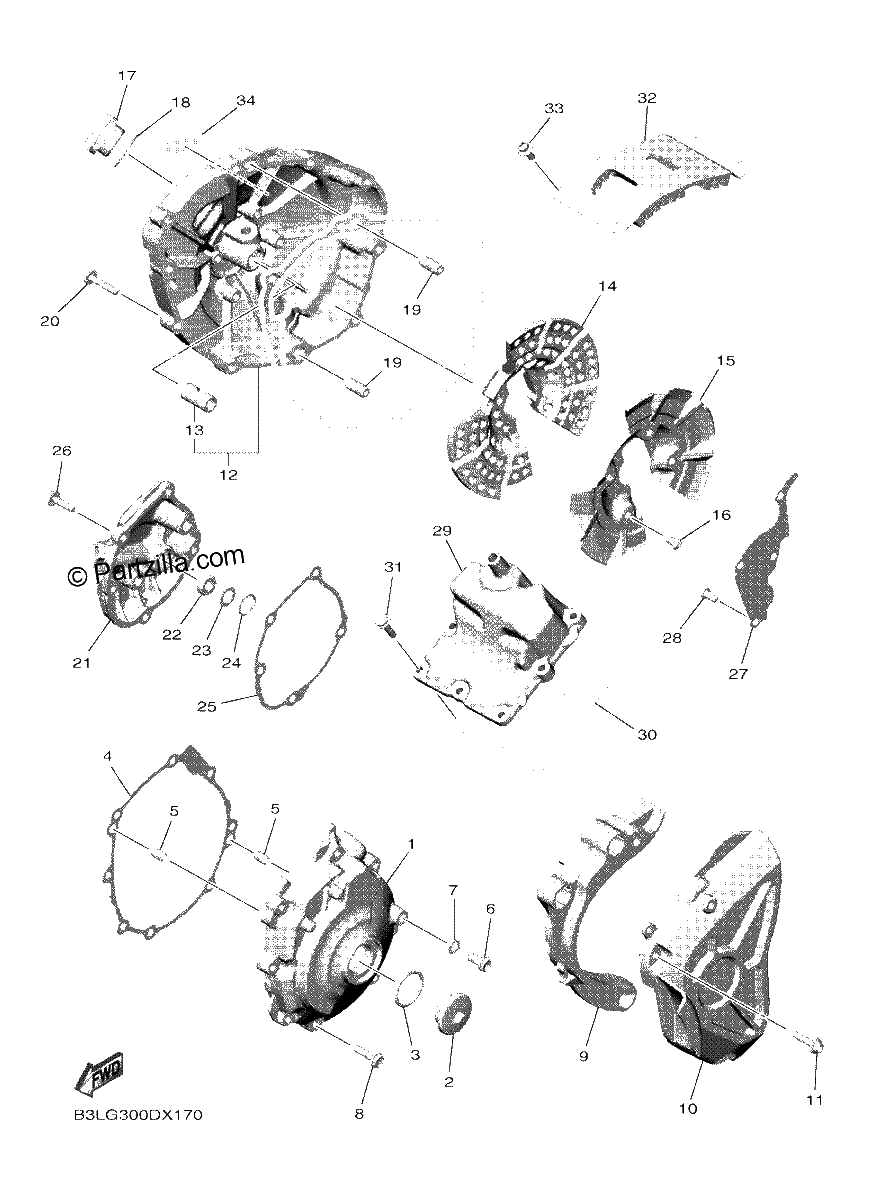

Diagrama de CRANKCASE COVER 1

Repuestos

#1
B3L-15411-00-00
COVER, CRANKCASE 1 *{MBL2}*
$277.79¢138 897
1
#2
90340-27007-00
PLUG, STRAIGHT SCREW
$32.64¢16 318
1
#3
93210-27370-00
O-RING
$7.56¢3 778
1
#4
2CR-15451-00-00
GASKET, CRANKCASE COVER 1
$14.79¢7 394
1
#5
99530-08012-00
PIN, DOWEL
$5.75¢2 875
1
#6
90109-08239-00
BOLT
$9.99¢4 997
1
#7
90430-08143-00
GASKET
$3.38¢1 691
1
#8
90109-06300-00
BOLT
$16.09¢8 044
1
#9
2CR-15377-10-00
GUIDE, INLET
$45.15¢22 574
1
#10
2CR-15418-00-00
COVER, CHAIN CASE
$24.28¢12 138
1
#11
90110-06387-00
BOLT, HEXAGON SOCKET (replaces 90110-06390-00)
$2.71¢1 357
1
#12
BX4-15421-00-00
COVER, CRANKCASE 2
$300.56¢150 282
1
#13
5VY-15541-00-00
COLLAR
$11.48¢5 739
1
#14
2CR-15316-00-00
DAMPER 1
$29.29¢14 645
1
#15
2CR-15492-00-00
COVER
$26.65¢13 323
1
#16
90149-06158-00
SCREW
$6.96¢3 479
1
#17
2CR-15363-01-00
PLUG, OIL
$11.52¢5 761
1
#18
93210-29574-00
O-RING
$7.01¢3 507
1
#19
91810-20002-00
PIN, DOWEL
$5.47¢2 737
1
#20
90109-06301-00
BOLT
$16.09¢8 044
1
#21
BX4-15416-01-00
COVER, OIL PUMP (replaces BX4-15416-00-00)
$82.21¢41 107
1
#22
93101-10004-00
OIL SEAL
$8.41¢4 203
1
#23
90201-12166-00
WASHER, PLATE (replaces 90201-128C9-00)
$6.88¢3 439
1
#24
99009-19500-00
CIRCLIP
$0.98¢489
1
#25
2CR-15456-00-00
GASKET, OIL PUMP COVER 1
$10.95¢5 474
1
#26
90109-06299-00
BOLT
$20.87¢10 436
1
#27
2CR-11165-00-00
PLATE, BREATHER
$3.45¢1 725
1
#28
90149-06158-00
SCREW
$6.96¢3 479
1
#29
2CR-15413-00-00
COVER
$116.05¢58 023
1
#30
2CR-15462-00-00
GASKET, CRANKCASE COVER 3
$10.18¢5 089
1
#31
90109-06300-00
BOLT
$16.09¢8 044
1
#32
2CR-15113-01-00
PLATE
$52.93¢26 467
1
#33
90110-06108-00
BOLT, HEXAGON SOCKET HEAD
$2.84¢1 420
1
#34
B5Y-1548B-00-00
OIL, LABEL
$4.55¢2 277
1
