SHIFT SHAFT

⚠️ Verificar CantidadesRevisa el diagrama cuidadosamente. Si tu ensamble requiere múltiples unidades de un mismo número (ej: 6 tornillos idénticos), asegúrate de ajustar la cantidad de piezas manualmente antes de añadirlas al carrito.

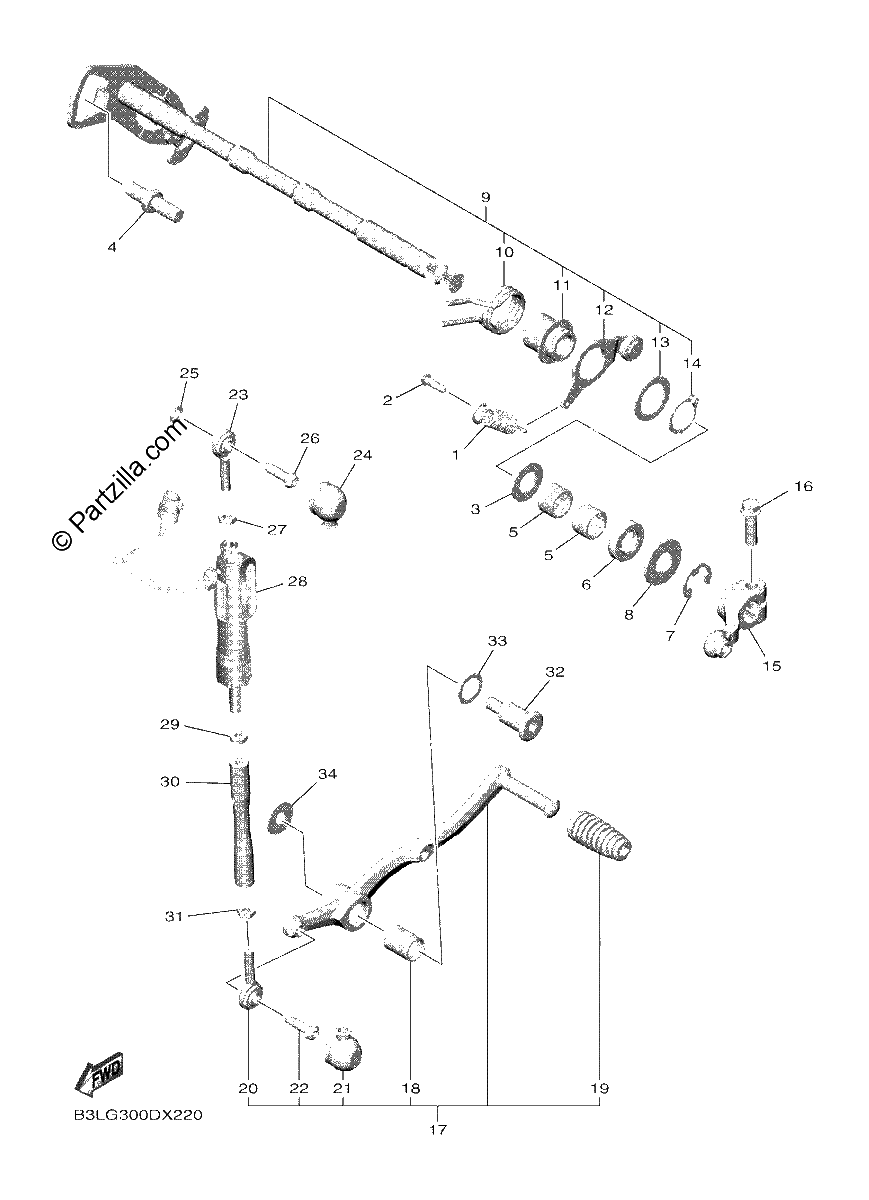

Diagrama de SHIFT SHAFT

Repuestos

#1
90506-18021-00
SPRING, TENSION
$6.20¢3 099
1
#2
132-16346-00-00
HOOK, SPRING
$9.56¢4 778
1
#3
90201-127E1-00
WASHER, PLATE
$4.05¢2 024
1
#4
1D7-18127-00-00
STOPPER, SCREW
$11.94¢5 969
1
#5
93317-11295-00
BEARING
$43.91¢21 954
1
#6
93102-12106-00
OIL SEAL,SD-TYPE
$11.10¢5 549
1
#7
99002-10600-00
CIRCLIP
$6.88¢3 439
1
#8
90201-12575-00
WASHER, PLATE
$6.75¢3 375
1
#9
2CR-18101-01-00
SHIFT SHAFT ASSY
$152.25¢76 124
1
#10
90508-32141-00
SPRING, TORSION
$7.58¢3 789
1
#11
B7N-18175-00-00
. SPACER
$18.07¢9 033
1
#12
14B-18140-00-00
STOPPER LEVER ASSY
$34.24¢17 118
1
#13
90201-177G4-00
WASHER,PLATE
$7.44¢3 720
1
#14
99009-17400-00
Circlip
$4.28¢2 139
1
#15
BW8-18112-10-00
ARM, SHIFT
$57.20¢28 601
1
#16
90105-06127-00
BOLT, FLANGE
$6.75¢3 375
1
#17
BX4-18110-00-00
SHIFT PEDAL ASSY
$123.03¢61 514
1
#18
90386-14171-00
BUSH
$7.44¢3 720
1
#19
5YT-18113-00-00
COVER, SHIFT PEDAL
$7.04¢3 519
1
#20
5LV-18117-00-00
JOINT, ROD 2
$32.18¢16 089
1
#21
4XV-18154-00-00
COVER, DUST
$7.38¢3 691
1
#22
90111-06019-00
BOLT,HEX. SOCKET BUTTON
$2.79¢1 397
1
#23
5LV-18116-00-00
JOINT, ROD 1
$54.81¢27 404
1
#24
4XV-18154-00-00
COVER, DUST
$7.38¢3 691
1
#25
90201-067F9-00
WASHER,PLATE
$3.15¢1 576
1
#26
90111-06019-00
BOLT,HEX. SOCKET BUTTON
$2.79¢1 397
1
#27
95304-06700-00
NUT
$6.75¢3 375
1
#28
B3L-82480-10-00
SHIFT SENSOR ASSY.
$390.90¢195 448
1
#29
95304-06700-00
NUT
$6.75¢3 375
1
#30
BX4-18115-00-00
ROD, SHIFT
$37.78¢18 889
1
#31
90170-06228-00
NUT (COUNTER CLOCKWISE)
$7.19¢3 594
1
#32
4C8-27434-00-00
BOLT
$21.36¢10 678
1
#33
90206-14086-00
WASHER, WAVE
$6.76¢3 381
1
#34
90201-08103-00
WASHER, PLATE
$6.21¢3 105
1
