CRANKCASE COVER 1

⚠️ Verificar CantidadesRevisa el diagrama cuidadosamente. Si tu ensamble requiere múltiples unidades de un mismo número (ej: 6 tornillos idénticos), asegúrate de ajustar la cantidad de piezas manualmente antes de añadirlas al carrito.

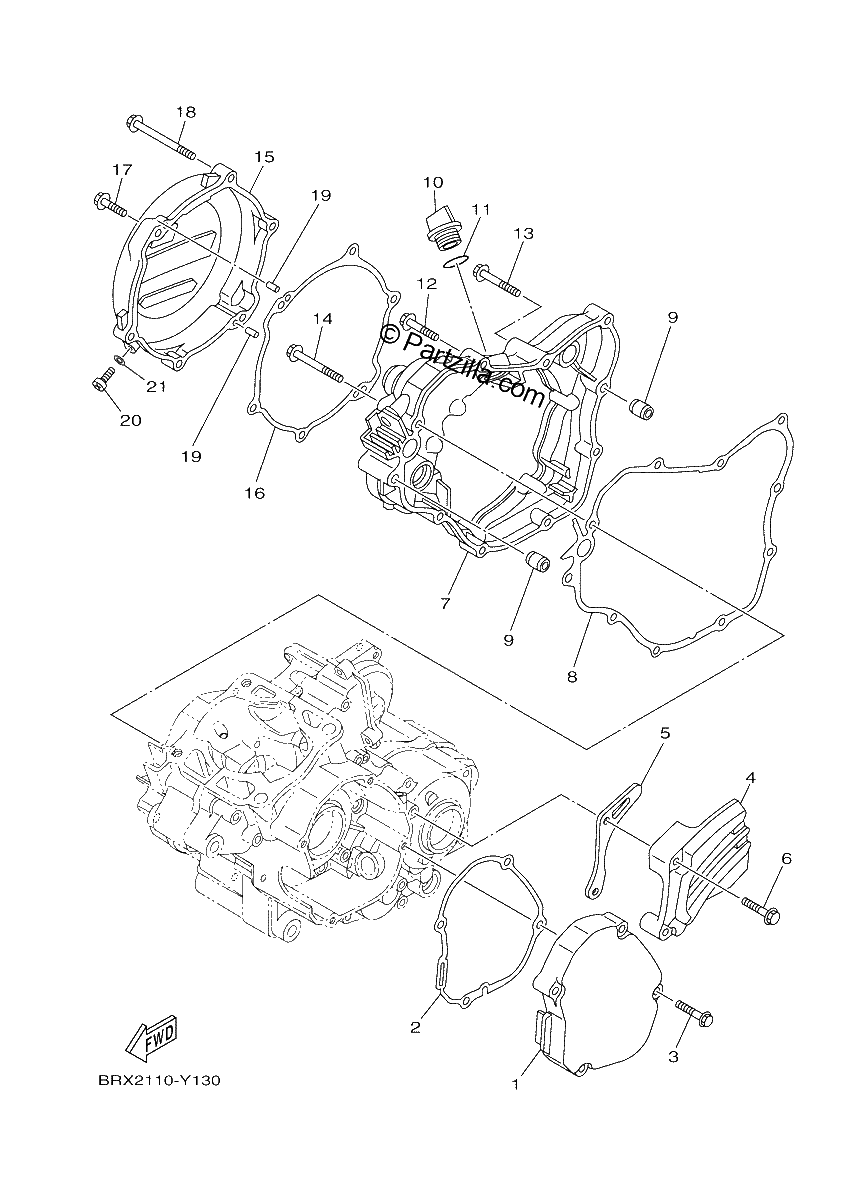

Diagrama de CRANKCASE COVER 1

Repuestos

#1
1C3-15411-10-00
COVER, CRANKCASE 1
$45.55¢22 775
1
#2
1C3-15451-00-00
GASKET, CRANKCASE COVER 1
$16.25¢8 125
1
#3
95E32-06030-00
BOLT, FLANGE DEEP RECESS
$0.85¢425
1
#4
1C3-15421-10-00
COVER, CRANKCASE 2
$70.30¢35 150
1
#5
1C3-17466-00-00
GUIDE, CHAIN
$12.89¢6 444
1
#6
90105-06233-00
BOLT, FLANGE
$3.43¢1 713
1
#7
B4X-15431-00-00
COVER, CRANKCASE 3
$149.75¢74 875
1
#8
1C3-15462-00-00
GASKET, CRANKCASE COVER 3
$17.96¢8 981
1
#9
99530-08016-00
PIN, DOWEL
$6.71¢3 356
1
#10
3Y1-15363-10-00
PLUG, OIL
$20.35¢10 175
1
#11
93210-19123-00
O-Ring
$8.24¢4 119
1
#12
95E32-06030-00
BOLT, FLANGE DEEP RECESS
$0.85¢425
1
#13
95E32-06040-00
BOLT, FLANGE DEEP RECESS
$0.47¢238
1
#14
95E32-06050-00
BOLT, FLANGE DEEP RECESS
$0.49¢244
1
#15
B4X-15415-00-00
COVER, 1
$102.97¢51 488
1
#16
1C3-15463-00-00
GASKET, 2
$18.04¢9 019
1
#17
95E32-06065-00
BOLT, FLANGE DEEP RECESS
$1.02¢513
1
#18
95E32-06025-00
BOLT, FLANGE DEEP RECESS
$0.59¢294
1
#19
93604-10011-00
PIN, DOWEL
$6.25¢3 125
1
#20
92012-06012-00
BOLT, BUTTON HEAD
$2.97¢1 487
1
#21
90430-06014-00
GASKET
$8.25¢4 125
1
