EXHAUST

⚠️ Verificar CantidadesRevisa el diagrama cuidadosamente. Si tu ensamble requiere múltiples unidades de un mismo número (ej: 6 tornillos idénticos), asegúrate de ajustar la cantidad de piezas manualmente antes de añadirlas al carrito.

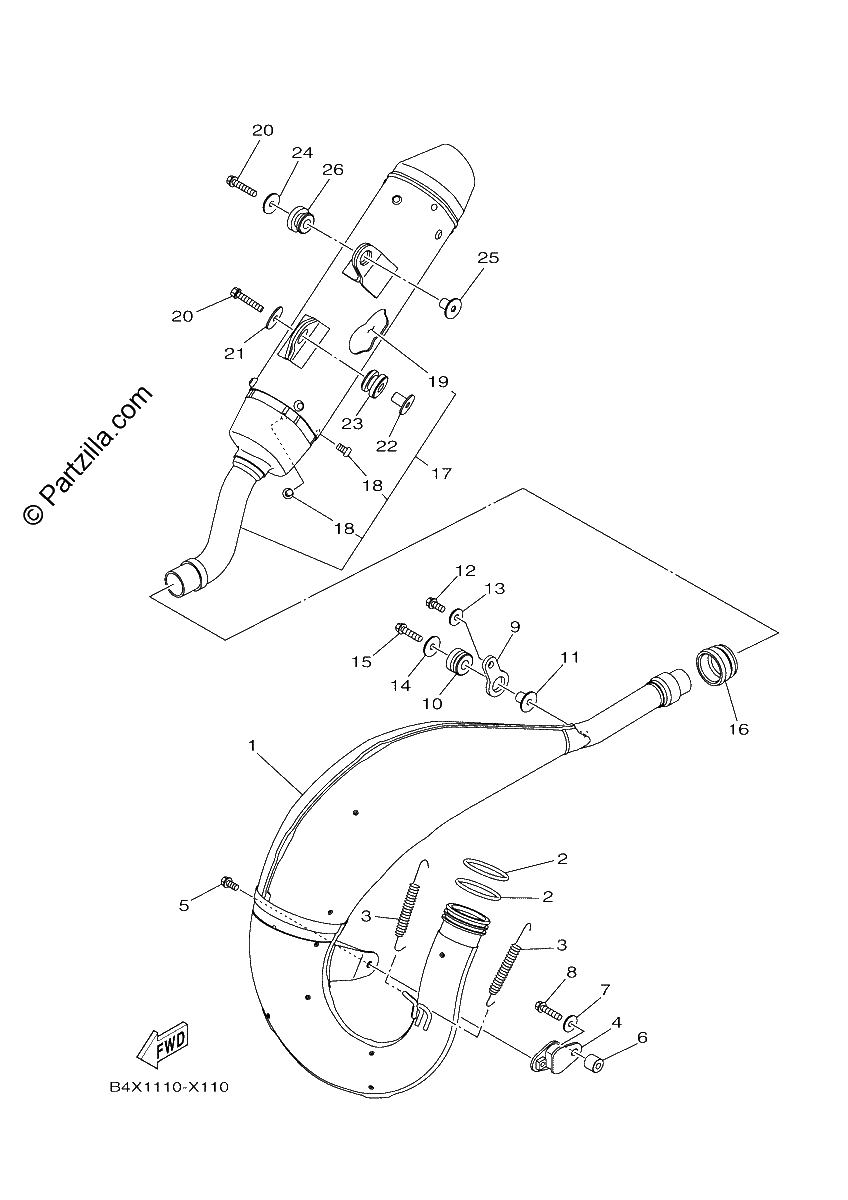

Diagrama de EXHAUST

Repuestos

#1
B4X-14610-10-00
EXHAUST PIPE ASSY 1
$443.79¢221 894
1
#2
93210-42728-00
O-RING
$17.49¢8 744
1
#3
90506-20018-00
SPRING, TENSION
$9.31¢4 656
1
#4
565-14771-01-00
STAY, MUFFLER 1
$19.88¢9 938
1
#5
95E32-06012-00
BOLT, FLANGE DEEP RECESS
$1.07¢538
1
#6
1C3-14763-00-00
SPACER
$6.57¢3 287
1
#7
90201-06077-00
WASHER, PLATE
$5.76¢2 881
1
#8
95E32-06025-00
BOLT, FLANGE DEEP RECESS
$0.59¢294
1
#9
B4X-14771-10-00
STAY, MUFFLER 1
$10.63¢5 313
1
#10
90480-16561-00
GROMMET
$17.49¢8 744
1
#11
90387-063G3-00
COLLAR (56R)
$7.48¢3 738
1
#12
95E32-06014-00
BOLT, FLANGE DEEP RECESS
$0.44¢219
1
#13
90201-06078-00
WASHER, PLATE
$6.52¢3 262
1
#14
90201-06033-00
WASHER, PLATE
$3.26¢1 631
1
#15
95E32-06025-00
BOLT, FLANGE DEEP RECESS
$0.59¢294
1
#16
4JY-14615-00-00
JOINT, EXHAUST 1
$62.39¢31 194
1
#17
B4X-14753-00-00
SILENCER, EXHAUST
$511.84¢255 919
1
#18
92012-06010-00
BOLT, BUTTON HEAD
$2.91¢1 456
1
#19
B4X-1469A-00-00
FIBER
$148.41¢74 206
1
#20
95E32-06030-00
BOLT, FLANGE DEEP RECESS
$0.85¢425
1
#21
90201-06086-00
WASHER, PLATE
$6.99¢3 494
1
#22
90387-06363-00
COLLAR
$11.54¢5 769
1
#23
90480-17004-00
GROMMET
$8.25¢4 125
1
#24
90201-06033-00
WASHER, PLATE
$3.26¢1 631
1
#25
90387-06039-00
COLLAR
$8.55¢4 275
1
#26
90480-16404-00
GROMMET
$7.34¢3 669
1
