INTAKE

⚠️ Verificar CantidadesRevisa el diagrama cuidadosamente. Si tu ensamble requiere múltiples unidades de un mismo número (ej: 6 tornillos idénticos), asegúrate de ajustar la cantidad de piezas manualmente antes de añadirlas al carrito.

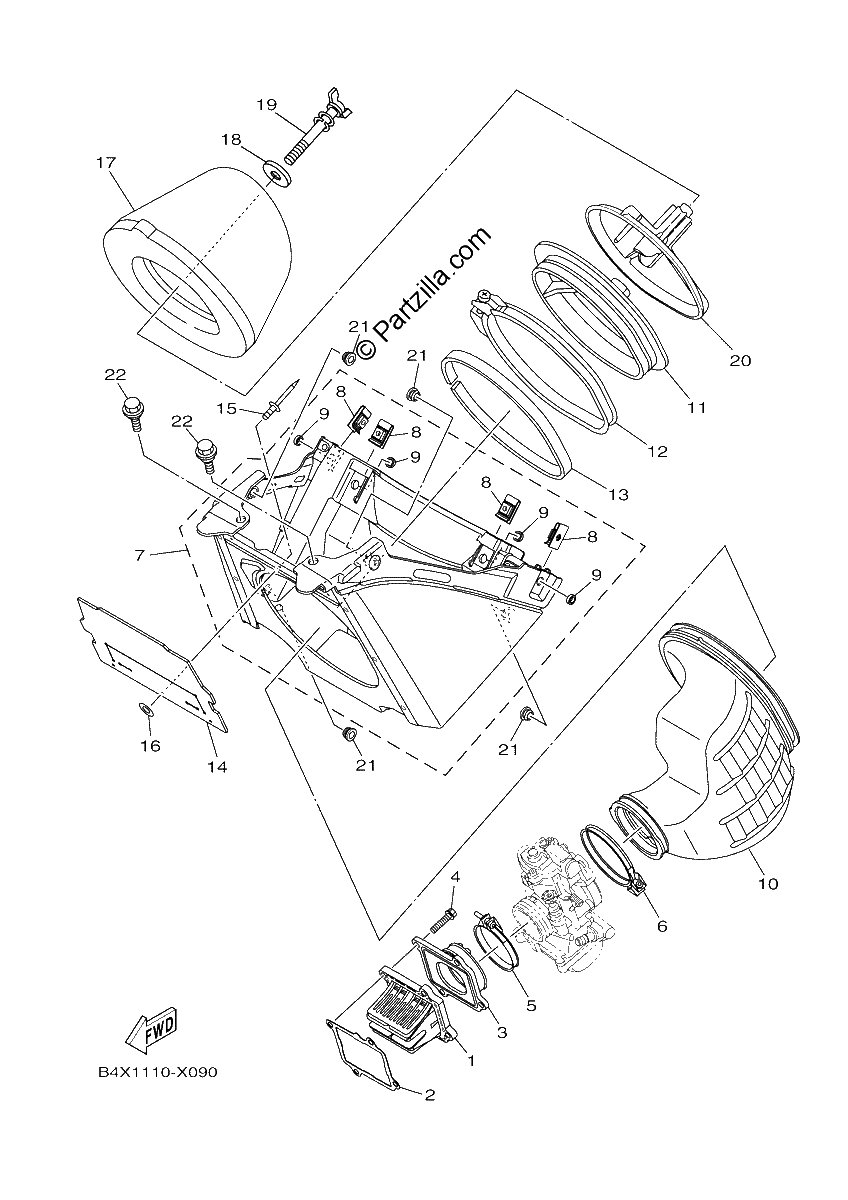

Diagrama de INTAKE

Repuestos

#1
B4X-13610-01-00
REED VALVE ASSY
$391.00¢195 500
1
#2
B4X-13621-00-00
GASKET, VALVE SEAT
$5.85¢2 925
1
#3
B4X-13565-00-00
JOINT, CARBURETOR
$52.58¢26 288
1
#4
95E32-06025-00
BOLT, FLANGE DEEP RECESS
$0.59¢294
1
#5
90450-54007-00
HOSE CLAMP ASSY
$14.64¢7 319
1
#6
90450-70002-00
HOSE CLAMP ASSY
$21.59¢10 794
1
#7
BCR-14401-00-00
AIR CLEANER CASE ASSY
$107.80¢53 900
1
#8
90183-060A7-00
NUT, SPRING
$7.72¢3 863
1
#9
90387-06069-00
COLLAR
$7.91¢3 956
1
#10
1C3-14453-11-00
JOINT, AIR CLEANER 1
$77.79¢38 894
1
#11
5NY-14459-00-00
HOLDER, GUIDE
$38.42¢19 213
1
#12
5NY-14455-20-00
BAND
$41.68¢20 838
1
#13
5NY-14442-00-00
SPACER
$24.33¢12 163
1
#14
BCR-1449E-00-00
COVER, AIR CLEANER
$28.01¢14 006
1
#15
90267-32196-00
Rivet, Blind
$1.06¢531
1
#16
90201-03313-00
WASHER, PLATE
$7.63¢3 813
1
#17
4XM-14451-01-00
ELEMENT, AIR CLEANER
$44.63¢22 313
1
#18
90209-06096-00
WASHER
$7.81¢3 906
1
#19
90122-06005-00
BOLT, WING
$8.19¢4 094
1
#20
BCR-14458-00-00
GUIDE
$15.76¢7 881
1
#21
90480-10M28-00
GROMMET
$3.57¢1 787
1
#22
90109-06245-00
BOLT
$5.65¢2 825
1
