RADIATOR HOSE

⚠️ Verificar CantidadesRevisa el diagrama cuidadosamente. Si tu ensamble requiere múltiples unidades de un mismo número (ej: 6 tornillos idénticos), asegúrate de ajustar la cantidad de piezas manualmente antes de añadirlas al carrito.

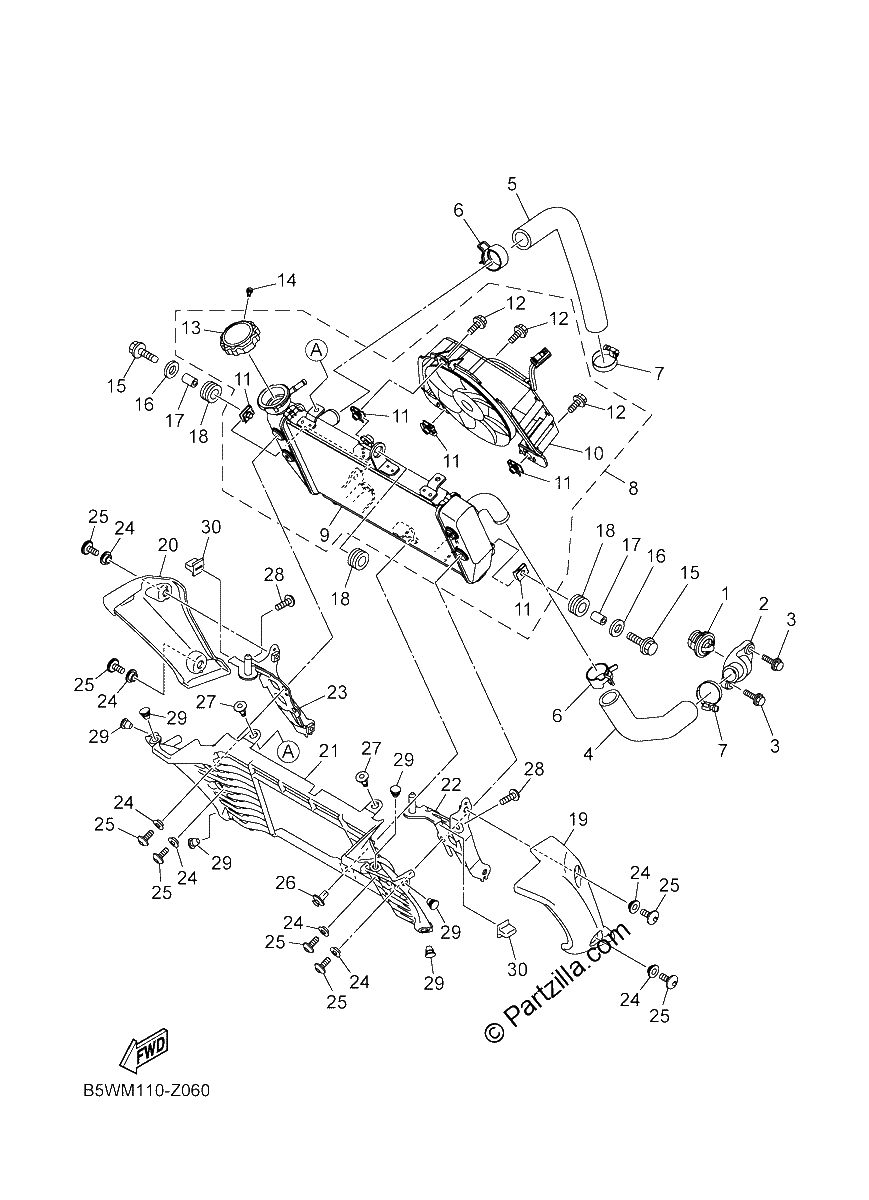

Diagrama de RADIATOR HOSE

Repuestos

#1
5P0-12411-01-00
THERMOSTAT
$33.55¢16 773
1
#2
1WD-E2413-00-00
COVER, THERMOSTAT
$25.16¢12 581
1
#3
95022-06020-00
BOLT, FLANGE
$3.65¢1 823
1
#4
2MS-E2577-00-00
HOSE 2
$9.99¢4 997
1
#5
1WD-E2578-00-00
HOSE 3
$16.95¢8 476
1
#6
90467-250A1-00
CLIP
$3.82¢1 909
1
#7
90450-28001-00
HOSE CLAMP ASSY
$13.74¢6 871
1
#8
B05-E2460-02-00
RADIATOR ASSY
$326.67¢163 335
1
#9
B04-E2461-00-00
RADIATOR COMP
$138.33¢69 167
1
#10
2MS-E2405-00-00
BLOWER ASSY
$177.09¢88 544
1
#11
1WD-E2671-00-00
NUT 1
$2.60¢1 299
1
#12
5YP-E2675-00-00
BOLT, BLOWER HOLDING
$4.23¢2 116
1
#13
B04-E2462-00-00
CAP, RADIATOR
$38.49¢19 245
1
#14
97707-30505-00
SCREW, TAPPING
$0.51¢253
1
#15
95827-06025-00
BOLT, FLANGE
$1.48¢742
1
#16
90201-06072-00
WASHER, PLATE
$7.01¢3 507
1
#17
90387-064W3-00
COLLAR
$5.78¢2 892
1
#18
90480-15808-00
GROMMET
$2.71¢1 357
1
#19
B9T-F137U-00-00
GUIDE, AIR 1
$7.04¢3 519
1
#20
B9T-F137V-00-00
GUIDE, AIR 2
$4.77¢2 386
1
#21
B9T-F1557-00-00
DUCT, AIR
$14.34¢7 170
1
#22
B9T-F175T-00-00
BRACKET 1
$16.95¢8 476
1
#23
B9T-F175U-00-00
BRACKET 2
$16.95¢8 476
1
#24
90387-06130-00
Collar
$7.93¢3 968
1
#25
90111-06151-00
BOLT, HEX. SOCKET BUTTON
$2.92¢1 461
1
#26
90269-07012-00
RIVET
$2.99¢1 495
1
#27
90269-06816-00
RIVET
$1.58¢788
1
#28
90160-05012-00
SCREW, ROUND TAPPING
$6.87¢3 433
1
#29
90338-06018-00
PLUG
$6.22¢3 111
1
#30
45P-F1778-00-00
DAMPER, LOCATING 1
$0.41¢207
1
