FENDER

⚠️ Verificar CantidadesRevisa el diagrama cuidadosamente. Si tu ensamble requiere múltiples unidades de un mismo número (ej: 6 tornillos idénticos), asegúrate de ajustar la cantidad de piezas manualmente antes de añadirlas al carrito.

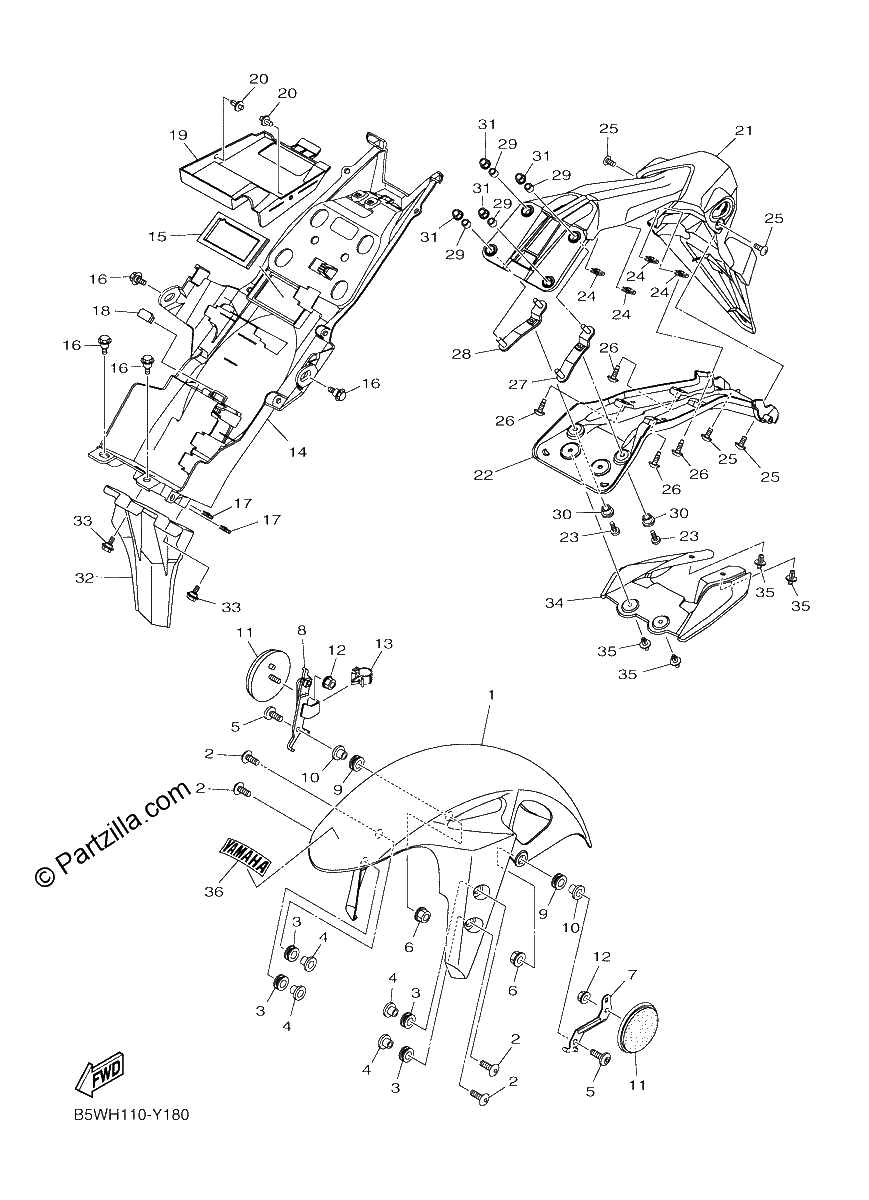

Diagrama de FENDER

Repuestos

#1
BS7-F1511-00-P9
FENDER, FRONT *{UR FOR MDNM8}*
$54.26¢27 129
1
#2
90111-06137-00
BOLT,HEX. SOCKET BUTTON
$5.23¢2 616
1
#3
90480-12808-00
GROMMET
$2.71¢1 357
1
#4
90387-06899-00
COLLAR
$2.70¢1 351
1
#5
90111-06847-00
BOLT, HEX. SOCKET BUTTON
$1.32¢661
1
#6
95702-06500-00
NUT, FLANGE
$2.24¢1 121
1
#7
B5L-F113J-00-00
BRACKET, REFLECTOR 1
$5.51¢2 754
1
#8
B5L-F113K-01-00
BRACKET, REFLECTOR 2
$21.15¢10 574
1
#9
90480-12808-00
GROMMET
$2.71¢1 357
1
#10
90387-06899-00
COLLAR
$2.70¢1 351
1
#11
2EK-85111-00-00
REFLECTOR, FRONT 1
$25.67¢12 834
1
#12
95702-05500-00
NUT,FLANGE (SILVER)
$0.84¢420
1
#13
90464-16006-00
CLAMP
$9.12¢4 560
1
#14
1WD-F1611-02-00
FENDER, REAR (replaces 1WD-F1611-01-00)
$49.17¢24 587
1
#15
1WD-F1669-00-00
SEAL
$3.14¢1 570
1
#16
90109-063F1-00
BOLT
$2.52¢1 259
1
#17
90183-05076-00
NUT, SPRING
$2.60¢1 299
1
#18
1WD-F16A2-00-00
SEAL, 2
$1.18¢592
1
#19
1WD-F163E-01-00
COVER, REAR FENDER 2
$11.26¢5 629
1
#20
90269-06816-00
RIVET
$1.58¢788
1
#21
B1X-F1629-00-00
GUARD, MUD
$30.57¢15 283
1
#22
1WD-F1617-01-00
BRACKET, FENDER
$15.96¢7 981
1
#23
90111-05021-00
BOLT,HEX. SOCKET BUT
$5.44¢2 720
1
#24
90183-050A7-00
NUT, SPRING
$2.86¢1 432
1
#25
97707-50016-00
SCREW, TRUSS HEAD TAPPING
$1.58¢788
1
#26
90111-05018-00
BOLT, HEX. SOCKET BUTTON
$6.46¢3 231
1
#27
1WD-F1688-00-00
BRACKET, REAR STAY
$7.31¢3 657
1
#28
1WD-F1689-00-00
BRACKET, REAR STAY 2
$26.45¢13 225
1
#29
90387-066J9-00
COLLAR
$8.18¢4 088
1
#30
90387-068L9-00
COLLAR
$2.60¢1 299
1
#31
95602-06200-00
NUT, SELF-LOCKING
$2.58¢1 288
1
#32
1WD-F1621-01-00
FLAP
$4.25¢2 128
1
#33
90109-05003-00
BOLT
$5.89¢2 944
1
#34
1WD-F163A-00-00
COVER, REAR FENDER 1
$4.60¢2 300
1
#35
90269-06816-00
RIVET
$1.58¢788
1
#36
5BP-F153E-E1-00
EMBLEM, YAMAHA *{UR FOR MDNM8}*
$1.62¢811
1
