SIDE COVER

⚠️ Verificar CantidadesRevisa el diagrama cuidadosamente. Si tu ensamble requiere múltiples unidades de un mismo número (ej: 6 tornillos idénticos), asegúrate de ajustar la cantidad de piezas manualmente antes de añadirlas al carrito.

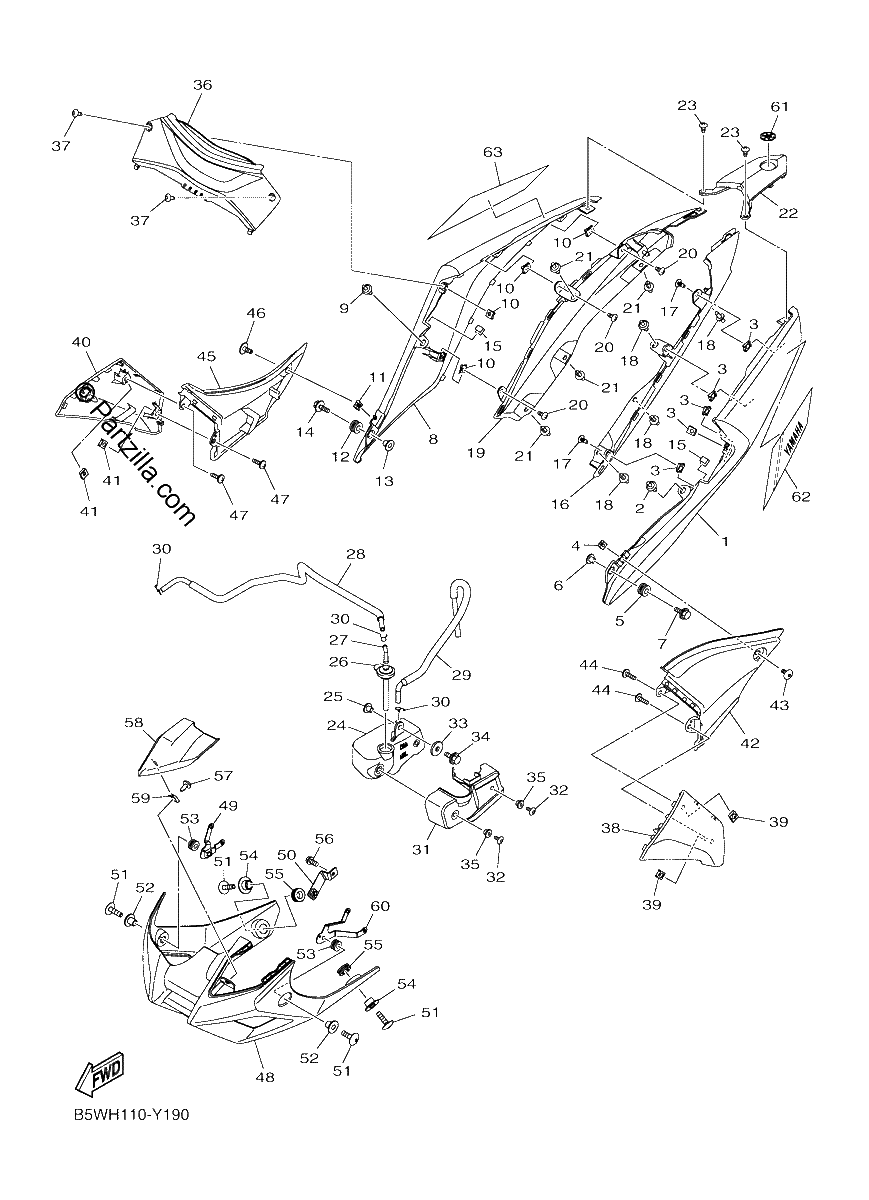

Diagrama de SIDE COVER

Repuestos

#1
1WD-F1711-00-PC
COVER, SIDE 1 (DEEP PURPLISH BLUE METALLIC C) *{UR FOR DPBMC,MDNM8}*
$34.45¢17 225
1
#2
90269-06816-00
RIVET
$1.71¢856
1
#3
90183-05807-00
NUT, SPRING
$1.25¢625
1
#4
90183-050A7-00
NUT, SPRING
$3.11¢1 556
1
#5
90480-12808-00
GROMMET
$2.95¢1 475
1
#6
90387-06899-00
COLLAR
$2.94¢1 469
1
#7
90119-06810-00
BOLT, WITH WASHER
$3.67¢1 838
1
#8
1WD-F1721-00-PC
COVER, SIDE 2 (DEEP PURPLISH BLUE METALLIC C) *{UR FOR DPBMC,MDNM8}*
$34.45¢17 225
1
#9
90269-06816-00
RIVET
$1.71¢856
1
#10
90183-05807-00
NUT, SPRING
$1.25¢625
1
#11
90183-050A7-00
NUT, SPRING
$3.11¢1 556
1
#12
90480-12808-00
GROMMET
$2.95¢1 475
1
#13
90387-06899-00
COLLAR
$2.94¢1 469
1
#14
90119-06810-00
BOLT, WITH WASHER
$3.67¢1 838
1
#15
31B-F8307-00-00
SEAL
$2.65¢1 325
1
#16
1WD-F171L-00-00
MOLE, SIDE COVER 1
$4.68¢2 338
1
#17
97707-50016-00
SCREW, TRUSS HEAD TAPPING
$1.71¢856
1
#18
90269-06816-00
RIVET
$1.71¢856
1
#19
1WD-F171M-00-00
MOLE, SIDE COVER 2
$17.49¢8 744
1
#20
97707-50016-00
SCREW, TRUSS HEAD TAPPING
$1.71¢856
1
#21
90269-06816-00
RIVET
$1.71¢856
1
#22
1WD-F171N-00-00
MOLE, SIDE COVER 3
$12.75¢6 375
1
#23
97707-50016-00
SCREW, TRUSS HEAD TAPPING
$1.71¢856
1
#24
1WD-F1871-01-00
TANK, RECOVERY (replaces 1WD-F1871-00-00)
$25.01¢12 506
1
#25
90387-06857-00
COLLAR
$1.29¢644
1
#26
1WD-F1875-01-00
CAP
$3.59¢1 794
1
#27
3C1-F1828-00-00
ELBOW
$26.14¢13 069
1
#28
1WD-F1816-02-00
PIPE 1
$11.17¢5 587
1
#29
1WD-F1817-01-00
PIPE 2
$7.05¢3 525
1
#30
90467-08003-00
CLIP
$7.50¢3 750
1
#31
BS7-F172W-00-00
Cover
$20.11¢10 056
1
#32
90111-05003-00
BOLT, HEX. SOCKET BUTTON
$7.34¢3 669
1
#33
90201-06380-00
WASHER PLAIN
$0.69¢344
1
#34
95807-06014-00
BOLT, FLANGE
$2.65¢1 325
1
#35
90560-06244-00
SPACER
$7.94¢3 969
1
#36
1WD-F1731-00-PA
COVER, SIDE 3
$15.59¢7 794
1
#37
90160-05810-00
SCREW, ROUND TAPPING
$1.89¢944
1
#38
B9T-F171E-00-P3
COVER, SIDE 5
$22.14¢11 069
1
#39
90183-05807-00
NUT, SPRING
$1.25¢625
1
#40
B9T-F171X-00-P3
COVER, SIDE 6
$24.60¢12 300
1
#41
90183-05807-00
NUT, SPRING
$1.25¢625
1
#42
B9T-F1716-00-00
LID, SIDE COVER
$13.64¢6 819
1
#43
90111-05003-00
BOLT, HEX. SOCKET BUTTON
$7.34¢3 669
1
#44
97702-50016-00
TAPPING SCREW
$2.36¢1 181
1
#45
B9T-F1726-00-00
LID, SIDE COVER 2
$9.91¢4 956
1
#46
90111-05003-00
BOLT, HEX. SOCKET BUTTON
$7.34¢3 669
1
#47
97702-50016-00
TAPPING SCREW
$2.36¢1 181
1
#48
B6W-F8385-00-P1
COVER, UNDER
$126.55¢63 275
1
#49
B04-F833F-00-00
BRACKET 9
$5.96¢2 981
1
#50
B04-F833G-00-00
BRACKET 10
$5.53¢2 763
1
#51
90111-06117-00
BOLT, HEX. SOCKET BUTTON
$1.75¢875
1
#52
90387-06899-00
COLLAR
$2.94¢1 469
1
#53
90480-12808-00
GROMMET
$2.95¢1 475
1
#54
90387-09801-00
COLLAR
$10.80¢5 400
1
#55
90480-18418-00
GROMMET
$8.24¢4 119
1
#56
95022-06012-00
BOLT, FLANGE
$3.57¢1 787
1
#57
97702-50012-00
SCREW, TAPPING
$3.85¢1 925
1
#58
B08-F842M-00-00
COVER 1
$20.11¢10 056
1
#59
90183-05807-00
NUT, SPRING
$1.25¢625
1
#60
B04-F833E-00-00
BRACKET 8
$7.91¢3 956
1
#61
1PA-F836B-20-00
TUNING FORK MARK
$6.36¢3 181
1
#62
B9T-F173E-50-00
.. GRAPHIC 1
$6.04¢3 019
1
#63
B9T-F173F-50-00
.. GRAPHIC 2
$5.07¢2 537
1
