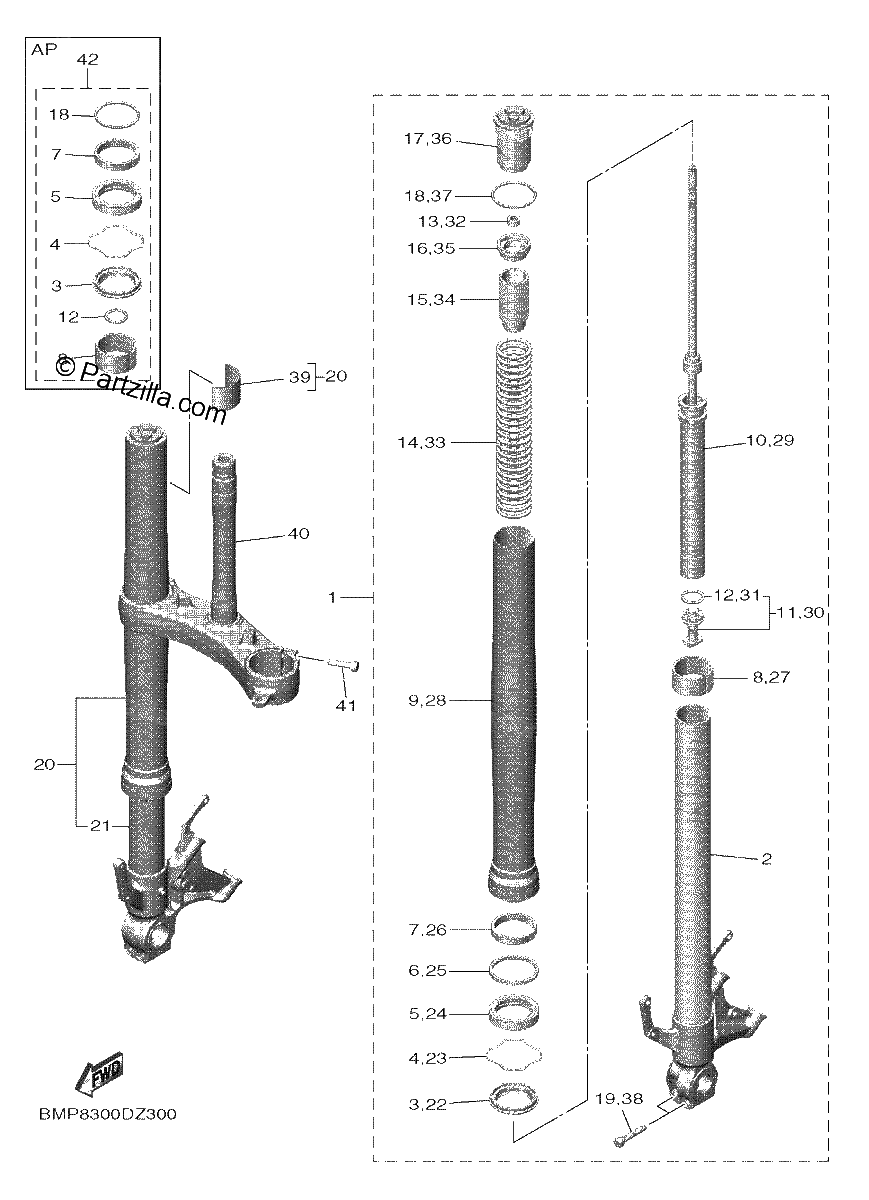

FRONT FORK
⚠️ Verificar CantidadesRevisa el diagrama cuidadosamente. Si tu ensamble requiere múltiples unidades de un mismo número (ej: 6 tornillos idénticos), asegúrate de ajustar la cantidad de piezas manualmente antes de añadirlas al carrito.
Repuestos
#1
FRONT FORK ASSY (L.H)
$1316.74¢658 369
#2
INNER TUBE COMP1
$461.32¢230 661
#3
SEAL, DUST
$22.10¢11 051
#4
RING, SNAP | (KYB)
$9.49¢4 744
#5
OIL SEAL
$22.99¢11 494
#6
WASHER, OIL SEAL
$17.39¢8 694
#7
METAL, SLIDE 1
$10.48¢5 238
#8
PISTON, FRONT FORK
$25.48¢12 742
#9
TUBE, OUTER 2 | UR FOR MNM3
$387.95¢193 976
#10
CYLINDER COMP., front fork
$382.71¢191 354
#11
VALVE COMP.
$200.41¢100 205
#12
. . O-Ring
$2.74¢1 368
#13
NUT
$7.28¢3 640
#14
SPRING, FRONT FORK
$31.39¢15 698
#15
SPACER
$11.71¢5 853
#16
GUIDE, SPRING
$12.07¢6 038
#17
BOLT, cap
$336.48¢168 239
#18
O-RING
$7.56¢3 778
#19
BOLT (3JP)
$5.75¢2 875
#20
FRONT FORK ASSY (R.H)
$1316.74¢658 369
#21
INNER TUBE COMP2
$461.32¢230 661
#22
SEAL, DUST
$22.10¢11 051
#23
RING, SNAP | (KYB)
$9.49¢4 744
#24
OIL SEAL
$22.99¢11 494
#25
WASHER, OIL SEAL
$17.39¢8 694
#26
METAL, SLIDE 1
$10.48¢5 238
#27
PISTON, FRONT FORK
$25.48¢12 742
#28
TUBE, OUTER 2 | UR FOR MNM3
$387.95¢193 976
#29
CYLINDER COMP., front fork
$382.71¢191 354
#30
VALVE COMP.
$200.41¢100 205
#31
. . O-Ring
$2.74¢1 368
#32
NUT
$7.28¢3 640
#33
SPRING, FRONT FORK
$31.39¢15 698
#34
SPACER
$11.71¢5 853
#35
GUIDE, SPRING
$12.07¢6 038
#36
BOLT, cap
$336.48¢168 239
#37
O-RING
$7.56¢3 778
#38
BOLT (3JP)
$5.75¢2 875
#39
PROTECTOR
$13.42¢6 710
#40
UNDER BRACKET COMP.
$634.82¢317 412
#41
BOLT, HEXAGON SOCKET HEAD
$2.51¢1 254
#42
FORK SEAL KIT
$63.38¢31 688
