COWLING 1

⚠️ Verificar CantidadesRevisa el diagrama cuidadosamente. Si tu ensamble requiere múltiples unidades de un mismo número (ej: 6 tornillos idénticos), asegúrate de ajustar la cantidad de piezas manualmente antes de añadirlas al carrito.

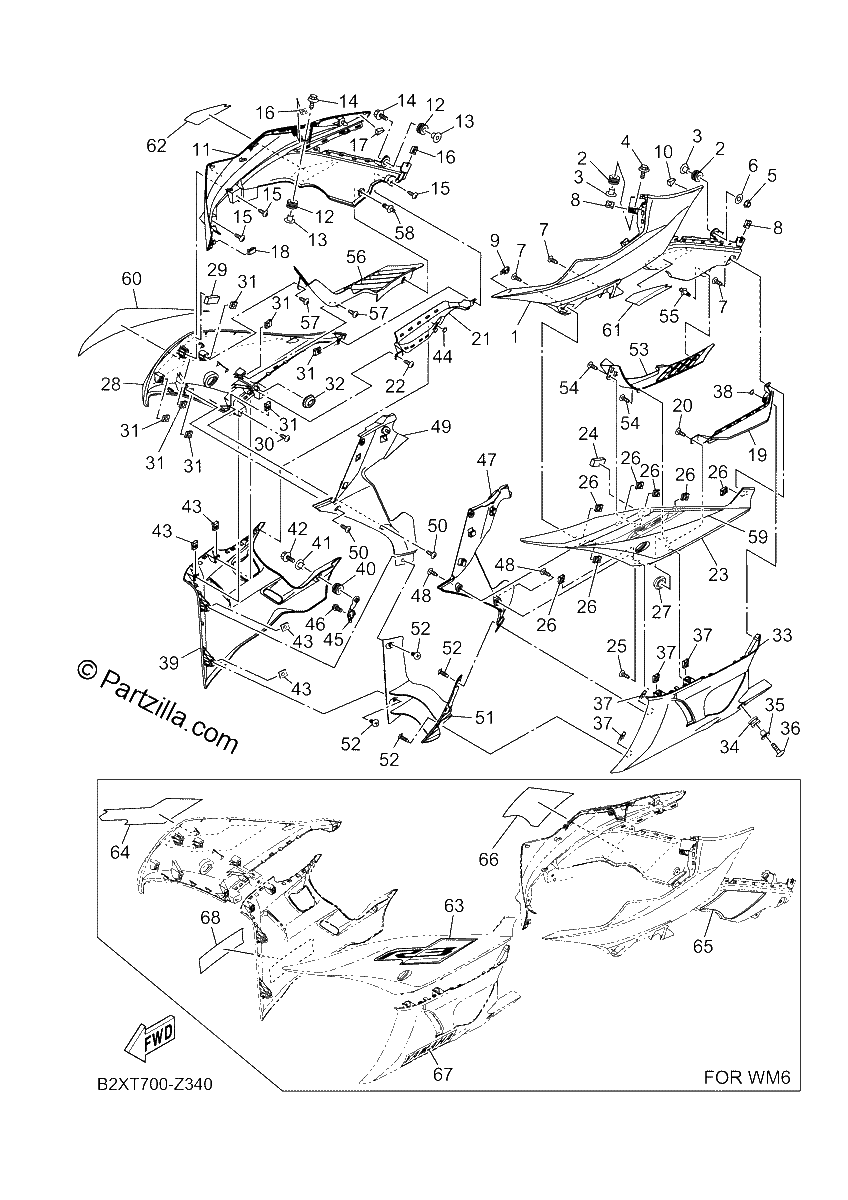

Diagrama de COWLING 1

Repuestos

#1
BS7-F172G-00-P5
PANEL 3 (WHITE METALLIC 6) *{UR MNM3 FOR WM6}*
$30.99¢15 496
1
#2
90480-12808-00
GROMMET
$2.71¢1 357
1
#3
90387-06899-00
COLLAR
$2.70¢1 351
1
#4
90119-06810-00
BOLT, WITH WASHER
$3.38¢1 691
1
#5
95702-06500-00
NUT, FLANGE
$2.24¢1 121
1
#6
90201-06380-00
WASHER PLAIN
$0.63¢316
1
#7
97702-50016-00
TAPPING SCREW
$2.17¢1 087
1
#8
90183-050A7-00
NUT, SPRING
$2.86¢1 432
1
#9
44D-F8379-00-00
HOOK
$5.65¢2 823
1
#10
BS7-F8415-00-00
DAMPER 1
$0.67¢333
1
#11
BS7-F172H-00-P5
PANEL 4 (WHITE METALLIC 6) *{UR MNM3 FOR WM6}*
$35.66¢17 831
1
#12
90480-12808-00
GROMMET
$2.71¢1 357
1
#13
90387-06899-00
COLLAR
$2.70¢1 351
1
#14
90119-06810-00
BOLT, WITH WASHER
$3.38¢1 691
1
#15
97702-50016-00
TAPPING SCREW
$2.17¢1 087
1
#16
90183-050A7-00
NUT, SPRING
$2.86¢1 432
1
#17
BS7-F8415-00-00
DAMPER 1
$0.67¢333
1
#18
44D-F8379-00-00
HOOK
$5.65¢2 823
1
#19
BS7-F117V-00-00
COVER 7
$15.21¢7 607
1
#20
97702-50016-00
TAPPING SCREW
$2.17¢1 087
1
#21
BS7-F117W-00-00
COVER 8
$7.38¢3 691
1
#22
97702-50016-00
TAPPING SCREW
$2.17¢1 087
1
#23
BS7-F835U-00-P4
PANEL 1
$33.07¢16 537
1
#24
5YT-24665-00-00
DAMPER
$6.99¢3 496
1
#25
97702-50016-00
TAPPING SCREW
$2.17¢1 087
1
#26
90183-05807-00
NUT, SPRING
$1.15¢575
1
#27
90480-01821-00
Grommet
$1.30¢650
1
#28
BS7-F835V-00-P4
PANEL 2
$31.31¢15 657
1
#29
5YT-24665-00-00
DAMPER
$6.99¢3 496
1
#30
97702-50016-00
TAPPING SCREW
$2.17¢1 087
1
#31
90183-05807-00
NUT, SPRING
$1.15¢575
1
#32
90480-01821-00
Grommet
$1.30¢650
1
#33
BS7-F8385-00-P4
COVER, UNDER
$61.69¢30 843
1
#34
90480-12808-00
GROMMET
$2.71¢1 357
1
#35
90387-06899-00
COLLAR
$2.70¢1 351
1
#36
90111-06117-00
BOLT, HEX. SOCKET BUTTON
$1.61¢805
1
#37
90183-05807-00
NUT, SPRING
$1.15¢575
1
#38
90183-05M02-00
NUT, SPRING
$0.46¢230
1
#39
B1X-F8395-00-P5
COVER, UNDER 2 (WHITE METALLIC 6) *{UR FOR WM6}*
$66.44¢33 218
1
#40
90480-12808-00
GROMMET
$2.71¢1 357
1
#41
90387-06899-00
COLLAR
$2.70¢1 351
1
#42
90111-06117-00
BOLT, HEX. SOCKET BUTTON
$1.61¢805
1
#43
90183-05807-00
NUT, SPRING
$1.15¢575
1
#44
90183-05M02-00
NUT, SPRING
$0.46¢230
1
#45
BS7-F833E-00-00
BRACKET 8
$18.50¢9 252
1
#46
95022-06012-00
BOLT, FLANGE
$3.29¢1 644
1
#47
BS7-F836K-00-00
PANEL, INNER 1
$12.60¢6 302
1
#48
97707-50016-00
SCREW, TRUSS HEAD TAPPING
$1.58¢788
1
#49
BS7-F836L-00-00
PANEL, INNER 2
$9.99¢4 997
1
#50
97707-50016-00
SCREW, TRUSS HEAD TAPPING
$1.58¢788
1
#51
BS7-F836M-00-00
PANEL, INNER 3
$25.22¢12 610
1
#52
97707-50016-00
SCREW, TRUSS HEAD TAPPING
$1.58¢788
1
#53
BS7-F837V-00-00
GRILL, AIR OUTLET 1
$16.54¢8 269
1
#54
97702-50016-00
TAPPING SCREW
$2.17¢1 087
1
#55
90269-06816-00
RIVET
$1.58¢788
1
#56
BS7-F837W-00-00
GRILL, AIR OUTLET 2
$15.87¢7 935
1
#57
97702-50016-00
TAPPING SCREW
$2.17¢1 087
1
#58
90269-06816-00
RIVET
$1.58¢788
1
#63
B5L-F8393-80-00
GRAPHIC 3 (WHITE METALLIC 6) *{FOR WM6}*
$26.01¢13 006
1
#64
B5L-F8394-80-00
GRAPHIC 4 (WHITE METALLIC 6) *{FOR WM6}*
$25.24¢12 621
1
#65
B5L-F8398-50-00
GRAPHIC 5 (WHITE METALLIC 6) *{FOR WM6}*
$15.32¢7 659
1
#66
B5L-F8399-50-00
GRAPHIC 6 (WHITE METALLIC 6) *{FOR WM6}*
$15.32¢7 659
1
#67
1WD-F8328-00-00
EMBLEM | Use for Color DEEP PURPLISH BLUE METALLIC C ( DPBMC / 0564 )
$1.82¢909
1
#68
1WD-F8328-00-00
EMBLEM | Use for Color DEEP PURPLISH BLUE METALLIC C ( DPBMC / 0564 )
$1.82¢909
1
