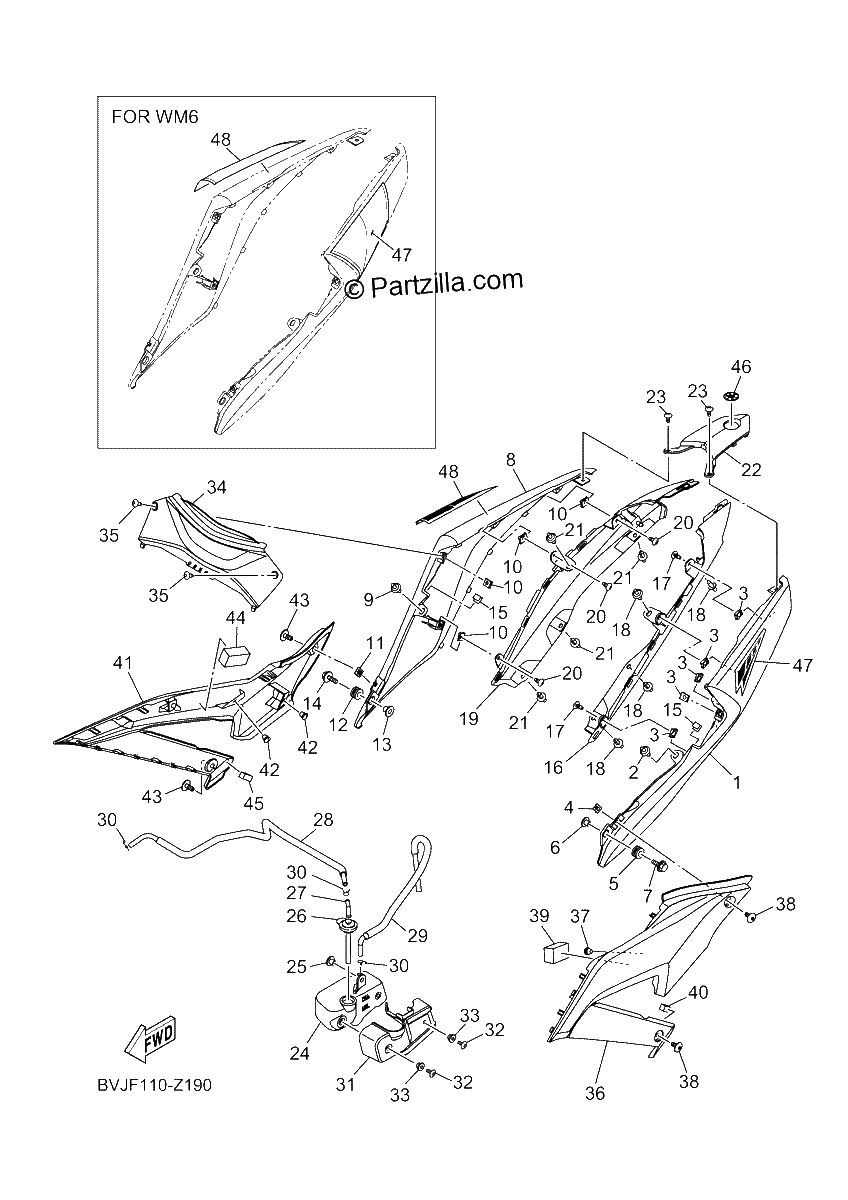

SIDE COVER
⚠️ Verificar CantidadesRevisa el diagrama cuidadosamente. Si tu ensamble requiere múltiples unidades de un mismo número (ej: 6 tornillos idénticos), asegúrate de ajustar la cantidad de piezas manualmente antes de añadirlas al carrito.
Repuestos
#1
COVER, SIDE 1 (WHITE METALLIC 6) *{UR MNM3 FOR WM6}*
$33.50¢16 750
#2
RIVET
$1.71¢856
#3
NUT, SPRING
$1.25¢625
#4
NUT, SPRING
$3.11¢1 556
#5
GROMMET
$2.95¢1 475
#6
COLLAR
$2.94¢1 469
#7
BOLT, WITH WASHER
$3.67¢1 838
#8
COVER, SIDE 2 (WHITE METALLIC 6) *{UR MNM3 FOR WM6}*
$33.50¢16 750
#9
RIVET
$1.71¢856
#10
NUT, SPRING
$1.25¢625
#11
NUT, SPRING
$3.11¢1 556
#12
GROMMET
$2.95¢1 475
#13
COLLAR
$2.94¢1 469
#14
BOLT, WITH WASHER
$3.67¢1 838
#15
SEAL
$2.65¢1 325
#16
MOLE, SIDE COVER 1
$4.68¢2 338
#17
SCREW, TRUSS HEAD TAPPING
$1.71¢856
#18
RIVET
$1.71¢856
#19
MOLE, SIDE COVER 2
$17.49¢8 744
#20
SCREW, TRUSS HEAD TAPPING
$1.71¢856
#21
RIVET
$1.71¢856
#22
MOLE, SIDE COVER 3
$12.75¢6 375
#23
SCREW, TRUSS HEAD TAPPING
$1.71¢856
#24
TANK, RECOVERY (replaces 1WD-F1871-00-00)
$25.01¢12 506
#25
COLLAR
$1.29¢644
#26
CAP
$3.59¢1 794
#27
ELBOW
$26.14¢13 069
#28
PIPE 1
$11.17¢5 587
#29
PIPE 2
$7.05¢3 525
#30
CLIP
$7.50¢3 750
#31
Cover
$20.11¢10 056
#32
BOLT, HEX. SOCKET BUTTON
$7.34¢3 669
#33
SPACER
$7.94¢3 969
#34
COVER, SIDE 3 | UR FOR MNM3
$15.51¢7 756
#35
SCREW, ROUND TAPPING
$1.89¢944
#36
COVER, SIDE 5
$30.25¢15 125
#37
PLUG
$6.76¢3 381
#38
BOLT, HEX. SOCKET BUTTON
$7.34¢3 669
#39
DAMPER, PLATE
$2.69¢1 344
#40
DAMPER, PLATE
$1.31¢656
#41
COVER, SIDE 6
$9.91¢4 956
#42
PLUG
$6.76¢3 381
#43
BOLT, HEX. SOCKET BUTTON
$7.34¢3 669
#44
DAMPER, PLATE
$2.69¢1 344
#45
DAMPER, PLATE
$1.31¢656
#46
TUNING FORK MARK
$6.36¢3 181
#47
GRAPHIC 1 (WHITE METALLIC 6) *{UR FOR WM6}*
$8.54¢4 269
#48
GRAPHIC 2 (WHITE METALLIC 6) *{UR FOR WM6}*
$8.54¢4 269
