STEERING

⚠️ Verificar CantidadesRevisa el diagrama cuidadosamente. Si tu ensamble requiere múltiples unidades de un mismo número (ej: 6 tornillos idénticos), asegúrate de ajustar la cantidad de piezas manualmente antes de añadirlas al carrito.

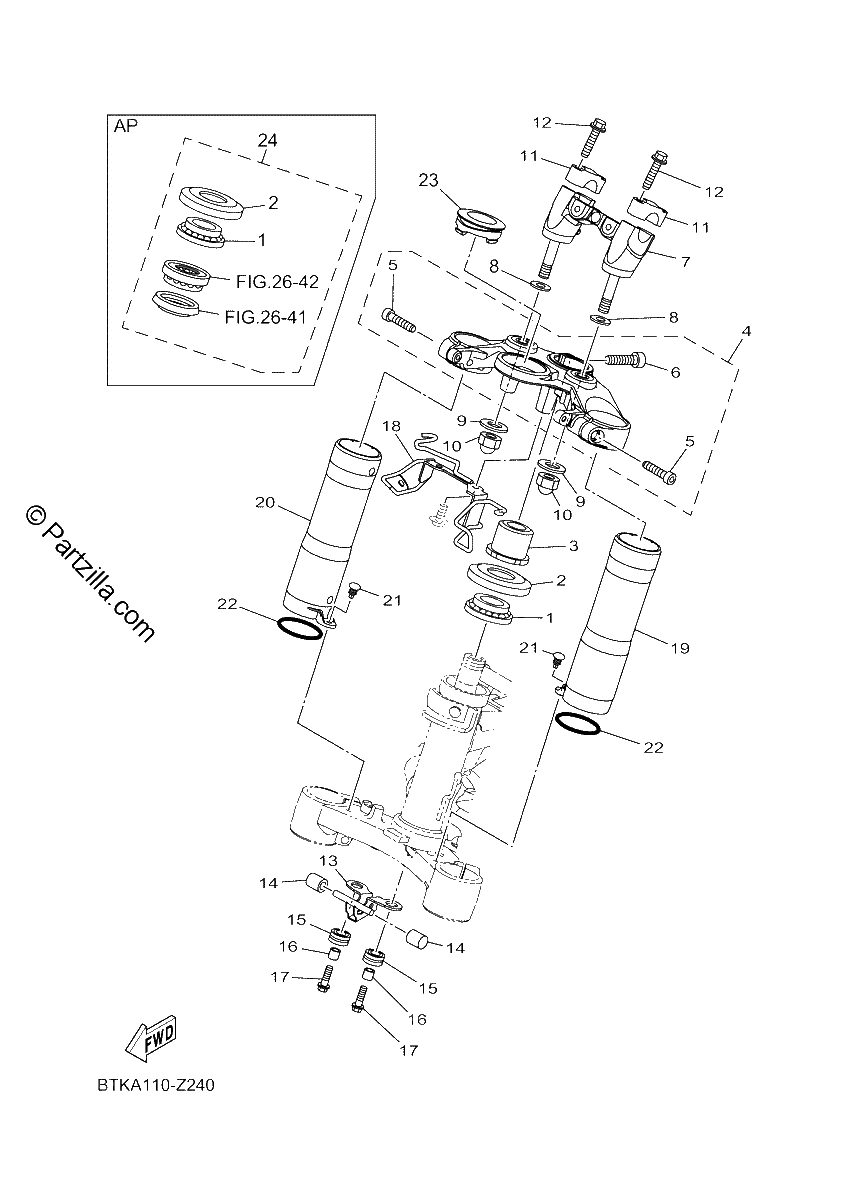

Diagrama de STEERING

Repuestos

#1
93399-99931-00
BEARING
$55.60¢27 801
1
#2
1W1-23416-00-00
COVER, BALL RACE 2
$28.30¢14 151
1
#3
1WS-23357-00-00
Nut
$42.71¢21 356
1
#4
BAT-23430-00-00
HANDLE CROWN COMP.
$210.92¢105 461
1
#5
91314-08030-00
BOLT, HEXAGON SOCKET HEAD
$2.51¢1 254
1
#6
90110-10057-00
. BOLT, HEXAGON SOCKET HEAD
$3.90¢1 949
1
#7
B34-F3442-01-00
HOLDER, HANDLE LOWER (replaces B34-F3442-00-00)
$188.63¢94 317
1
#8
92902-10200-00
WASHER
$3.14¢1 570
1
#9
90201-10043-00
WASHER, plate
$2.05¢1 023
1
#10
90176-10003-00
NUT, CROWN
$7.95¢3 973
1
#11
B34-F3441-01-00
HOLDER, HANDLE UPPER (replaces B34-F3441-00-00)
No Disponible
1
#12
91317-08030-00
BOLT
$6.75¢3 375
1
#13
BAT-2334G-00-00
BRACKET 1
$26.14¢13 070
1
#14
1WS-84527-00-00
Damper
$1.74¢868
1
#15
3C3-83513-00-00
Damper
$7.04¢3 519
1
#16
90387-06026-00
COLLAR
$7.58¢3 789
1
#17
95D37-06025-00
BOLT, FLANGE DEEP RECESS
$1.00¢500
1
#18
BAT-2334H-00-00
BRACKET 2
$52.22¢26 111
1
#19
1WS-23121-01-00
COVER, UPPER 1
$7.81¢3 904
1
#20
1WS-23131-01-00
COVER, UPPER 2
$7.38¢3 691
1
#21
90269-05055-00
RIVET,SPEC'L SHAPE
$7.67¢3 835
1
#22
93210-40M10-00
O-Ring
$5.83¢2 915
1
#23
36P-82552-00-00
CAP, SWITCH
$13.78¢6 889
1
#24
BVA-W000B-00-00
STEERING BEARING KIT *{AP}*
$148.65¢74 324
1
