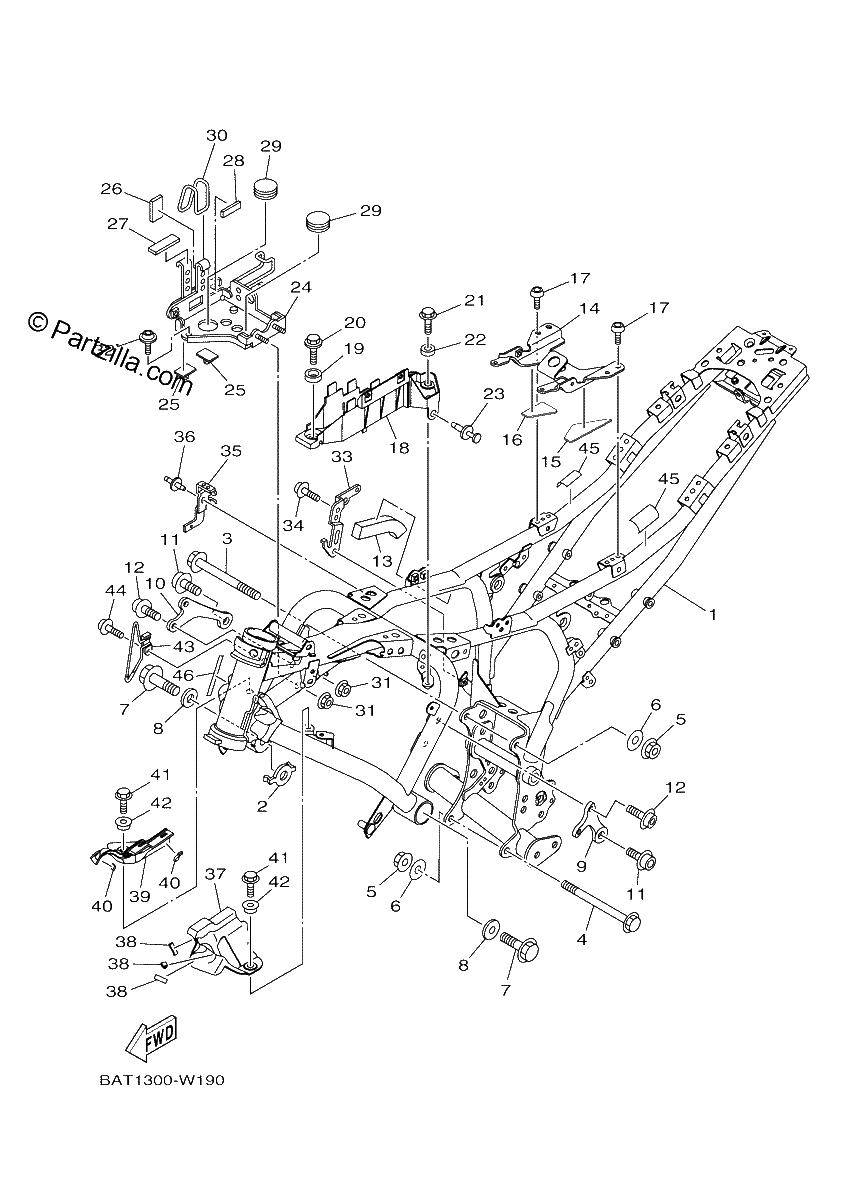

FRAME
⚠️ Verificar CantidadesRevisa el diagrama cuidadosamente. Si tu ensamble requiere múltiples unidades de un mismo número (ej: 6 tornillos idénticos), asegúrate de ajustar la cantidad de piezas manualmente antes de añadirlas al carrito.
Repuestos
#1
FRAME COMP.
$1989.49¢994 744
#2
PLATE 1
$17.34¢8 671
#3
Bolt, Flange
$6.29¢3 145
#4
BOLT, FLANGE
$14.88¢7 440
#5
NUT
$9.63¢4 813
#6
WASHER, plate
$3.91¢1 955
#7
BOLT, FLANGE
$13.01¢6 503
#8
WASHER, PLATE
$3.32¢1 662
#9
STAY, ENGINE 1
$17.46¢8 728
#10
STAY, ENGINE 2
$17.46¢8 728
#11
BOLT, HEXAGON SOCKET HEAD
$4.52¢2 260
#12
BOLT, HEXAGON SOCKET HEAD
$3.20¢1 598
#13
DAMPER, PLATE
$6.87¢3 433
#14
BRACKET, SEAT FITTING
$60.97¢30 487
#15
SEAT 1
$4.40¢2 202
#16
SHEET,2
$4.57¢2 283
#17
BOLT, BUTTON HEAD
$2.68¢1 340
#18
COVER 3
$9.58¢4 790
#19
COLLAR
$3.42¢1 708
#20
BOLT, WITH WASHER
$6.16¢3 082
#21
BLOT, FLANGE DEEP RECESS
$6.82¢3 410
#22
COLLAR
$5.93¢2 967
#23
RIVET
$6.75¢3 375
#24
BRACKET
$69.63¢34 816
#25
CLAMP
$11.02¢5 509
#26
DAMPER, PLATE
$0.83¢414
#27
DAMPER, SEAT
$4.69¢2 346
#28
DAMPER
$5.93¢2 967
#29
GROMMET
$10.44¢5 221
#30
BAND, TOOL
$11.53¢5 767
#31
NUT, FLANGE
$2.24¢1 121
#32
BOLT, HEX. SOCKET BUTTON
$4.81¢2 403
#33
BRACKET 8
$6.00¢3 001
#34
BOLT, BUTTON HEAD
$3.36¢1 679
#35
BRACKET 2
$35.21¢17 607
#36
RIVET
$7.59¢3 795
#37
COVER 4
$6.64¢3 318
#38
PLATE, DAMPER
$7.23¢3 617
#39
COVER 5
$5.34¢2 668
#40
PLATE, DAMPER
$7.23¢3 617
#41
BOLT, FLANGE DEEP RECESS
$0.38¢190
#42
COLLAR
$7.24¢3 622
#43
GUIDE, CABLE
$20.93¢10 465
#44
BOLT,FLANGE(4MY)
$2.71¢1 357
#45
SEAL
$13.74¢6 871
#46
PROTECTOR, FUEL TANK
$12.62¢6 308
