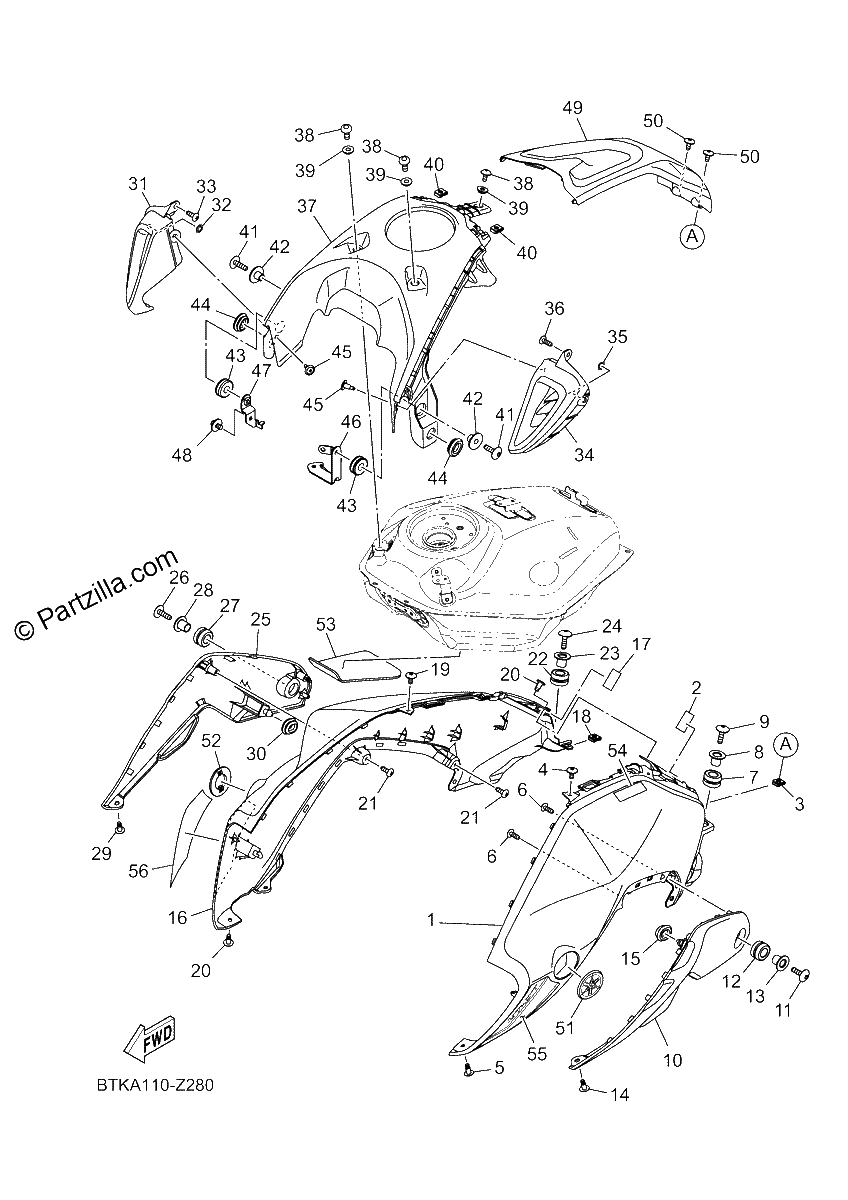

Diagrama de FUEL TANK 2

Repuestos

#1
BAT-24129-00-P0
COVER, SIDE 1 (DEEP PURPLISH BLUE METALLIC C) *{UR FOR DPBMC}*
$87.00¢43 499
1
#2
D49-2117G-00-00
PROTECTOR
$9.30¢4 652
1
#3
90183-05076-00
NUT, SPRING
$2.60¢1 299
1
#4
90111-05003-00
BOLT, HEX. SOCKET BUTTON
$6.75¢3 375
1
#5
90269-06019-00
RIVET
$3.19¢1 593
1
#6
90160-05012-00
SCREW, ROUND TAPPING
$6.87¢3 433
1
#7
90480-17007-00
GROMMET
$6.92¢3 461
1
#8
90387-10107-00
COLLAR
$4.98¢2 490
1
#9
90110-06087-00
BOLT, HEXAGON SOCKET HEAD
$4.13¢2 064
1
#10
BAT-24121-00-00
SEAT, KNEE GRIP 1
$20.63¢10 316
1
#11
90110-06087-00
BOLT, HEXAGON SOCKET HEAD
$4.13¢2 064
1
#12
90480-17007-00
GROMMET
$6.92¢3 461
1
#13
90387-10107-00
COLLAR
$4.98¢2 490
1
#14
90269-06019-00
RIVET
$3.19¢1 593
1
#15
90480-01558-00
Grommet
$4.31¢2 156
1
#16
BAT-24139-00-P0
COVER, SIDE 2 (DEEP PURPLISH BLUE METALLIC C) *{UR FOR DPBMC}*
$87.00¢43 499
1
#17
D49-2117G-00-00
PROTECTOR
$9.30¢4 652
1
#18
90183-05076-00
NUT, SPRING
$2.60¢1 299
1
#19
90111-05003-00
BOLT, HEX. SOCKET BUTTON
$6.75¢3 375
1
#20
90269-06019-00
RIVET
$3.19¢1 593
1
#21
90160-05012-00
SCREW, ROUND TAPPING
$6.87¢3 433
1
#22
90480-17007-00
GROMMET
$6.92¢3 461
1
#23
90387-10107-00
COLLAR
$4.98¢2 490
1
#24
90110-06087-00
BOLT, HEXAGON SOCKET HEAD
$4.13¢2 064
1
#25
BAT-24122-00-00
SEAT, KNEE GRIP 2
$20.63¢10 316
1
#26
90110-06087-00
BOLT, HEXAGON SOCKET HEAD
$4.13¢2 064
1
#27
90480-17007-00
GROMMET
$6.92¢3 461
1
#28
90387-10107-00
COLLAR
$4.98¢2 490
1
#29
90269-06019-00
RIVET
$3.19¢1 593
1
#30
90480-01558-00
Grommet
$4.31¢2 156
1
#31
BAT-2137X-00-00
SCOOP, AIR 2
$18.81¢9 407
1
#32
90183-05M02-00
NUT, SPRING
$0.46¢230
1
#33
90160-05012-00
SCREW, ROUND TAPPING
$6.87¢3 433
1
#34
BAT-2137W-00-00
SCOOP, AIR 1
$19.27¢9 637
1
#35
90183-05M02-00
NUT, SPRING
$0.46¢230
1
#36
90160-05012-00
SCREW, ROUND TAPPING
$6.87¢3 433
1
#37
BAT-2464E-00-00
COVER, CAP
$47.84¢23 920
1
#38
90111-05002-00
BOLT, HEX. SOCKET BUTTON
$5.69¢2 846
1
#39
90387-05071-00
COLLAR
$3.30¢1 650
1
#40
90183-05076-00
NUT, SPRING
$2.60¢1 299
1
#41
90111-06084-00
BOLT, HEX. SOCKET BUTTON
$5.39¢2 697
1
#42
90387-07042-00
COLLAR
$4.54¢2 271
1
#43
90480-14452-00
GROMMET
$7.30¢3 651
1
#44
90480-01559-00
Grommet
$5.27¢2 633
1
#45
90269-06081-00
RIVET
$6.23¢3 117
1
#46
BAT-2463E-00-00
BRACKET, CAP
$9.07¢4 537
1
#47
BAT-2412F-00-00
BRACKET, SEAT
$6.82¢3 410
1
#48
90111-06122-00
BOLT, HEX. SOCKET BUTTON
$4.81¢2 403
1
#49
BAT-2171A-00-00
COVER, TOP
$35.78¢17 888
1
#50
90111-05003-00
BOLT, HEX. SOCKET BUTTON
$6.75¢3 375
1
#51
1RC-2413B-01-00
EMBLEM (replaces 1RC-2413B-00-00)
$21.98¢10 988
1
#52
1RC-2413B-01-00
EMBLEM (replaces 1RC-2413B-00-00)
$21.98¢10 988
1
#53
B2G-2315J-00-00
PROTECTOR 2
$20.56¢10 281
1
#54
1TP-2118K-A2-00
. LABEL, CAUTION
$6.59¢3 295
1
#55
BAT-217F1-30-00
GRAPHIC, 1 (DEEP PURPLISH BLUE METALLIC C) *{UR FOR DPBMC}*
$13.32¢6 658
1
#56
BAT-217F2-30-00
GRAPHIC, 2 (DEEP PURPLISH BLUE METALLIC C) *{UR FOR DPBMC}*
$13.32¢6 658
1
