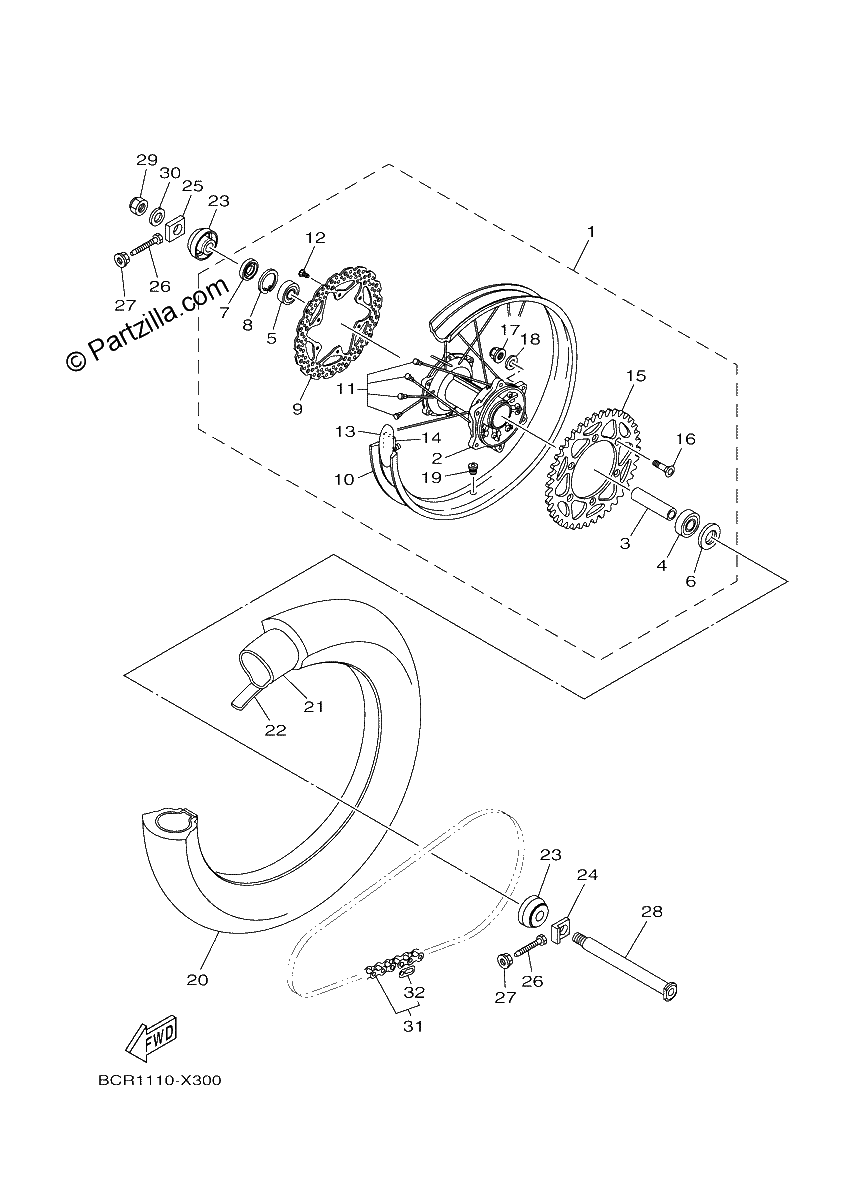

REAR WHEEL
⚠️ Verificar CantidadesRevisa el diagrama cuidadosamente. Si tu ensamble requiere múltiples unidades de un mismo número (ej: 6 tornillos idénticos), asegúrate de ajustar la cantidad de piezas manualmente antes de añadirlas al carrito.
Repuestos
#1
REAR WHEEL SUB-ASSY
$574.99¢287 494
#2
HUB, REAR
$293.20¢146 602
#3
SPACER, BEARING
$46.98¢23 489
#4
BEARING
$72.21¢36 104
#5
BEARING
$36.97¢18 486
#6
OIL SEAL
$10.97¢5 485
#7
OIL SEAL
$8.69¢4 347
#8
CIRCLIP
$2.74¢1 368
#9
DISK, REAR BRAKE 2
$127.89¢63 946
#10
RIM (1.85-19)
$301.24¢150 621
#11
SPOKE SET, REAR
$252.94¢126 471
#12
SCREW, COUNTERSUNK
$2.92¢1 461
#13
SPACER,BEAD
$58.64¢29 319
#14
Damper
$7.28¢3 640
#15
SPROCKET, DRIVEN (51T)
$90.84¢45 419
#15
SPROCKET, DRIVEN (50T)
$51.22¢25 611
#15
SPROCKET, DRIVEN (49T)
$93.14¢46 569
#15
SPROCKET, DRIVEN (47T)
$78.29¢39 146
#15
SPROCKET, DRIVEN (48T)
$99.91¢49 956
#15
SPROCKET, DRIVEN (52T)
$103.49¢51 744
#16
bolt
$3.12¢1 558
#17
NUT, SELF-LOCKING
$6.59¢3 295
#18
WASHER, plate
$6.32¢3 162
#19
GROMMET
$7.42¢3 709
#20
TIRE (100/90-19 57M X20R)
$149.49¢74 744
#21
TUBE (80/100-19 M/C TR4)
$46.47¢23 236
#22
BAND, RIM (1.85-19)
$13.71¢6 854
#23
COLLAR ASSY
$31.98¢15 991
#24
PULLER, CHAIN 1
$22.23¢11 115
#25
PULLER, CHAIN 2
$27.31¢13 656
#26
bolt
$7.37¢3 686
#27
Nut
$5.73¢2 864
#28
AXLE, WHEEL
$90.13¢45 063
#29
NUT, SELF-LOCKING
$24.84¢12 420
#30
WASHER, PLATE
$8.41¢4 203
#31
CHAIN(DID520DMS SDH G&B 112LL)
$189.81¢94 904
#32
JOINT, CHAIN(DID520DMS G RJ)
$5.40¢2 702
