OIL PUMP

⚠️ Verificar CantidadesRevisa el diagrama cuidadosamente. Si tu ensamble requiere múltiples unidades de un mismo número (ej: 6 tornillos idénticos), asegúrate de ajustar la cantidad de piezas manualmente antes de añadirlas al carrito.

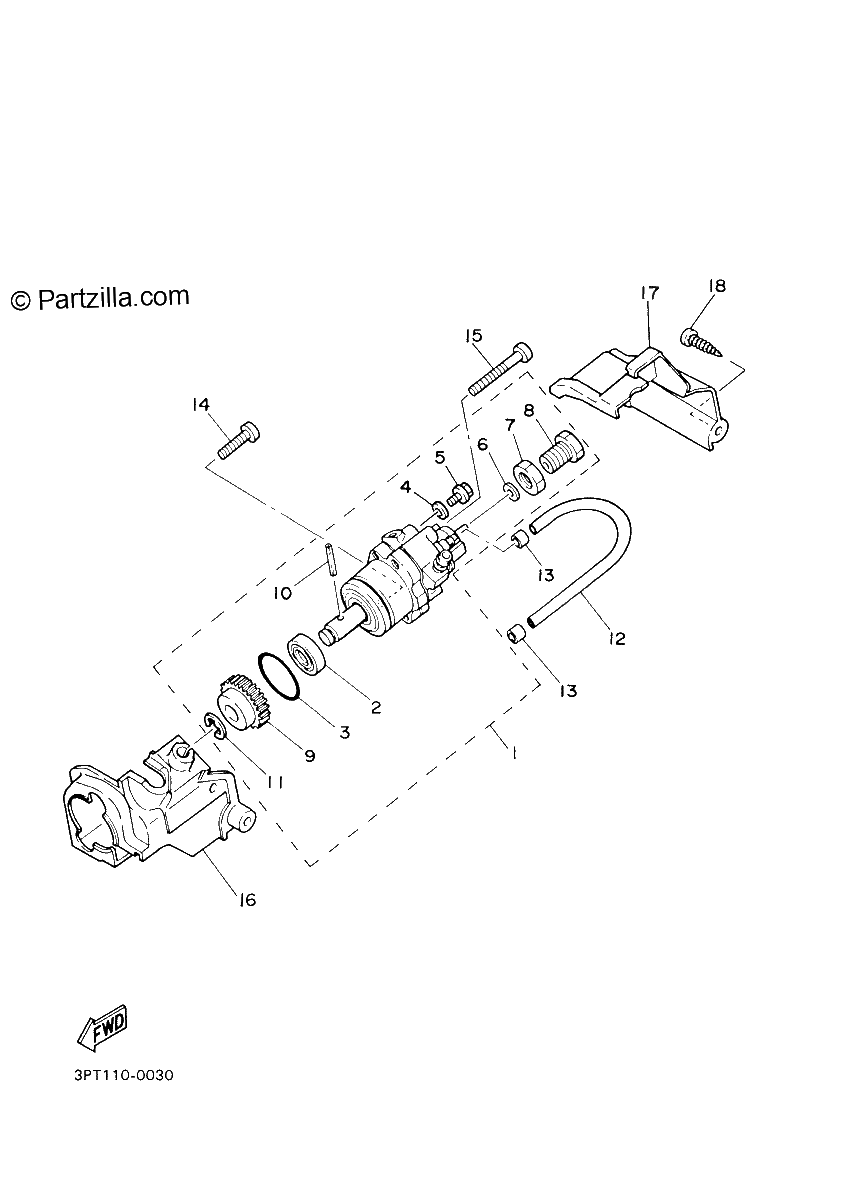

Diagrama de OIL PUMP

Repuestos

#1
3L5-13101-01-00
OIL PUMP ASSY
$288.07¢144 038
1
#2
93101-10001-00
OIL SEAL
$7.34¢3 669
1
#3
93210-26240-00
O-RING
$8.10¢4 050
1
#4
90430-04004-00
GASKET
$8.16¢4 081
1
#5
90149-04135-00
SCREW
$1.20¢600
1
#6
384-13138-00-00
PLATE, ADJUSTING
$6.55¢3 275
1
#7
90170-10105-00
NUT
$3.94¢1 969
1
#8
90401-10029-00
BOLT, UNION
$8.34¢4 169
1
#9
3L5-13124-00-00
GEAR, WORM WHEEL (56T)
$30.00¢15 000
1
#10
91609-30014-00
PIN, SPRING
$7.21¢3 606
1
#11
93430-07012-00
CIRCLIP
$3.60¢1 800
1
#12
3L5-13161-00-00
PIPE, DELIVERY 1
$7.85¢3 925
1
#13
90468-02033-00
CLIP
$6.25¢3 125
1
#14
98507-05020-00
SCREW, PAN HEAD
$1.61¢806
1
#15
98507-05035-00
SCREW, PAN HEAD
$7.95¢3 975
1
#16
3L5-15416-00-00
COVER,OIL PUMP
$27.95¢13 975
1
#17
3L5-15426-00-00
COVER, OIL PUMP 2
$10.39¢5 194
1
#18
97707-50115-00
SCREW, TAPPING
$0.64¢319
1
