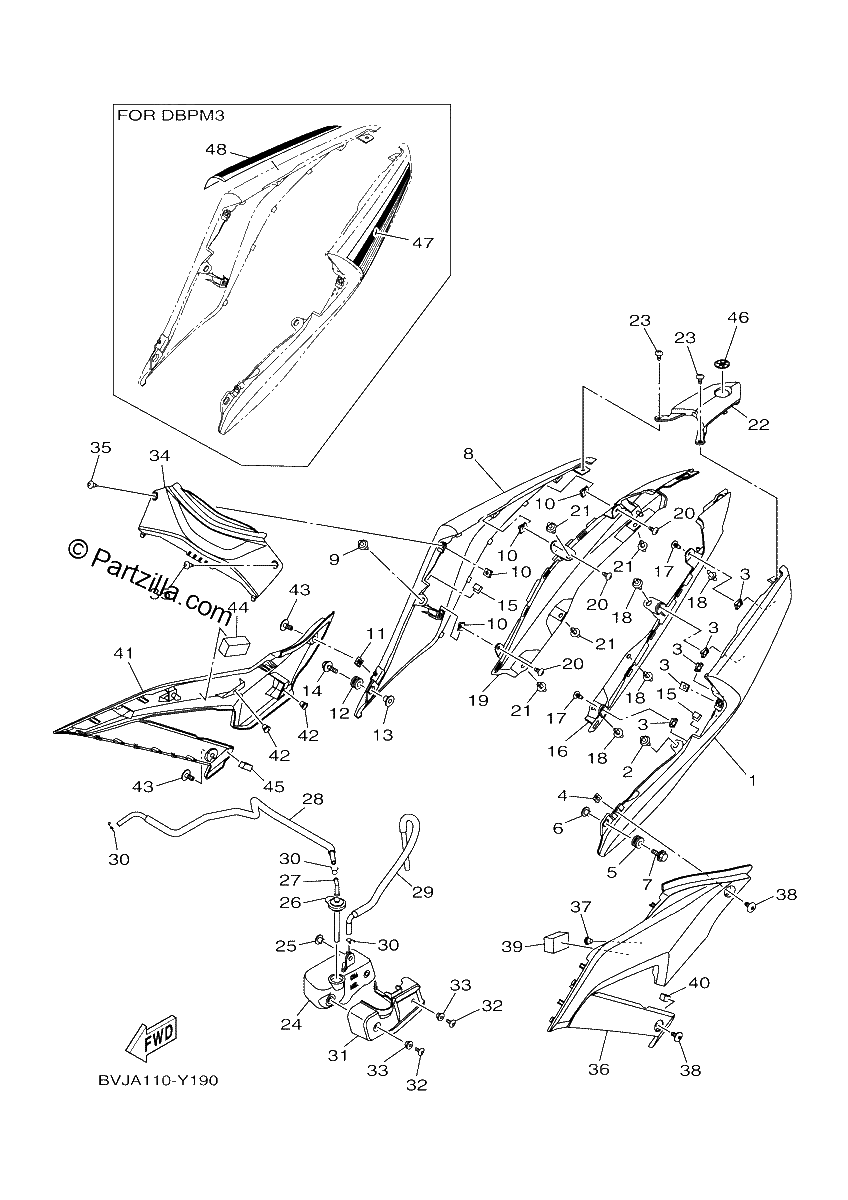

SIDE COVER
⚠️ Verificar CantidadesRevisa el diagrama cuidadosamente. Si tu ensamble requiere múltiples unidades de un mismo número (ej: 6 tornillos idénticos), asegúrate de ajustar la cantidad de piezas manualmente antes de añadirlas al carrito.
Repuestos
#1
COVER, SIDE 1 (DEEP PURPLISH BLUE METALLIC C) *{FOR DPBMC}*
$31.08¢15 542
#2
RIVET
$1.58¢788
#3
NUT, SPRING
$1.15¢575
#4
NUT, SPRING
$2.86¢1 432
#5
GROMMET
$2.71¢1 357
#6
COLLAR
$2.70¢1 351
#7
BOLT, WITH WASHER
$3.38¢1 691
#8
COVER, SIDE 2 (DEEP PURPLISH BLUE METALLIC C) *{FOR DPBMC}*
$30.96¢15 479
#9
RIVET
$1.58¢788
#10
NUT, SPRING
$1.15¢575
#11
NUT, SPRING
$2.86¢1 432
#12
GROMMET
$2.71¢1 357
#13
COLLAR
$2.70¢1 351
#14
BOLT, WITH WASHER
$3.38¢1 691
#15
SEAL
$2.44¢1 219
#16
MOLE, SIDE COVER 1
$4.30¢2 151
#17
SCREW, TRUSS HEAD TAPPING
$1.58¢788
#18
RIVET
$1.58¢788
#19
MOLE, SIDE COVER 2
$16.09¢8 044
#20
SCREW, TRUSS HEAD TAPPING
$1.58¢788
#21
RIVET
$1.58¢788
#22
MOLE, SIDE COVER 3
$11.73¢5 865
#23
SCREW, TRUSS HEAD TAPPING
$1.58¢788
#24
TANK, RECOVERY (replaces 1WD-F1871-00-00)
$23.01¢11 506
#25
COLLAR
$1.18¢592
#26
CAP
$3.30¢1 650
#27
ELBOW
$24.05¢12 023
#28
PIPE 1
$10.28¢5 140
#29
PIPE 2
$6.49¢3 243
#30
CLIP
$6.90¢3 450
#31
Cover
$18.50¢9 252
#32
BOLT, HEX. SOCKET BUTTON
$6.75¢3 375
#33
SPACER
$7.30¢3 651
#34
COVER, SIDE 3 | Use for Color DEEP PURPLISH BLUE METALLIC C ( DPBMC / 0564 )
$40.01¢20 004
#35
SCREW, ROUND TAPPING
$1.74¢868
#36
COVER, SIDE 5
$27.83¢13 915
#37
PLUG
$6.22¢3 111
#38
BOLT, HEX. SOCKET BUTTON
$6.75¢3 375
#39
DAMPER, PLATE
$2.47¢1 236
#40
DAMPER, PLATE
$1.21¢604
#41
COVER, SIDE 6
$9.12¢4 560
#42
PLUG
$6.22¢3 111
#43
BOLT, HEX. SOCKET BUTTON
$6.75¢3 375
#44
DAMPER, PLATE
$2.47¢1 236
#45
DAMPER, PLATE
$1.21¢604
#46
TUNING FORK MARK
$5.85¢2 927
