WINDSHIELD

⚠️ Verificar CantidadesRevisa el diagrama cuidadosamente. Si tu ensamble requiere múltiples unidades de un mismo número (ej: 6 tornillos idénticos), asegúrate de ajustar la cantidad de piezas manualmente antes de añadirlas al carrito.

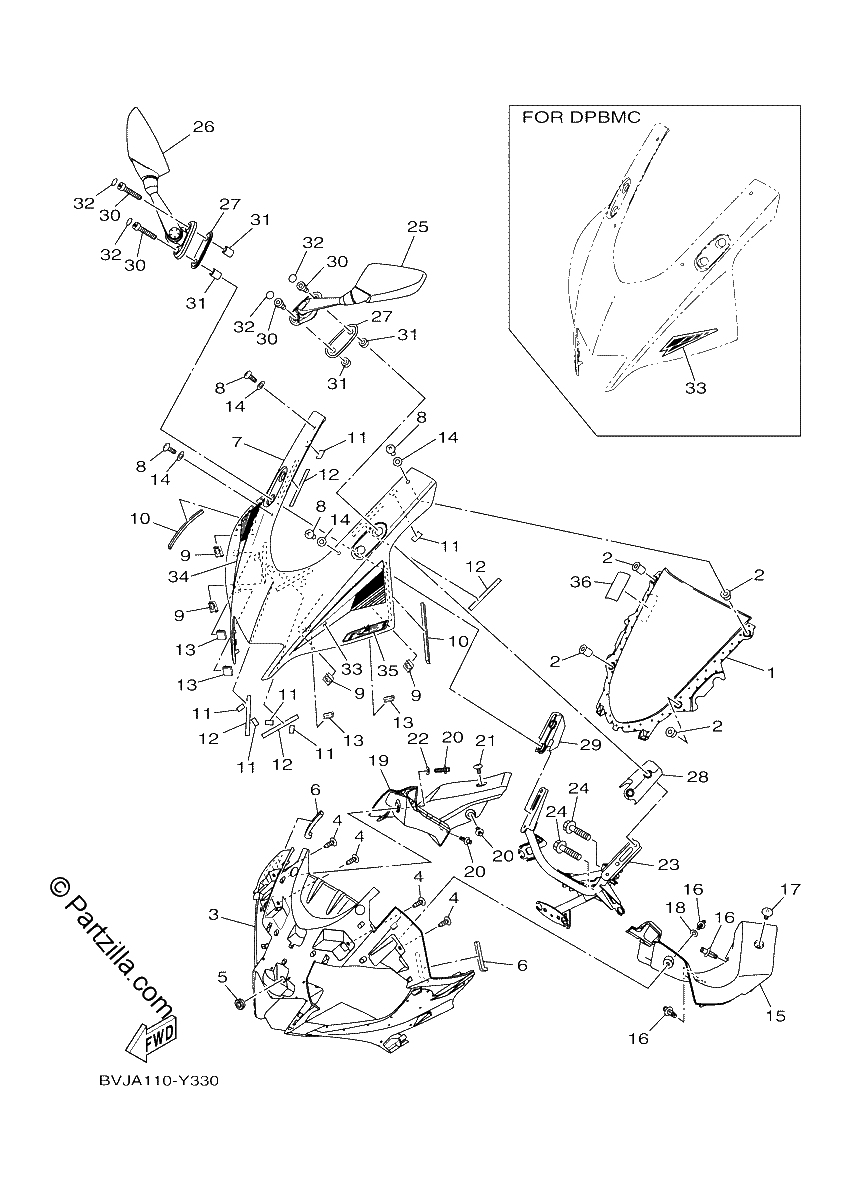

Diagrama de WINDSHIELD

Repuestos

#1
BS7-F8381-00-00
Windshield
$43.49¢21 746
1
#2
90179-05849-00
NUT
$6.23¢3 117
1
#3
BS7-F835G-00-00
BODY, FRONT UPPER 1
$80.04¢40 020
1
#4
97702-50016-00
TAPPING SCREW
$2.17¢1 087
1
#5
90480-13398-00
GROMMET
$7.51¢3 755
1
#6
90520-07808-00
DAMPER, PLATE
$0.39¢196
1
#7
BS7-F8351-00-P4
BODY, COWLING *{UR FOR SM12}*
$37.03¢18 515
1
#8
90150-05023-00
SCREW,ROUND HEAD
$3.06¢1 529
1
#9
90183-05807-00
NUT, SPRING
$1.15¢575
1
#10
90520-07808-00
DAMPER, PLATE
$0.39¢196
1
#11
31B-F8307-00-00
SEAL
$2.44¢1 219
1
#12
1WD-F414E-00-00
SEAL 2
$2.71¢1 357
1
#13
1WD-F8376-00-00
TRIM
$2.71¢1 357
1
#14
90202-05088-00
WASHER, PLATE
$6.70¢3 352
1
#15
BS7-F836N-00-00
PANEL, INNER 4
$10.87¢5 434
1
#16
90269-06816-00
RIVET
$1.58¢788
1
#17
90111-05003-00
BOLT, HEX. SOCKET BUTTON
$6.75¢3 375
1
#18
BS7-F8327-00-00
DAMPER, LEG SHIELD
$0.28¢138
1
#19
BS7-F836R-00-00
PANEL, INNER 5
$9.12¢4 560
1
#20
90269-06816-00
RIVET
$1.58¢788
1
#21
90111-05003-00
BOLT, HEX. SOCKET BUTTON
$6.75¢3 375
1
#22
BS7-F8327-00-00
DAMPER, LEG SHIELD
$0.28¢138
1
#23
BS7-F8356-00-00
STAY 1
$46.10¢23 052
1
#24
95812-08035-00
Bolt, Flange
$7.30¢3 651
1
#25
BS7-F6280-00-00
REAR VIEW MIRROR ASSY (LEFT)
$59.16¢29 578
1
#26
BS7-F6290-00-00
REAR VIEW MIRROR ASSY (RIGHT)
$108.09¢54 044
1
#27
BK6-F8483-00-00
PLATE, RUBBER 1 (BK61)
$1.21¢604
1
#28
BS7-F8484-00-00
PLATE, RUBBER 2
$15.89¢7 946
1
#29
BS7-F8485-00-00
PLATE, RUBBER 3
$6.13¢3 065
1
#30
91317-06030-00
BOLT,HEX.SOCKET HEAD
$3.62¢1 811
1
#31
90387-06131-00
COLLAR
$6.83¢3 415
1
#32
20P-F3469-00-00
CAP, BOLT
$2.86¢1 432
1
#36
1WD-F815K-10-00
LABEL, NOTICE WINDSHIELD 1
$1.18¢592
1
