COWLING 1

⚠️ Verificar CantidadesRevisa el diagrama cuidadosamente. Si tu ensamble requiere múltiples unidades de un mismo número (ej: 6 tornillos idénticos), asegúrate de ajustar la cantidad de piezas manualmente antes de añadirlas al carrito.

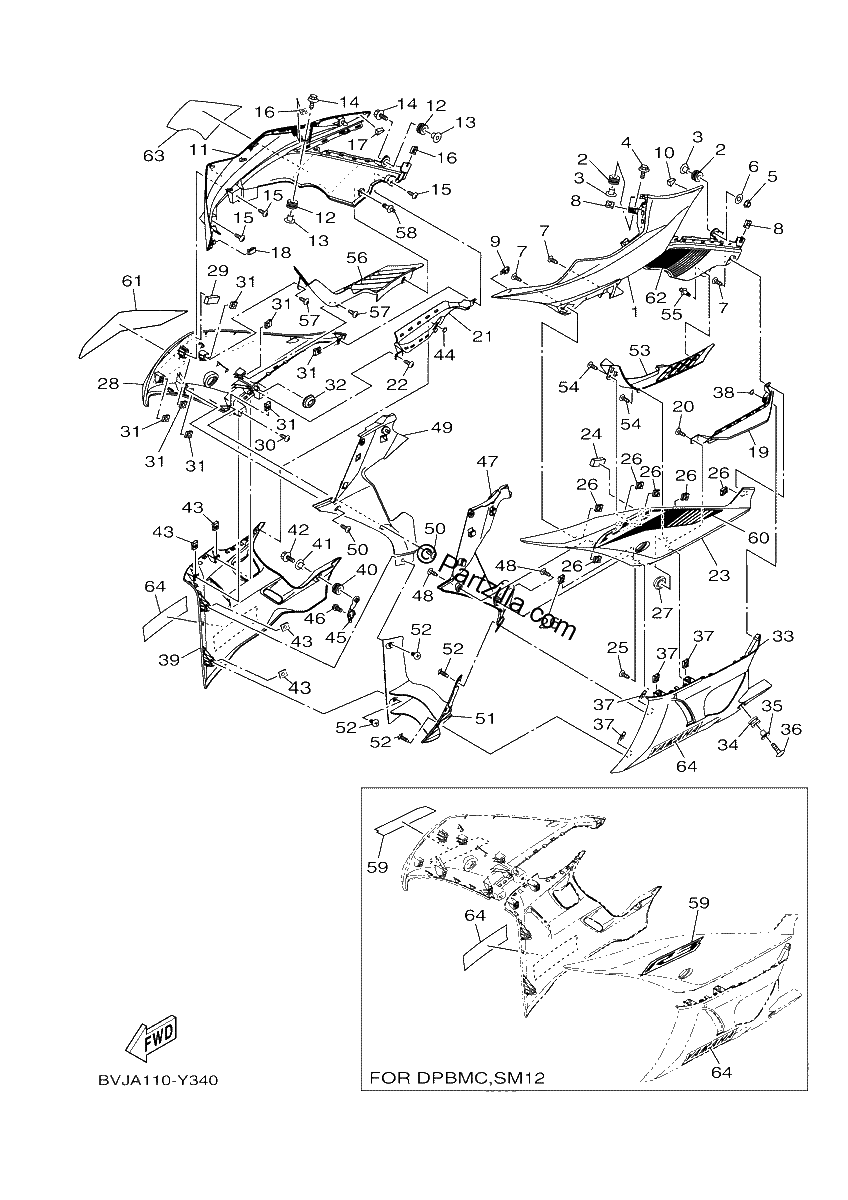

Diagrama de COWLING 1

Repuestos

#1
BS7-F172G-00-P7
PANEL 3 *{UR FOR DBPM3}*
$58.15¢29 075
1
#2
90480-12808-00
GROMMET
$2.95¢1 475
1
#3
90387-06899-00
COLLAR
$2.94¢1 469
1
#4
90119-06810-00
BOLT, WITH WASHER
$3.67¢1 838
1
#5
95702-06500-00
NUT, FLANGE
$2.44¢1 219
1
#6
90201-06380-00
WASHER PLAIN
$0.69¢344
1
#7
97702-50016-00
TAPPING SCREW
$2.36¢1 181
1
#8
90183-050A7-00
NUT, SPRING
$3.11¢1 556
1
#9
44D-F8379-00-00
HOOK
$6.14¢3 069
1
#10
BS7-F8415-00-00
DAMPER 1
$0.72¢363
1
#11
BS7-F172H-00-P7
PANEL 4 *{UR FOR DBPM3}*
$55.04¢27 519
1
#12
90480-12808-00
GROMMET
$2.95¢1 475
1
#13
90387-06899-00
COLLAR
$2.94¢1 469
1
#14
90119-06810-00
BOLT, WITH WASHER
$3.67¢1 838
1
#15
97702-50016-00
TAPPING SCREW
$2.36¢1 181
1
#16
90183-050A7-00
NUT, SPRING
$3.11¢1 556
1
#17
BS7-F8415-00-00
DAMPER 1
$0.72¢363
1
#18
44D-F8379-00-00
HOOK
$6.14¢3 069
1
#19
BS7-F117V-00-00
COVER 7
$16.54¢8 269
1
#20
97702-50016-00
TAPPING SCREW
$2.36¢1 181
1
#21
BS7-F117W-00-00
COVER 8
$8.03¢4 013
1
#22
97702-50016-00
TAPPING SCREW
$2.36¢1 181
1
#23
BS7-F835U-00-PA
PANEL 1 *{DBNM9 FOR DBPM3}*
$41.46¢20 731
1
#24
5YT-24665-00-00
DAMPER
$7.60¢3 800
1
#25
97702-50016-00
TAPPING SCREW
$2.36¢1 181
1
#26
90183-05807-00
NUT, SPRING
$1.25¢625
1
#27
90480-01821-00
Grommet
$1.41¢706
1
#28
BS7-F835V-00-PA
PANEL 2 *{DBNM9 FOR DBPM3}*
$41.70¢20 850
1
#29
5YT-24665-00-00
DAMPER
$7.60¢3 800
1
#30
97702-50016-00
TAPPING SCREW
$2.36¢1 181
1
#31
90183-05807-00
NUT, SPRING
$1.25¢625
1
#32
90480-01821-00
Grommet
$1.41¢706
1
#33
BS7-F8385-00-PA
COVER, LOWER *{DBNM9 FOR DBPM3}*
$74.49¢37 244
1
#34
90480-12808-00
GROMMET
$2.95¢1 475
1
#35
90387-06899-00
COLLAR
$2.94¢1 469
1
#36
90111-06117-00
BOLT, HEX. SOCKET BUTTON
$1.75¢875
1
#37
90183-05807-00
NUT, SPRING
$1.25¢625
1
#38
90183-05M02-00
NUT, SPRING
$0.50¢250
1
#39
B1X-F8395-00-P6
COVER, UNDER 2 *{DBNM9 FOR DBPM3}*
$75.38¢37 688
1
#40
90480-12808-00
GROMMET
$2.95¢1 475
1
#41
90387-06899-00
COLLAR
$2.94¢1 469
1
#42
90111-06117-00
BOLT, HEX. SOCKET BUTTON
$1.75¢875
1
#43
90183-05807-00
NUT, SPRING
$1.25¢625
1
#44
90183-05M02-00
NUT, SPRING
$0.50¢250
1
#45
BS7-F833E-00-00
BRACKET 8
$20.11¢10 056
1
#46
95022-06012-00
BOLT, FLANGE
$3.57¢1 787
1
#47
BS7-F836K-00-00
PANEL, INNER 1
$13.70¢6 850
1
#48
97707-50016-00
SCREW, TRUSS HEAD TAPPING
$1.71¢856
1
#49
BS7-F836L-00-00
PANEL, INNER 2
$10.86¢5 431
1
#50
97707-50016-00
SCREW, TRUSS HEAD TAPPING
$1.71¢856
1
#51
BS7-F836M-00-00
PANEL, INNER 3
$27.41¢13 706
1
#52
97707-50016-00
SCREW, TRUSS HEAD TAPPING
$1.71¢856
1
#53
BS7-F837V-00-00
GRILL, AIR OUTLET 1
$17.98¢8 988
1
#54
97702-50016-00
TAPPING SCREW
$2.36¢1 181
1
#55
90269-06816-00
RIVET
$1.71¢856
1
#56
BS7-F837W-00-00
GRILL, AIR OUTLET 2
$17.25¢8 625
1
#57
97702-50016-00
TAPPING SCREW
$2.36¢1 181
1
#58
90269-06816-00
RIVET
$1.71¢856
1
#60
B5L-F8398-40-00
GRAPHIC 5 *{FOR DBPM3}*
$31.63¢15 813
1
#61
B5L-F8399-40-00
GRAPHIC 6 *{FOR DBPM3}*
$34.51¢17 256
1
#62
B5L-F839A-20-00
GRAPHIC 7 *{FOR DBPM3}*
$8.61¢4 306
1
#63
B5L-F839E-20-00
GRAPHIC 8 *{FOR DBPM3}*
$8.61¢4 306
1
#64
1WD-F8328-90-00
EMBLEM
$3.57¢1 787
1
