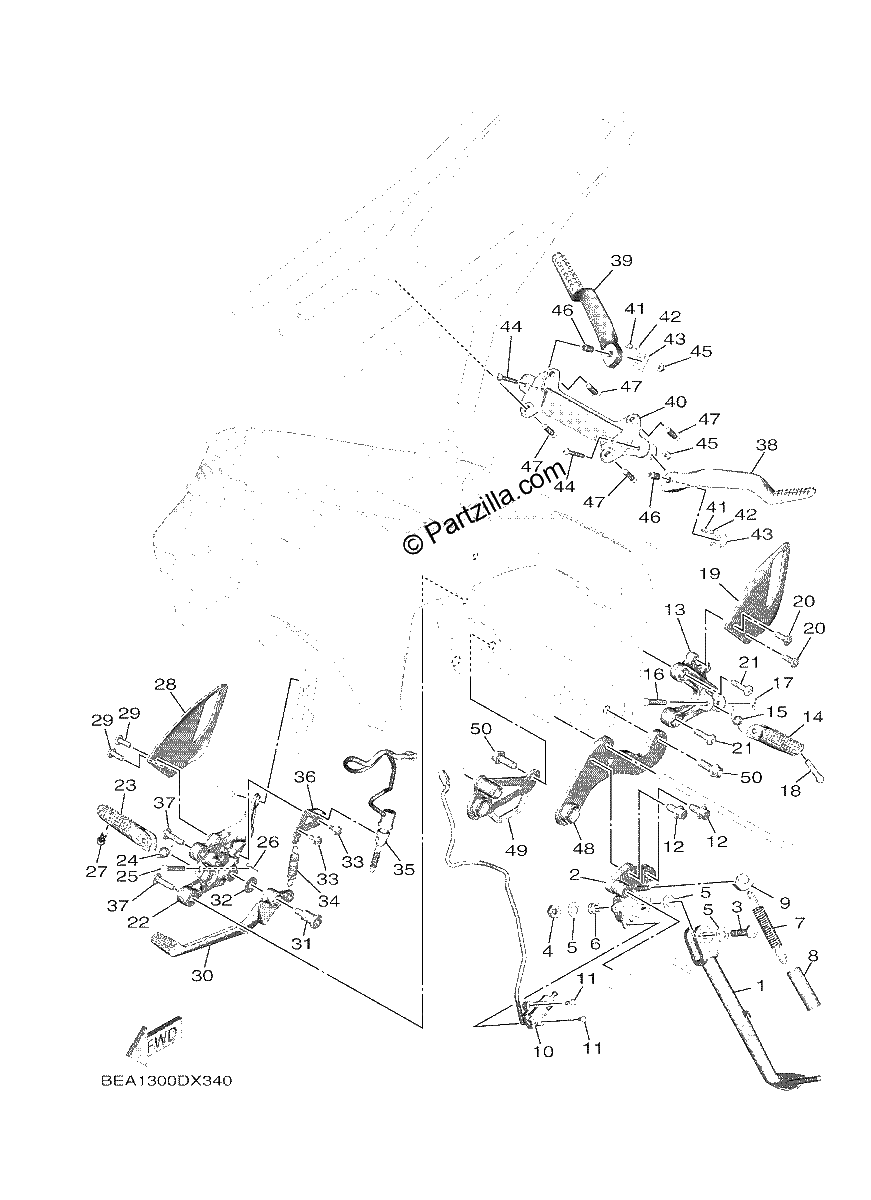

STAND FOOTREST
⚠️ Verificar CantidadesRevisa el diagrama cuidadosamente. Si tu ensamble requiere múltiples unidades de un mismo número (ej: 6 tornillos idénticos), asegúrate de ajustar la cantidad de piezas manualmente antes de añadirlas al carrito.
Repuestos
#1
STAND, SIDE
$53.06¢26 531
#2
BRACKET, SIDE STAND
$118.92¢59 461
#3
BOLT
$8.22¢4 111
#4
NUT, SELF-LOCKING
$3.27¢1 633
#5
WASHER, PLATE
$2.74¢1 368
#6
COLLAR
$17.96¢8 981
#7
SPRING, TENSION
$7.10¢3 548
#8
HOSE (L60)
$4.30¢2 151
#9
LINK, SIDE STAND
$2.13¢1 064
#10
SWITCH, SIDE STAND
$44.11¢22 057
#11
SCREW
$1.64¢822
#12
BOLT, FLANGE
$5.75¢2 875
#13
BRACKET 2
$103.19¢51 595
#14
FOOTREST 3
$16.95¢8 476
#15
SPRING, TORSION
$6.76¢3 381
#16
PIN
$4.45¢2 225
#17
PIN, COTTER
$3.32¢1 662
#18
BOLT
$4.48¢2 242
#19
PLATE 1
$52.38¢26 191
#20
BOLT, HEXAGON SOCKET BUTTON
$2.44¢1 219
#21
BOLT, HEXAGON SOCKET HEAD
$6.43¢3 214
#22
BRACKET 3
$133.53¢66 763
#23
FOOTREST 4
$16.95¢8 476
#24
SPRING, TORSION
$8.10¢4 048
#25
PIN
$4.45¢2 225
#26
PIN, COTTER
$3.32¢1 662
#27
BOLT
$4.48¢2 242
#28
PLATE 2
$58.24¢29 118
#29
BOLT, HEXAGON SOCKET BUTTON
$2.44¢1 219
#30
PEDAL, BRAKE
$117.46¢58 731
#31
BOLT
$21.36¢10 678
#32
WASHER, PLATE
$6.21¢3 105
#33
BOLT, FLANGE DEEP
$0.41¢207
#34
SPRING, TENSION
$5.61¢2 806
#35
STOP SWITCH ASSY
$50.44¢25 219
#36
STAY, STOP SWITCH
$6.99¢3 496
#37
BOLT, HEXAGON SOCKET HEAD
$6.43¢3 214
#38
FOOTREST, REAR 1
$177.62¢88 809
#39
FOOTREST, REAR 2
$177.62¢88 809
#40
BRACKET 4
$252.30¢126 149
#41
SPRING, COMPRESSION
$1.78¢891
#42
BALL
$6.87¢3 433
#43
WASHER, special
$6.46¢3 231
#44
BOLT, BUTTON HEAD
$3.90¢1 949
#45
NUT, U FLANGE
$11.60¢5 802
#46
Collar
$14.60¢7 302
#47
SCREW
$4.66¢2 329
#48
STAY, MUFFLER 1
$82.93¢41 463
#49
STAY, MUFFLER 2
$59.59¢29 797
#50
BOLT, FLANGE
$9.18¢4 589
