SHIFT SHAFT

⚠️ Verificar CantidadesRevisa el diagrama cuidadosamente. Si tu ensamble requiere múltiples unidades de un mismo número (ej: 6 tornillos idénticos), asegúrate de ajustar la cantidad de piezas manualmente antes de añadirlas al carrito.

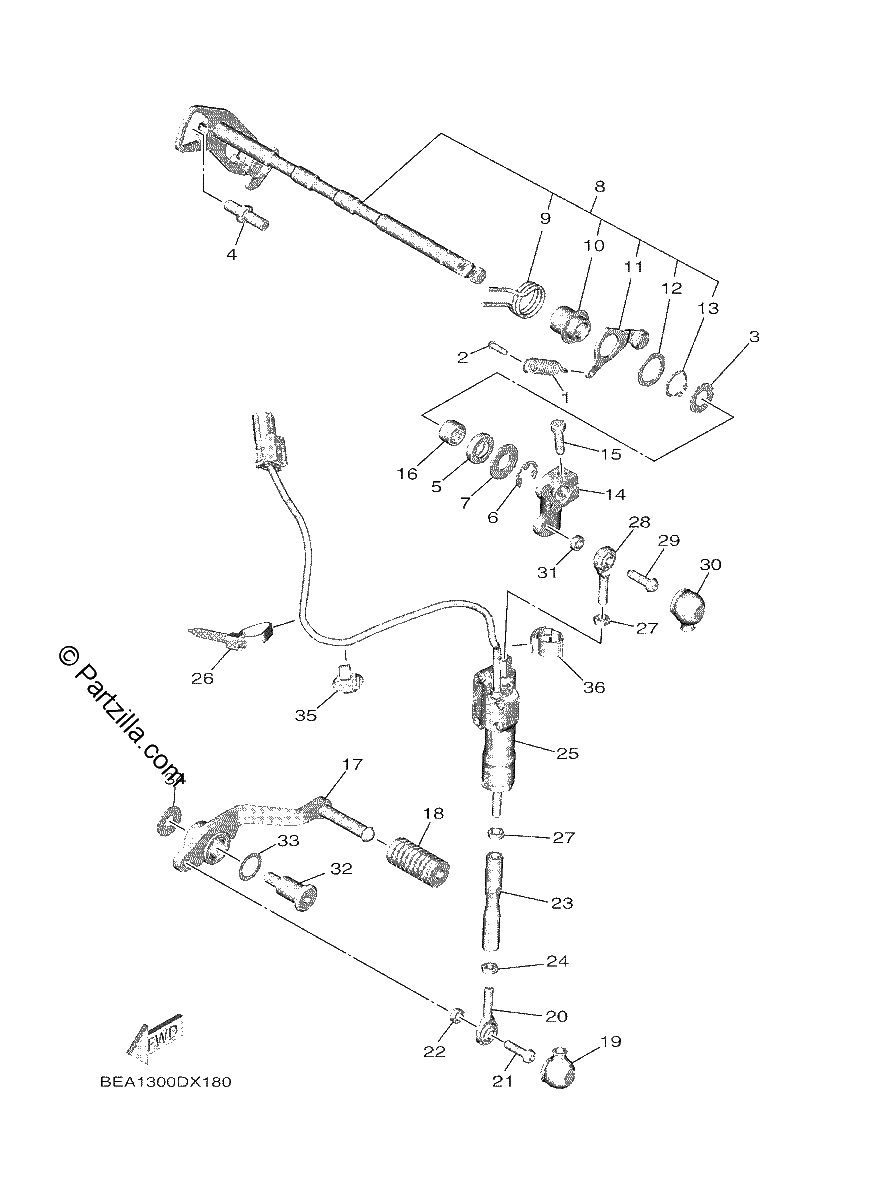

Diagrama de SHIFT SHAFT

Repuestos

#1
B7N-18143-00-00
SPRING
$2.40¢1 200
1
#2
132-16346-00-00
HOOK, SPRING
$10.39¢5 194
1
#3
90201-127E1-00
WASHER, PLATE
$4.40¢2 200
1
#4
1D7-18127-00-00
STOPPER, SCREW
$12.98¢6 488
1
#5
93102-12106-00
OIL SEAL,SD-TYPE
$12.06¢6 031
1
#6
99002-10600-00
CIRCLIP
$7.48¢3 738
1
#7
90201-12575-00
WASHER, PLATE
$7.34¢3 669
1
#8
B7N-18101-00-00
SHIFT SHAFT ASSY
$110.85¢55 425
1
#9
90508-32141-00
SPRING, TORSION
$8.24¢4 119
1
#10
B7N-18175-00-00
. SPACER
$19.64¢9 819
1
#11
B7N-18140-00-00
. STOPPER LEVER ASSY
$27.99¢13 994
1
#12
90201-177G4-00
WASHER,PLATE
$8.09¢4 044
1
#13
99009-17400-00
Circlip
$4.65¢2 325
1
#14
B7N-18112-00-00
ARM, SHIFT
$48.64¢24 319
1
#15
91312-06020-00
BOLT, HEXAGON SOCKET HEAD
$2.44¢1 219
1
#16
93317-11295-00
BEARING
$47.73¢23 863
1
#17
BEA-18111-00-00
PEDAL, SHIFT
$69.03¢34 513
1
#18
1WS-18113-00-00
COVER, SHIFT PEDAL
$5.34¢2 669
1
#19
4XV-18154-00-00
COVER, DUST
$8.03¢4 013
1
#20
5LV-18117-00-00
JOINT, ROD 2
$34.98¢17 488
1
#21
90111-06098-00
BOLT, BUTTON HEAD
$7.48¢3 738
1
#22
90387-06322-00
Collar
$7.21¢3 606
1
#23
B7N-18115-00-00
ROD, SHIFT
$32.13¢16 063
1
#24
90170-06228-00
NUT (COUNTER CLOCKWISE)
$7.81¢3 906
1
#25
B7N-82480-10-00
SHIFT SENSOR ASSY.
$295.60¢147 800
1
#26
90464-13077-00
CLAMP
$7.94¢3 969
1
#27
95304-06700-00
NUT
$7.34¢3 669
1
#28
5LV-18116-00-00
JOINT, ROD 1
$59.57¢29 787
1
#29
90111-06098-00
BOLT, BUTTON HEAD
$7.48¢3 738
1
#30
4XV-18154-00-00
COVER, DUST
$8.03¢4 013
1
#31
90387-06322-00
Collar
$7.21¢3 606
1
#32
4C8-27434-00-00
BOLT
$23.21¢11 606
1
#33
90206-14086-00
WASHER, WAVE
$7.35¢3 675
1
#34
90201-08103-00
WASHER, PLATE
$6.75¢3 375
1
#35
90464-25009-00
CLAMP
$7.56¢3 781
1
#36
90464-14010-00
CLAMP
$3.83¢1 913
1
