STAND FOOTREST

⚠️ Verificar CantidadesRevisa el diagrama cuidadosamente. Si tu ensamble requiere múltiples unidades de un mismo número (ej: 6 tornillos idénticos), asegúrate de ajustar la cantidad de piezas manualmente antes de añadirlas al carrito.

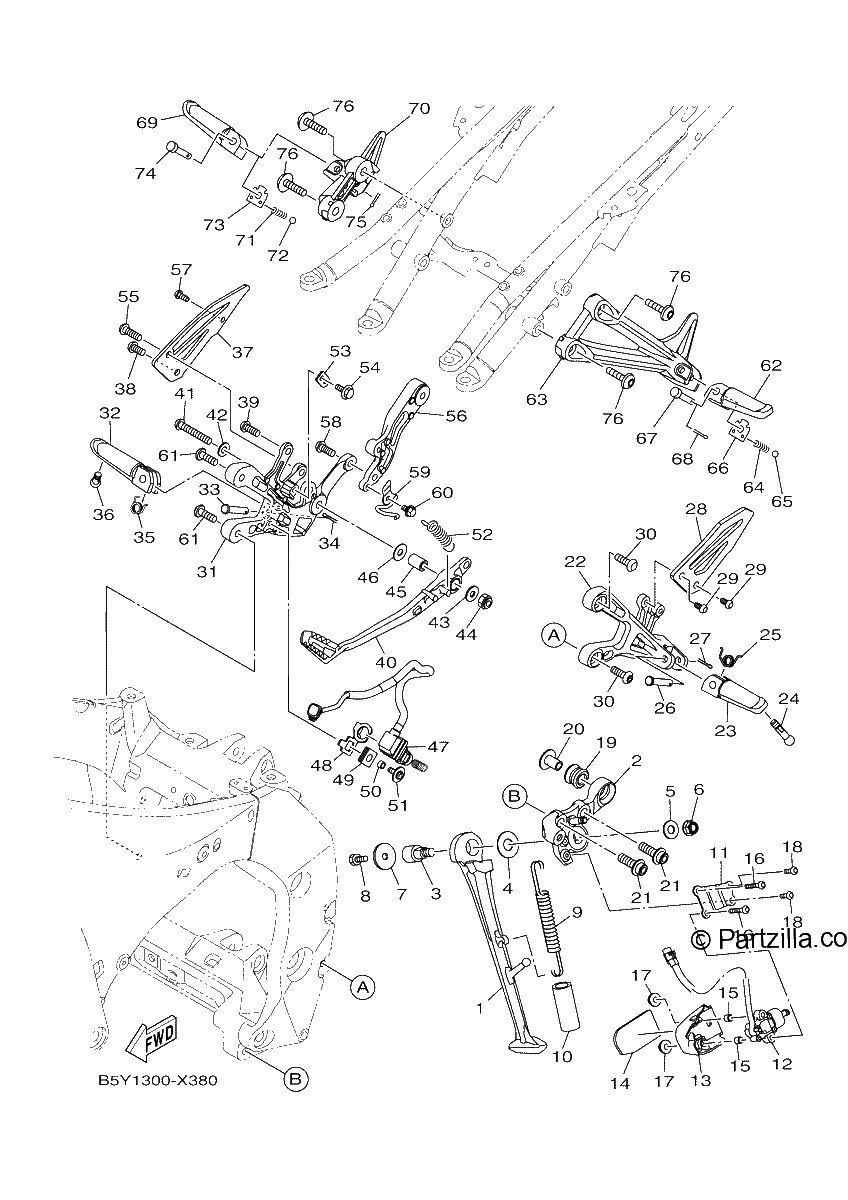

Diagrama de STAND FOOTREST

Repuestos

#1
B67-27311-00-00
STAND, SIDE
$267.25¢133 624
1
#2
B5Y-27321-00-00
BRACKET, SIDE STAND
$225.77¢112 884
1
#3
B3L-27351-00-00
GUIDE, SIDE STAND
$38.77¢19 383
1
#4
90201-146F9-00
WASHER, PLATE
$5.47¢2 737
1
#5
90201-10035-00
WASHER, plate
$3.91¢1 955
1
#6
95602-10200-00
NUT, U FLANGE
$2.51¢1 254
1
#7
90201-08050-00
WASHER, PLATE
$5.37¢2 685
1
#8
90101-08065-00
bolt
$2.77¢1 386
1
#9
90506-20032-00
SPRING, TENSION
$14.03¢7 015
1
#10
90445-197J2-00
HOSE (L60)
$4.30¢2 151
1
#11
B3L-27961-00-00
BRACKET, SENSOR 1
$11.37¢5 687
1
#12
BN6-82566-00-00
SWITCH, SIDE STAND
$111.71¢55 856
1
#13
B3L-27453-00-00
COVER 1
$11.19¢5 595
1
#14
B3L-27498-00-00
SEAT 1
$3.52¢1 759
1
#15
90387-05025-00
COLLAR
$5.66¢2 829
1
#16
92012-05030-00
BOLT, BUTTON HEAD
$5.69¢2 846
1
#17
95602-05200-00
NUT, SELF-LOCKING
$7.51¢3 755
1
#18
90110-05038-00
BOLT, HEXAGON SOCKET HEAD
$6.88¢3 439
1
#19
5VY-14747-00-00
DAMPER, MUFFLER
$13.48¢6 739
1
#20
90387-08021-00
COLLAR
$9.33¢4 663
1
#21
90109-10002-00
BOLT
$10.61¢5 307
1
#22
B67-27442-10-00
BRACKET 2
$70.46¢35 230
1
#23
3XV-27451-02-00
Footrest
$20.55¢10 275
1
#24
90109-08231-00
BOLT
$4.48¢2 242
1
#25
90508-18134-00
SPRING, TORSION
$6.76¢3 381
1
#26
91701-08040-00
PIN
$4.45¢2 225
1
#27
91402-25015-00
PIN, COTTER
$3.32¢1 662
1
#28
B67-27445-10-00
PLATE 1
$41.31¢20 654
1
#29
90111-06065-00
BOLT,HEX. SOCKET BUTTON
$2.74¢1 368
1
#30
90111-08085-00
BOLT,HEX. SOCKET BUTTON
$2.08¢1 041
1
#31
B67-27443-10-00
BRACKET 3
$88.73¢44 367
1
#32
3XV-27461-02-00
FOOTREST
$23.85¢11 925
1
#33
91701-08040-00
PIN
$4.45¢2 225
1
#34
91402-25015-00
PIN, COTTER
$3.32¢1 662
1
#35
90508-18135-00
SPRING, TORSION
$8.10¢4 048
1
#36
90109-08231-00
BOLT
$4.48¢2 242
1
#37
B67-27446-10-00
PLATE 2
$34.64¢17 319
1
#38
92012-08016-00
BOLT, BUTTON HEAD
$7.65¢3 824
1
#39
92012-08020-00
BOLT, BUTTON HEAD
$2.44¢1 219
1
#40
B67-27211-00-00
PEDAL, BRAKE
$129.64¢64 820
1
#41
92012-08050-00
BOLT, BUTTON HEAD
$2.50¢1 248
1
#42
92902-08200-00
WASHER
$0.25¢127
1
#43
90201-08048-00
WASHER, PLATE
$6.30¢3 151
1
#44
90185-08089-00
NUT, SELF-LOCKING
$8.00¢4 002
1
#45
90387-08102-00
COLLAR
$8.03¢4 013
1
#46
90201-08103-00
WASHER, PLATE
$6.21¢3 105
1
#47
B5Y-82530-00-00
STOP SWITCH ASSY
$65.62¢32 810
1
#48
B5Y-2144G-00-00
STAY, STOP SWITCH
$5.65¢2 823
1
#49
90480-12607-00
GROMMET
$9.36¢4 681
1
#50
90387-06M16-00
COLLAR
$3.83¢1 915
1
#51
90159-06150-00
SCREW, WITH WASHER
$7.08¢3 542
1
#52
90506-23027-00
SPRING, TENSION
$4.30¢2 151
1
#53
B67-27432-00-00
BRACKET 1
$3.01¢1 507
1
#54
95D32-06010-00
BLOT, FLANGE DEEP RECESS
$0.68¢339
1
#55
92012-08025-00
BOLT, BUTTON HEAD
$6.30¢3 151
1
#56
B5Y-21487-00-00
STAY, MUFFLER 3
$88.20¢44 103
1
#57
92012-06014-00
BOLT, BUTTON HEAD
$6.76¢3 381
1
#58
92012-08020-00
BOLT, BUTTON HEAD
$2.44¢1 219
1
#59
B5Y-2148X-00-00
BRACKET 4
$16.04¢8 021
1
#60
95D32-06010-00
BLOT, FLANGE DEEP RECESS
$0.68¢339
1
#61
90111-08085-00
BOLT,HEX. SOCKET BUTTON
$2.08¢1 041
1
#62
3XV-27431-01-00
FOOTREST, REAR 1
$40.51¢20 257
1
#63
1RC-2741L-01-00
BRACKET 4
$66.85¢33 425
1
#64
90501-12743-00
SPRING, COMPRESSION
$3.51¢1 754
1
#65
93501-04011-00
BALL
$6.87¢3 433
1
#66
5VX-27437-00-00
WASHER, SPECIAL
$7.35¢3 674
1
#67
91702-08040-00
PIN, CLEVIS
$4.45¢2 225
1
#68
91401-25015-00
PIN, COTTER
$3.32¢1 662
1
#69
3XV-27441-11-00
FOOTREST, REAR 2
$35.21¢17 607
1
#70
B67-2742L-00-00
BRACKET 5
$68.66¢34 328
1
#71
90501-12743-00
SPRING, COMPRESSION
$3.51¢1 754
1
#72
93501-04011-00
BALL
$6.87¢3 433
1
#73
5VX-27437-00-00
WASHER, SPECIAL
$7.35¢3 674
1
#74
91702-08040-00
PIN, CLEVIS
$4.45¢2 225
1
#75
91401-25015-00
PIN, COTTER
$3.32¢1 662
1
#76
90111-08085-00
BOLT,HEX. SOCKET BUTTON
$2.08¢1 041
1
