CRANKSHAFT PISTON

⚠️ Verificar CantidadesRevisa el diagrama cuidadosamente. Si tu ensamble requiere múltiples unidades de un mismo número (ej: 6 tornillos idénticos), asegúrate de ajustar la cantidad de piezas manualmente antes de añadirlas al carrito.

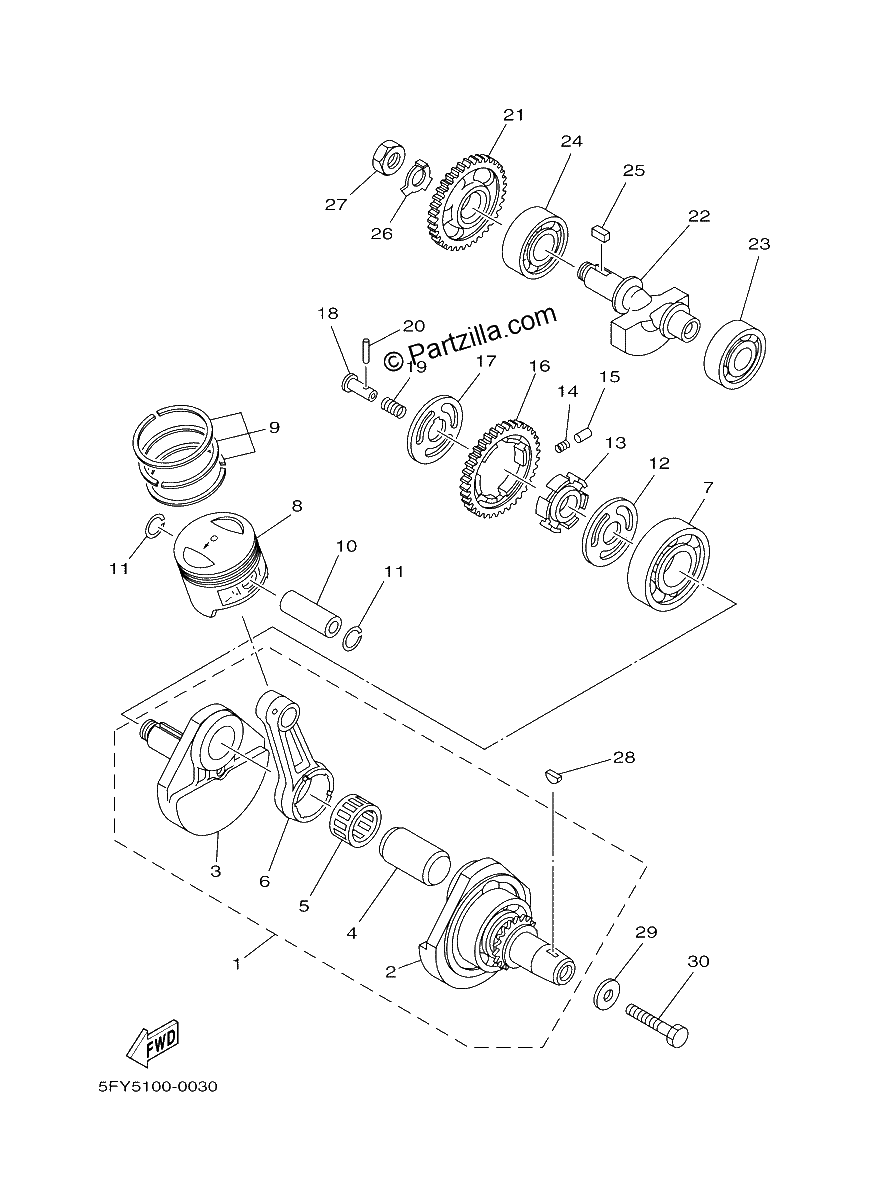

Diagrama de CRANKSHAFT PISTON

Repuestos

#1
5H0-11400-00-00
CRANKSHAFT ASY
$574.34¢287 169
1
#2
5H0-11401-09-00
CRANK SUB ASSY 1
$298.15¢149 075
1
#3
5H0-11422-00-00
CRANK 2
$206.42¢103 212
1
#4
5H0-11681-00-00
PIN,CRANK 1
$50.72¢25 362
1
#5
93310-530J3-00
BEARING,CYL.#10
$70.60¢35 300
1
#6
15A-11651-00-00
ROD,CONNECTING
$154.71¢77 356
1
#7
93306-30611-00
BEARING
$89.36¢44 681
1
#8
36X-11638-00-00
PISTON 4TH OS
$153.65¢76 825
1
#8
36X-11631-00-A0
PISTON STD
$127.66¢63 831
1
#8
36X-11636-00-00
PISTON 2ND OS
$125.11¢62 556
1
#9
15A-11605-00-00
PSTN RG ST.50MM OS
$70.33¢35 163
1
#9
15A-11607-00-00
PSTN RG ST1.00MMOS
$73.97¢36 988
1
#9
15A-11603-00-00
PSTN RG ST (STD)
$66.79¢33 394
1
#10
15A-11633-00-00
PIN, PISTON
$34.14¢17 069
1
#11
93450-17044-00
CIRCLIP,INNER
$6.25¢3 125
1
#12
90201-201E4-00
WASHER,PLATE
$12.71¢6 356
1
#13
5H0-11496-00-00
BOSS,BUFFER
$131.84¢65 919
1
#14
90501-21133-00
SPRING,COMPRESSION
$8.64¢4 319
1
#15
93605-10090-00
PIN,DOWEL
$6.63¢3 313
1
#16
5H0-11536-00-00
GEAR,DRIVE
$137.39¢68 694
1
#17
90214-20023-00
WASHER,CLAW
$6.95¢3 475
1
#18
90240-07083-00
PIN,CLEVIS
$15.95¢7 975
1
#19
90501-07629-00
SPRING,COMPRESSION
$8.45¢4 225
1
#20
93602-13177-00
PIN,DOWEL
$2.61¢1 306
1
#21
5H0-11531-00-00
GEAR,BALANCE WT
$193.90¢96 950
1
#22
15A-11454-00-00
WEIGHT 1
$90.74¢45 369
1
#23
93306-30427-00
BEARING
$69.65¢34 825
1
#24
93306-30427-00
BEARING
$69.65¢34 825
1
#25
90282-05013-00
KEY, STRAIGHT
$8.91¢4 456
1
#26
90215-14205-00
WASHER,LOCK
$7.34¢3 669
1
#27
90170-14284-00
NUT,HEXAGON
$9.45¢4 725
1
#28
90280-05048-00
KEY, WOODRUFF
$14.04¢7 019
1
#29
90201-10508-00
WASHER, PLATE
$17.16¢8 581
1
#30
90101-10188-00
bolt
$9.51¢4 756
1
