STARTER

⚠️ Verificar CantidadesRevisa el diagrama cuidadosamente. Si tu ensamble requiere múltiples unidades de un mismo número (ej: 6 tornillos idénticos), asegúrate de ajustar la cantidad de piezas manualmente antes de añadirlas al carrito.

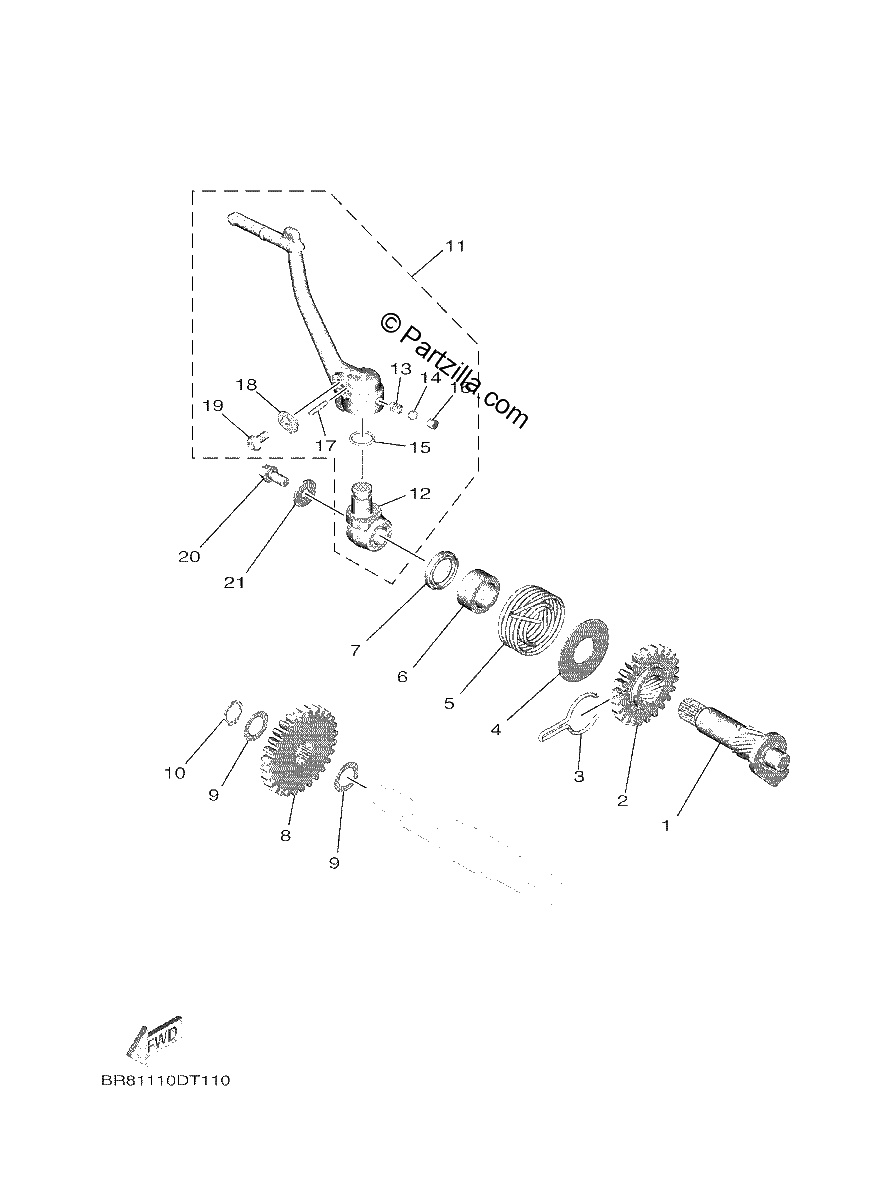

Diagrama de STARTER

Repuestos

#1
5PA-15660-00-00
KICK AXLE ASSY
$98.31¢49 157
1
#2
5PA-15641-00-00
GEAR, KICK
$82.86¢41 429
1
#3
90468-23194-00
CLIP
$8.66¢4 330
1
#4
90201-176L4-00
WASHER, PLATE
$8.72¢4 358
1
#5
90508-26750-00
SPRING, TORSION
$11.59¢5 796
1
#6
4ES-15664-00-00
GUIDE, SPRING
$30.30¢15 151
1
#7
93102-17263-00
OIL SEAL
$9.76¢4 882
1
#8
5PA-15651-00-00
GEAR, KICK IDLE
$69.60¢34 799
1
#9
90201-124F8-00
WASHER, PLATE
$6.88¢3 439
1
#10
99009-12400-00
CIRCLIP
$3.37¢1 685
1
#11
BR8-15620-00-00
Kick Crank Assy
$141.93¢70 967
1
#12
BR8-15621-00-00
BOSS, KICK CRANK
$57.22¢28 612
1
#13
90501-12081-00
SPRING, COMPRESSION
$6.75¢3 375
1
#14
93507-32009-00
BALL
$4.28¢2 139
1
#15
93210-12152-00
O-RING
$7.38¢3 691
1
#16
90336-06031-00
PLUG, TAPER
$5.58¢2 789
1
#17
93603-16219-00
PIN, DOWEL
$5.75¢2 875
1
#18
4JY-11915-10-00
PLATE, THRUST 1
$7.04¢3 519
1
#19
90111-05052-00
. BOLT,HEX. SOCKET BUTTON
$0.69¢345
1
#20
95E32-06012-00
BOLT, FLANGE DEEP RECESS
$0.99¢494
1
#21
90201-06060-00
WASHER, PLATE
$6.88¢3 439
1
