FUEL TANK

⚠️ Verificar CantidadesRevisa el diagrama cuidadosamente. Si tu ensamble requiere múltiples unidades de un mismo número (ej: 6 tornillos idénticos), asegúrate de ajustar la cantidad de piezas manualmente antes de añadirlas al carrito.

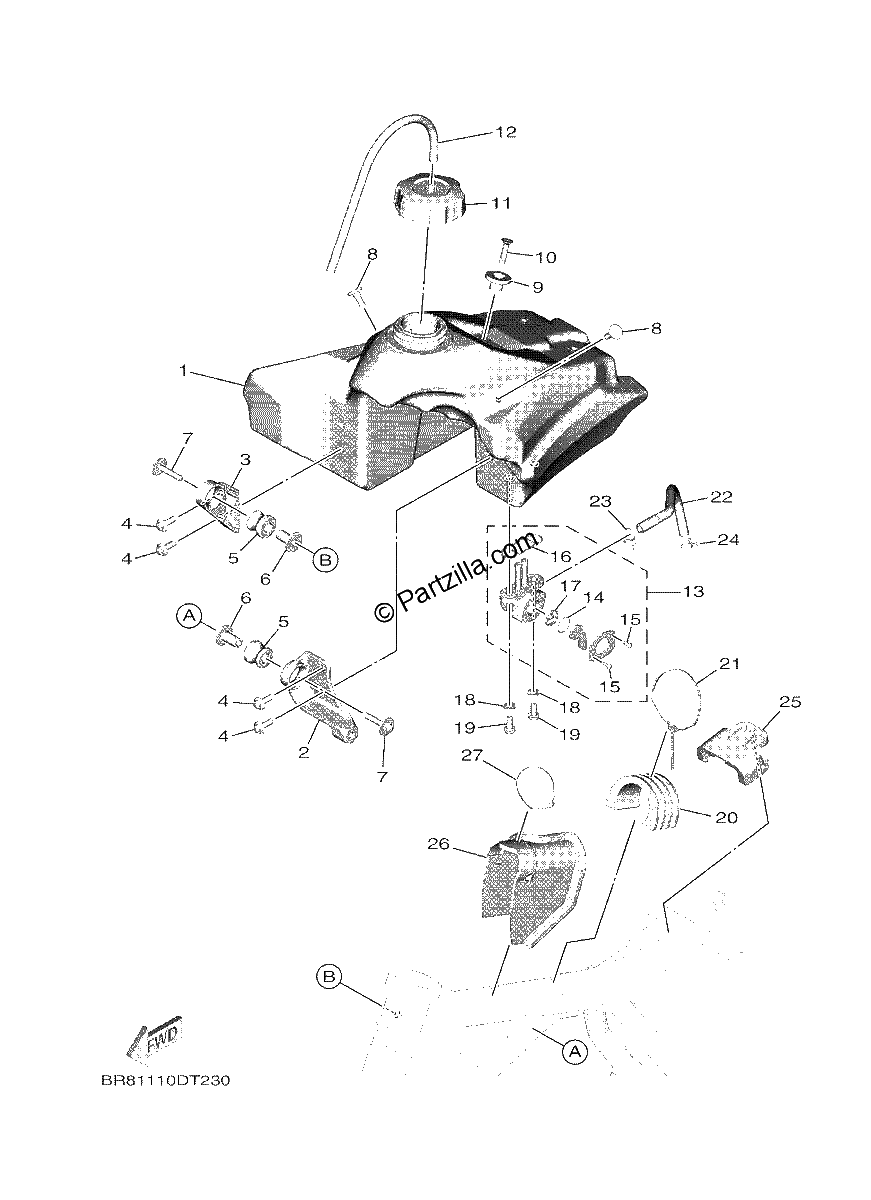

Diagrama de FUEL TANK

Repuestos

#1
BR8-24110-10-00
FUEL TANK COMP.
$464.09¢232 044
1
#2
BR8-24115-00-00
STAY, FUEL TANK 1
$37.01¢18 506
1
#3
BR8-24116-00-00
STAY, FUEL TANK 2
$19.66¢9 831
1
#4
90105-06170-00
BOLT, FLANGE
$5.05¢2 525
1
#5
90480-18549-00
Grommet
$10.50¢5 250
1
#6
90387-06091-00
COLLAR
$7.41¢3 706
1
#7
90119-06262-00
BOLT, WITH WASHER
$7.48¢3 738
1
#8
90109-06326-00
bolt
$2.20¢1 100
1
#9
4EW-2412F-00-00
BRACKET,SEAT (replaces 1B2-F412F-00-00)
$15.13¢7 563
1
#10
98702-06025-00
Screw, Flat Head
$7.34¢3 669
1
#11
2FJ-24610-20-00
CAP ASSY (replaces 2FJ-24610-10-00)
$73.65¢36 825
1
#12
90445-09004-00
HOSE (L280) This item has been discontinued and may not be available. Contact us for more information.
$3.89¢1 944
1
#13
4DP-24500-10-00
FUEL COCK ASSY 1
$98.20¢49 100
1
#14
3AJ-24534-10-00
SEAL, COCK
$8.43¢4 213
1
#15
98507-03008-00
SCREW, PAN HEAD
$3.26¢1 631
1
#16
4X8-24512-10-00
GASKET
$13.06¢6 531
1
#17
3AC-24523-00-00
VALVE PACKING
$13.81¢6 906
1
#18
90202-05193-00
WASHER, PLATE
$1.57¢788
1
#19
90149-06108-00
SCREW
$1.14¢569
1
#20
5PA-24182-00-00
DAMPER, LOCATING 2
$8.77¢4 387
1
#21
90464-65001-00
CLAMP
$5.99¢2 994
1
#22
BR8-24311-00-00
PIPE, FUEL 1
$11.81¢5 906
1
#23
90467-10008-00
CLIP
$7.60¢3 800
1
#24
90467-09002-00
Clip
$2.26¢1 131
1
#25
5PA-24181-00-00
DAMPER, LOCATING 1
$18.94¢9 469
1
#26
BR8-2418B-00-00
MOLE, FUEL TANK 1
$22.05¢11 025
1
#27
90464-65001-00
CLAMP
$5.99¢2 994
1
