SEAT

⚠️ Verificar CantidadesRevisa el diagrama cuidadosamente. Si tu ensamble requiere múltiples unidades de un mismo número (ej: 6 tornillos idénticos), asegúrate de ajustar la cantidad de piezas manualmente antes de añadirlas al carrito.

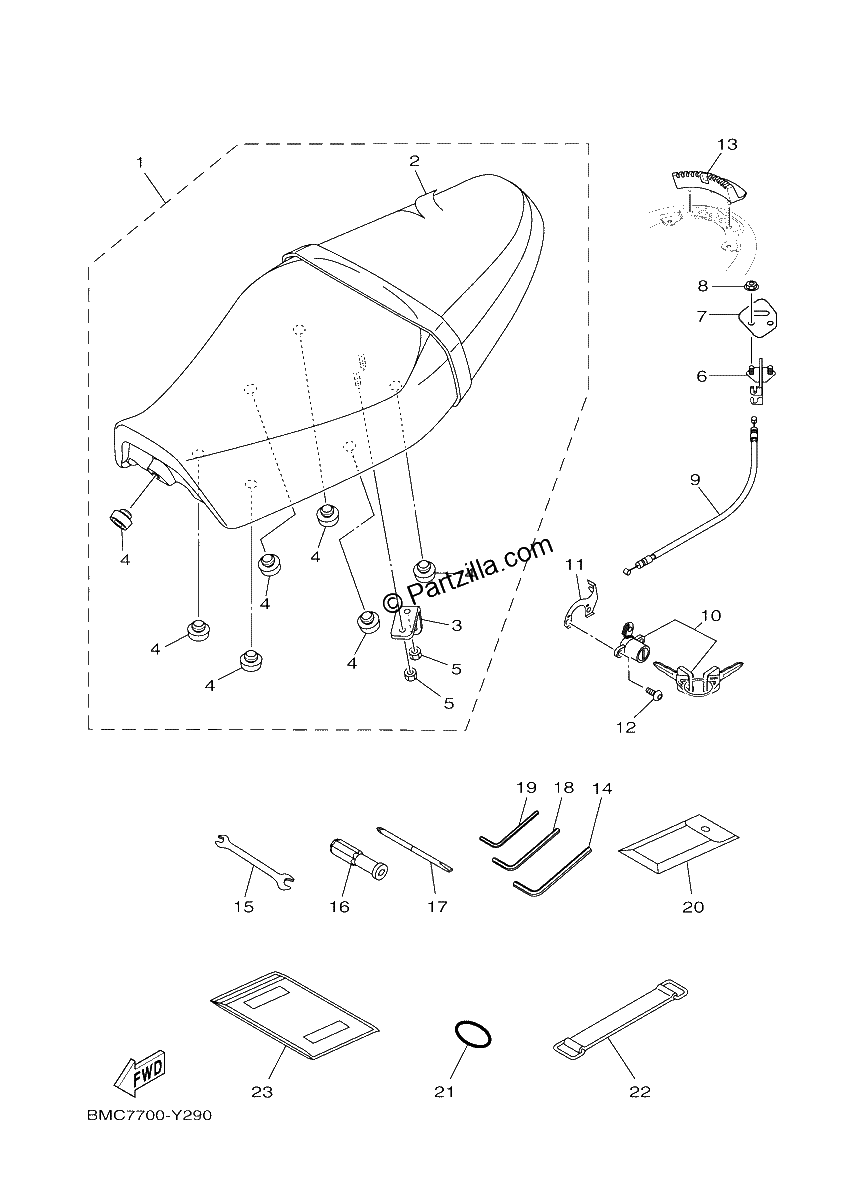

Diagrama de SEAT

Repuestos

#1
B34-F4730-12-00
DOUBLE SEAT ASSY
$249.20¢124 600
1
#2
B34-F4731-10-00
COVER, SEAT
$209.53¢104 763
1
#3
B34-F4738-00-00
BRACKET, SEAT
$43.38¢21 688
1
#4
5YK-F4741-00-00
PAD, SEAT
$5.29¢2 644
1
#5
90185-06X04-00
NUT, SELF-LOCKING
$27.57¢13 788
1
#6
5BP-F4780-00-00
SEAT LOCK ASSY
$13.35¢6 675
1
#7
BMC-21978-00-00
PROTECTOR, FRAME
$41.39¢20 694
1
#8
4XV-8182A-00-00
NUT
$7.48¢3 738
1
#9
BEE-2478E-00-00
CABLE, SEAT LOCK
$9.49¢4 744
1
#10
2TV-W2470-00-00
SEAT LOCK ASSY
$88.70¢44 350
1
#11
23P-2117K-01-00
STAY, LOCK
$7.40¢3 700
1
#12
90149-06030-00
SCREW
$6.39¢3 194
1
#13
B2G-21779-01-00
DAMPER, LOCATING 2
$38.39¢19 194
1
#14
14B-28164-00-00
WRENCH, HEXAGON 8
$4.49¢2 244
1
#15
B2G-28122-00-00
SPANNER 8-10
$8.71¢4 356
1
#16
B2G-28151-00-00
GRIP, DRIVER
$6.40¢3 200
1
#17
137-28152-00-00
DRIVER
$4.11¢2 056
1
#18
23P-28164-00-00
WRENCH, HEXAGON 8
$3.25¢1 625
1
#19
B34-F816G-00-00
WRENCH HEXAGONAL 3
$24.99¢12 494
1
#20
BAT-28100-00-00
TOOL KIT
$25.36¢12 681
1
#21
93210-40351-00
O-RING
$13.03¢6 513
1
#22
120-82131-00-00
BAND, BATTERY
$19.11¢9 556
1
#23
4KG-28186-11-00
POUCH
$8.49¢4 244
1
