ELECTRICAL 1

⚠️ Verificar CantidadesRevisa el diagrama cuidadosamente. Si tu ensamble requiere múltiples unidades de un mismo número (ej: 6 tornillos idénticos), asegúrate de ajustar la cantidad de piezas manualmente antes de añadirlas al carrito.

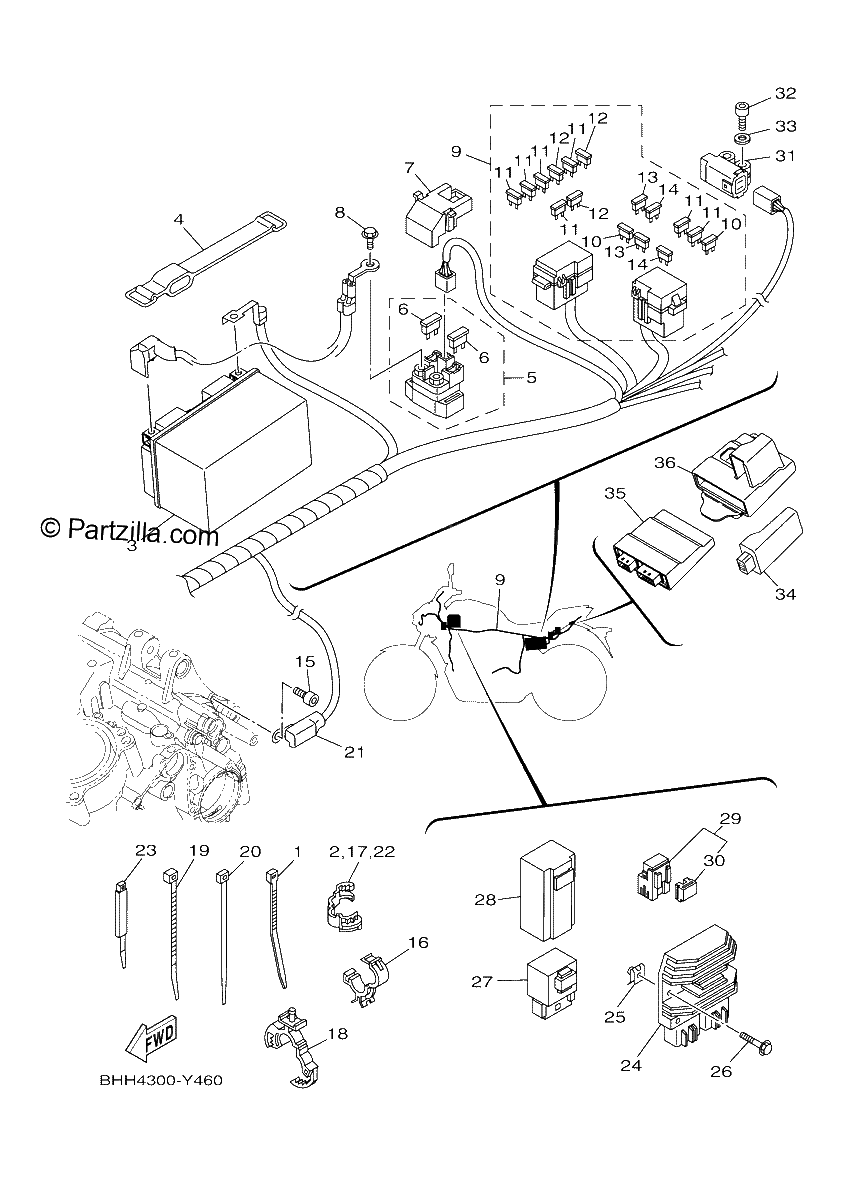

Diagrama de ELECTRICAL 1

Repuestos

#1
90464-36005-00
CLAMP
$1.20¢600
1
#2
90464-14010-00
CLAMP
$3.83¢1 913
1
#3
5VY-82100-01-00
BATTERY ASSY (YUASA YTZ10S)
$323.56¢161 781
1
#4
1WS-82131-00-00
BAND, BATTERY
$8.81¢4 406
1
#5
1XC-81940-00-00
STARTER RELAY ASSY (RC19-089B)
$68.09¢34 044
1
#6
1AE-82151-00-00
FUSE (30A-BL)
$7.41¢3 706
1
#7
5SL-82119-10-00
COVER, LEAD WIRE
$4.84¢2 419
1
#8
95022-06008-00
BOLT, FLANGE
$7.46¢3 731
1
#9
BAT-82590-60-00
WIRE HARNESS ASSY *{FOR U49}*
$1204.99¢602 494
1
#10
5JJ-82151-50-00
. FUSE (3A-BL)
$5.99¢2 994
1
#11
5JJ-82151-00-00
FUSE (7.5A-BL)
$7.08¢3 538
1
#12
5JJ-82151-30-00
. FUSE (10A-BL)
$8.24¢4 119
1
#13
5JJ-82151-20-00
FUSE (20A-BL)
$7.63¢3 813
1
#14
5JJ-82151-60-00
FUSE (30A-BL)
$7.63¢3 813
1
#15
91380-06012-00
BOLT
$2.23¢1 113
1
#16
90464-20191-00
Clamp
$8.76¢4 381
1
#17
90464-14010-00
CLAMP
$3.83¢1 913
1
#18
90464-30010-00
Clamp
$1.82¢913
1
#19
1UA-82591-00-00
BAND
$4.91¢2 456
1
#20
90464-65001-00
CLAMP
$5.99¢2 994
1
#21
1WS-81916-00-00
COVER, TERMINAL
$5.21¢2 606
1
#22
90464-14010-00
CLAMP
$3.83¢1 913
1
#23
BAT-21646-00-00
BAND
$3.49¢1 744
1
#24
1D7-81960-10-00
RECTIFIER & REGULATOR ASSY
$259.95¢129 975
1
#25
90183-060A6-00
NUT, SPRING
$4.97¢2 488
1
#26
95022-06025-00
BOLT, FLANGE
$1.75¢875
1
#27
5VK-81950-51-00
RELAY ASSY
$60.88¢30 438
1
#28
1WS-8246B-00-00
COVER 1
$9.74¢4 869
1
#29
1TP-81950-00-00
RELAY ASSY (1TP-00)
$15.59¢7 794
1
#30
5EA-81952-00-00
HOLDER, RELAY
$8.03¢4 013
1
#31
5PS-82576-01-00
SENSOR, LEAN ANGLE
$95.25¢47 625
1
#32
91312-04025-00
BOLT
$1.84¢919
1
#33
90201-04030-00
WASHER, PLATE
$1.80¢900
1
#34
B6Y-H5810-04-00
COMMUNICATION CONT. UNIT ASSY
$132.84¢66 419
1
#35
BAT-85490-00-00
LIGHT CONTROL UNIT
$340.48¢170 238
1
#36
BAT-85546-10-00
BAND
$19.90¢9 950
1
