HEADLIGHT

⚠️ Verificar CantidadesRevisa el diagrama cuidadosamente. Si tu ensamble requiere múltiples unidades de un mismo número (ej: 6 tornillos idénticos), asegúrate de ajustar la cantidad de piezas manualmente antes de añadirlas al carrito.

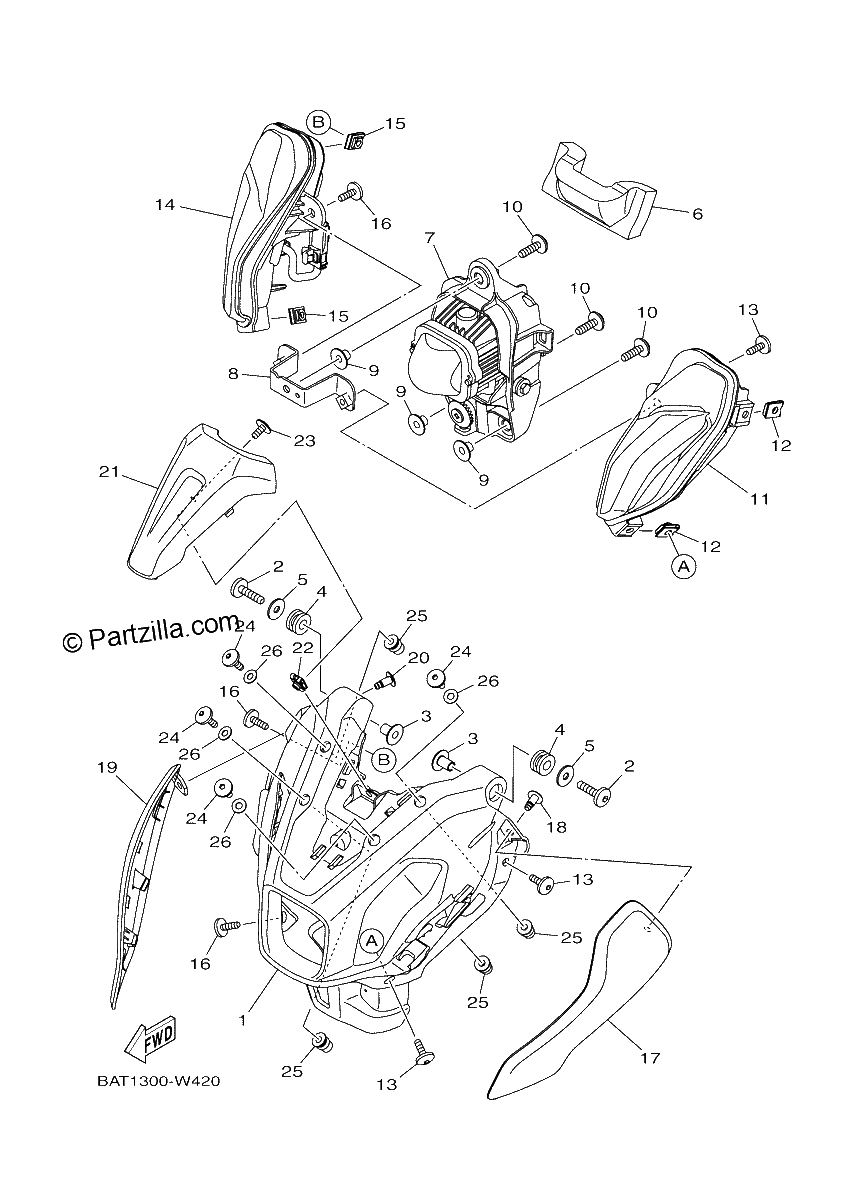

Diagrama de HEADLIGHT

Repuestos

#1
BAT-2838E-00-00
COVER, HEADLIGHT
$48.22¢24 112
1
#2
90111-06172-00
BOLT, HEX. SOCKET BUTTON
$2.97¢1 487
1
#3
90387-06301-00
COLLAR
$4.45¢2 225
1
#4
90480-12015-00
GROMMET
$1.89¢944
1
#5
90201-06029-00
WASHER, PLATE
$5.54¢2 769
1
#6
90520-20017-00
DAMPER, PLATE
$7.56¢3 781
1
#7
BAT-84300-00-00
HEADLIGHT ASSY
$662.13¢331 063
1
#8
BAT-84703-00-00
BRACKET
$9.91¢4 956
1
#9
90387-06354-00
COLLAR
$4.90¢2 450
1
#10
90119-06193-00
BOLT, WITH WASHER
$7.34¢3 669
1
#11
BAT-84301-00-00
PILOT LIGHT ASSY 1
$246.83¢123 413
1
#12
90183-051A4-00
NUT, SPRING
$10.86¢5 431
1
#13
90111-05060-00
BOLT,HEX. SOCKET BUTTON
$3.19¢1 594
1
#14
BAT-84302-00-00
PILOT LIGHT ASSY 2
$203.32¢101 663
1
#15
90183-051A4-00
NUT, SPRING
$10.86¢5 431
1
#16
90111-05060-00
BOLT,HEX. SOCKET BUTTON
$3.19¢1 594
1
#17
BAT-2838D-00-3E
COVER, HEADLIGHT 1
$53.45¢26 725
1
#18
90269-06019-00
RIVET
$3.46¢1 731
1
#19
BAT-2838S-00-3E
COVER, HEADLIGHT 2
$53.45¢26 725
1
#20
90269-06019-00
RIVET
$3.46¢1 731
1
#21
BAT-84369-00-00
COVER 1
$8.73¢4 363
1
#22
90183-05076-00
NUT, SPRING
$2.82¢1 412
1
#23
90111-05003-00
BOLT, HEX. SOCKET BUTTON
$7.34¢3 669
1
#24
90111-05060-00
BOLT,HEX. SOCKET BUTTON
$3.19¢1 594
1
#25
90179-05523-00
NUT
$6.78¢3 388
1
#26
92907-05200-00
WASHER
$4.88¢2 438
1
