REAR ARM

⚠️ Verificar CantidadesRevisa el diagrama cuidadosamente. Si tu ensamble requiere múltiples unidades de un mismo número (ej: 6 tornillos idénticos), asegúrate de ajustar la cantidad de piezas manualmente antes de añadirlas al carrito.

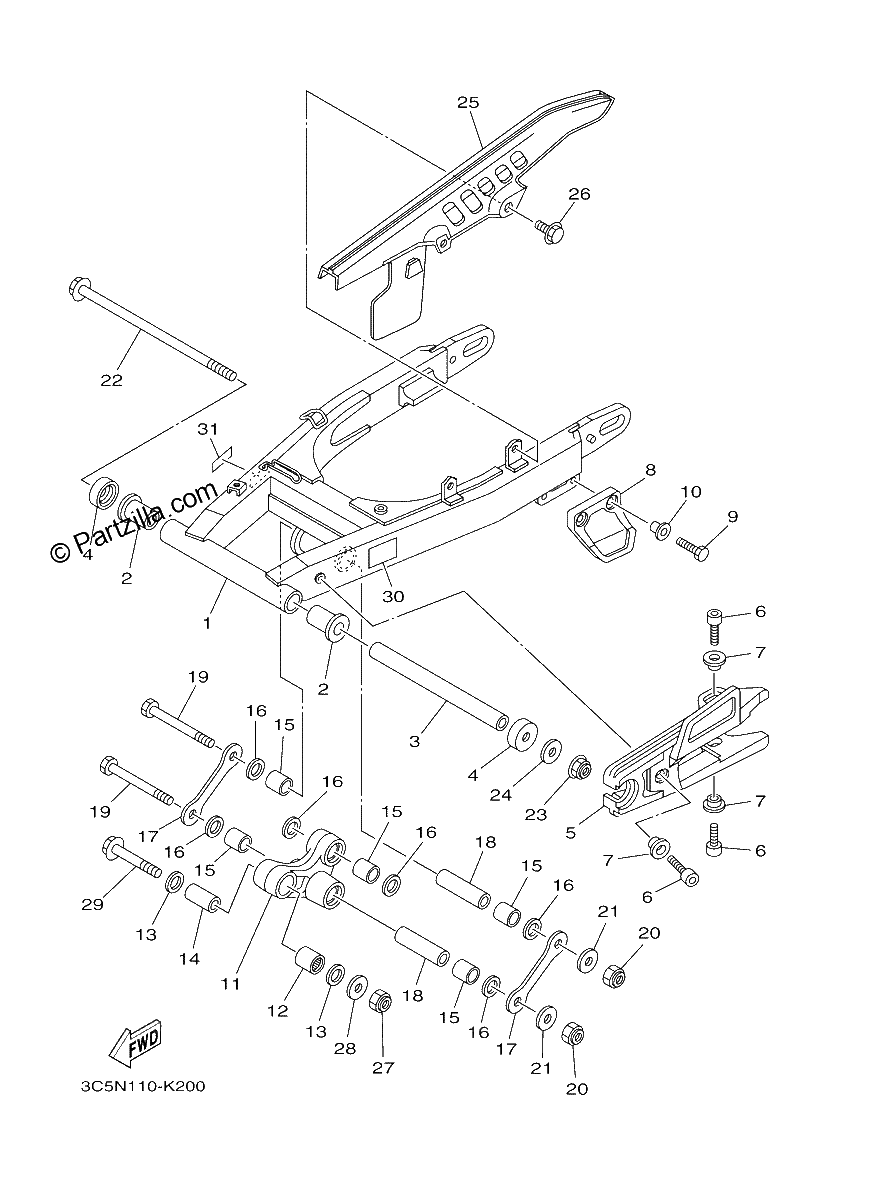

Diagrama de REAR ARM

Repuestos

#1
3C5-22110-00-00
REAR ARM COMP.
$625.11¢312 556
1
#2
90386-18099-00
BUSH
$16.06¢8 031
1
#3
5XT-22184-00-00
BUSH
$52.67¢26 338
1
#4
401-22128-01-00
COVER, THRUST 1
$30.38¢15 188
1
#5
3C5-22151-00-00
SEAL, GUARD
$41.60¢20 800
1
#6
91312-05014-00
BOLT
$3.26¢1 631
1
#7
5JG-22156-00-00
WASHER, PLATE
$8.31¢4 156
1
#8
5BT-22199-00-00
SUPPORT, CHAIN
$24.13¢12 063
1
#9
90119-06094-00
BOLT, WITH WASHER
$6.99¢3 494
1
#10
90387-06737-00
COLLAR
$7.88¢3 938
1
#11
5XT-2217A-00-00
ARM, RELAY
$126.35¢63 175
1
#12
93315-31750-00
BEARING
$38.82¢19 412
1
#13
93109-17071-00
OIL SEAL
$8.03¢4 013
1
#14
90387-126X9-00
COLLAR
$39.98¢19 988
1
#15
90383-17001-00
BUSH, FORMED
$11.16¢5 581
1
#16
93109-17071-00
OIL SEAL
$8.03¢4 013
1
#17
3C5-2217F-01-00
ROD, CONNECTING 1
$19.15¢9 575
1
#18
90387-123V9-00
COLLAR
$22.95¢11 475
1
#19
90101-12015-00
BOLT
$5.51¢2 756
1
#20
95617-12100-00
NUT, U
$4.53¢2 263
1
#21
90201-12699-00
WASHER, PLATE
$7.09¢3 544
1
#22
5JV-22141-00-00
SHAFT, PIVOT
$15.30¢7 650
1
#23
95604-12200-00
NUT, SELF-LOCKING
$5.72¢2 863
1
#24
90201-12045-00
WASHER, PLATE
$6.14¢3 069
1
#25
34X-22311-01-00
CASE, CHAIN
$35.02¢17 513
1
#26
90119-05005-00
BOLT, WITH WASHER
$6.67¢3 338
1
#27
95612-12100-00
NUT, U
$4.88¢2 438
1
#28
90201-12699-00
WASHER, PLATE
$7.09¢3 544
1
#29
90105-12425-00
BOLT, FLANGE
$10.34¢5 169
1
#30
3C5-21668-01-00
LABEL, TIRE
$3.49¢1 744
1
#31
3C5-25839-11-00
LABEL, BRAKE FLUID
$7.95¢3 975
1
