SEAT

⚠️ Verificar CantidadesRevisa el diagrama cuidadosamente. Si tu ensamble requiere múltiples unidades de un mismo número (ej: 6 tornillos idénticos), asegúrate de ajustar la cantidad de piezas manualmente antes de añadirlas al carrito.

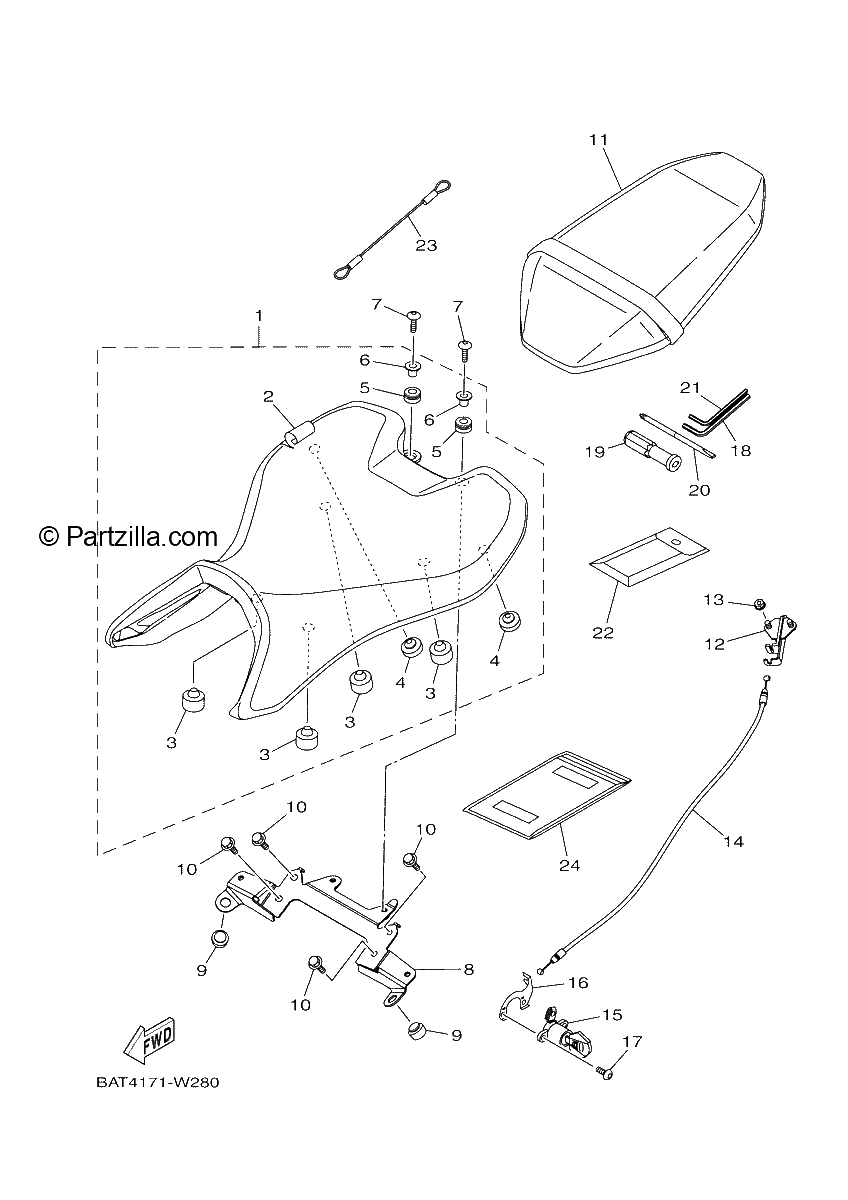

Diagrama de SEAT

Repuestos

#1
B4C-24710-01-00
SINGLE SEAT ASSY (replaces B4C-24710-00-00)
$158.56¢79 281
1
#2
B4C-2470F-01-00
SEAT COVER COMP. (replaces B4C-2470F-00-00)
$75.36¢37 680
1
#3
371-27114-00-00
STOPPER, MAIN STAND
$6.36¢3 180
1
#4
22W-24741-00-00
PAD, SEAT
$8.45¢4 226
1
#5
90480-14604-00
GROMMET
$8.13¢4 065
1
#6
90387-07391-00
COLLAR
$8.49¢4 244
1
#7
90111-06139-00
BOLT,HEX. SOCKET BUTTON
$2.86¢1 432
1
#8
BAT-21131-00-00
BRACKET
$47.35¢23 673
1
#9
157-27114-00-00
STOPPER, MAIN STAND
$9.49¢4 744
1
#10
95D32-06010-00
BLOT, FLANGE DEEP RECESS
$0.68¢339
1
#11
BAT-24750-01-00
TANDEM SEAT ASSY
$148.29¢74 146
1
#12
5BP-F4780-00-00
SEAT LOCK ASSY
$12.28¢6 141
1
#13
95702-06500-00
NUT, FLANGE
$2.24¢1 121
1
#14
BAT-2478E-00-00
CABLE, SEAT LOCK
$7.81¢3 904
1
#15
2TV-W2470-00-00
SEAT LOCK ASSY
$81.60¢40 802
1
#16
23P-2117K-01-00
STAY, LOCK
$6.81¢3 404
1
#17
90149-06030-00
SCREW
$5.88¢2 938
1
#18
14B-28164-00-00
WRENCH, HEXAGON 8
$4.13¢2 064
1
#19
2H7-28151-00-00
GRIP, DRIVER
$6.51¢3 254
1
#20
137-28152-00-00
DRIVER
$3.78¢1 892
1
#21
23P-28164-00-00
WRENCH, HEXAGON 8
$2.99¢1 495
1
#22
BAT-28100-00-00
TOOL KIT
$23.33¢11 667
1
#23
2S3-21398-00-00
HANGER, HELMET
$22.61¢11 305
1
#24
4KG-28186-11-00
POUCH
$7.81¢3 904
1
