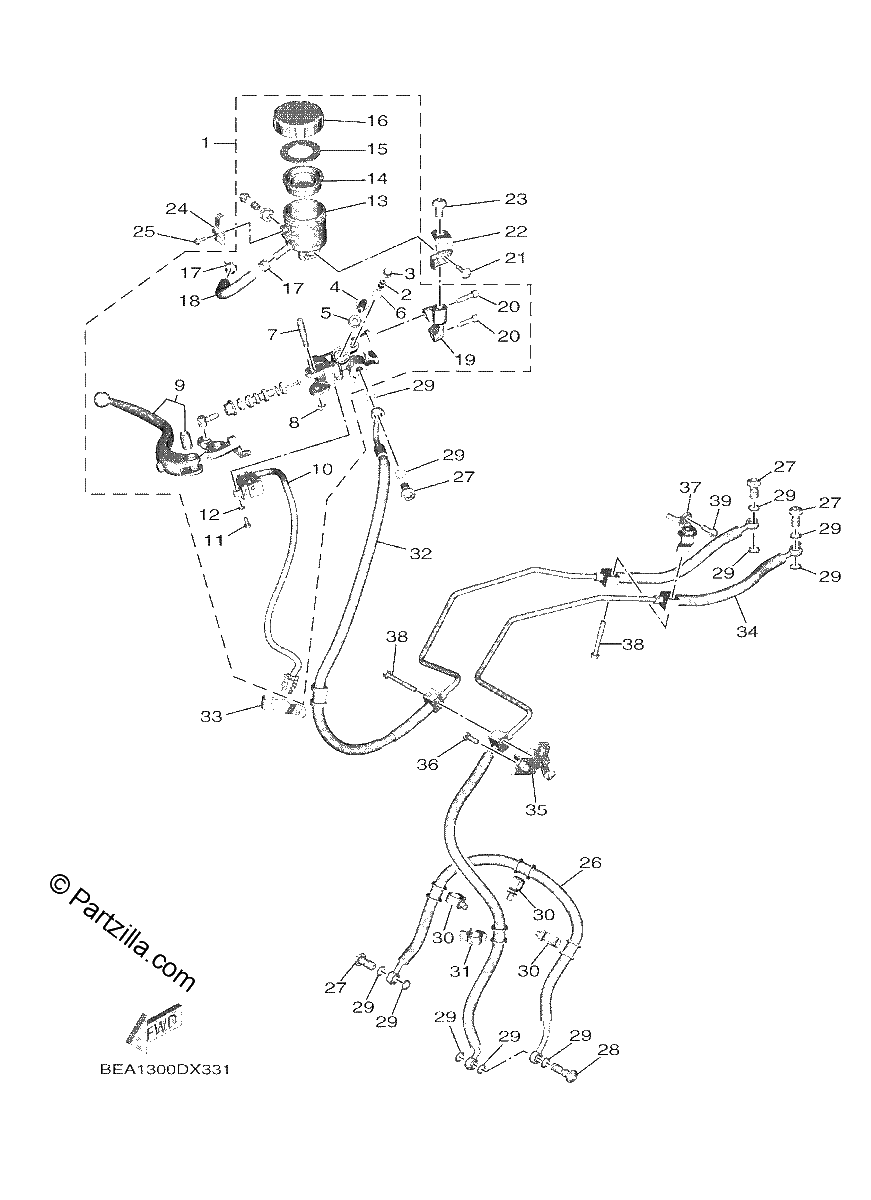

FRONT MASTER CYLINDER
⚠️ Verificar CantidadesRevisa el diagrama cuidadosamente. Si tu ensamble requiere múltiples unidades de un mismo número (ej: 6 tornillos idénticos), asegúrate de ajustar la cantidad de piezas manualmente antes de añadirlas al carrito.
Repuestos
#1
MASTER CYLINDER ASSY
$345.00¢172 500
#2
SCREW, BLEED
$8.26¢4 129
#3
CAP
$12.79¢6 394
#4
JOINT
$4.06¢2 030
#5
O-RING
$10.48¢5 238
#6
SEAL 1
$1.77¢886
#7
BOLT, LEVER
$6.88¢3 439
#8
NUT,U (replaces 95602-06100-00)
$2.63¢1 317
#9
LEVER SET
$51.32¢25 662
#10
FRONT STOP SWITCH ASSY
$128.52¢64 262
#11
SCREW, PAN HEAD
$3.06¢1 529
#12
WASHER, PLATE
$1.10¢552
#13
TANK, RESERVOIR
$60.89¢30 446
#14
DIAPHRAGM, RESERVOIR
$30.90¢15 450
#15
BUSH, DIAPHRAGM
$4.13¢2 064
#16
CAP, RESERVOIR
$17.39¢8 694
#17
CLIP
$6.43¢3 214
#18
HOSE, RESERVOIR
$17.42¢8 711
#19
BRACKET, MASTER CYLINDER
$47.84¢23 920
#20
BOLT (3JB) (replaces 91312-06020-00)
$2.24¢1 121
#21
BOLT, HEX. SOCKET BUTTON
$7.44¢3 720
#22
STAY
$20.87¢10 436
#23
BOLT, HEXAGON SOCKET BUTTON
$4.60¢2 300
#24
HOLDER
$8.21¢4 105
#25
SCREW
$6.99¢3 496
#26
HOSE, BRAKE 1
$51.95¢25 973
#27
BOLT, UNION
$4.06¢2 030
#28
BOLT, UNION
$17.45¢8 723
#29
GASKET
$7.72¢3 858
#30
CLAMP
$7.59¢3 795
#31
CLAMP
$3.22¢1 610
#32
BRAKE HOSE ASSY
$187.42¢93 708
#33
HOLDER, BRAKE HOSE 1
$8.07¢4 036
#34
HOSE, BRAKE
$135.37¢67 683
#35
BRACKET, REFLECTOR 1
$15.87¢7 935
#36
BOLT, FLANGE
$3.65¢1 823
#37
BRACKET
$15.63¢7 814
#38
BOLT, FLANGE
$2.71¢1 357
#39
BOLT, FLANGE
$3.65¢1 823
